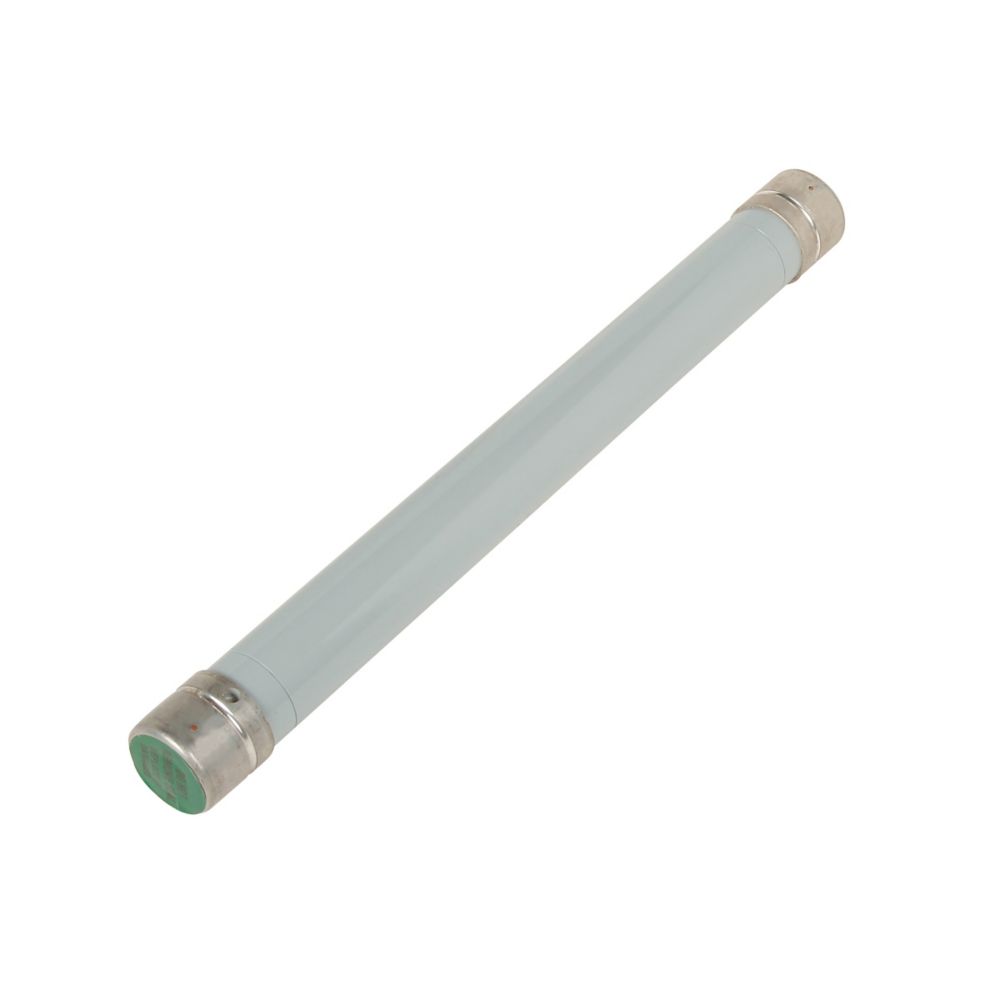

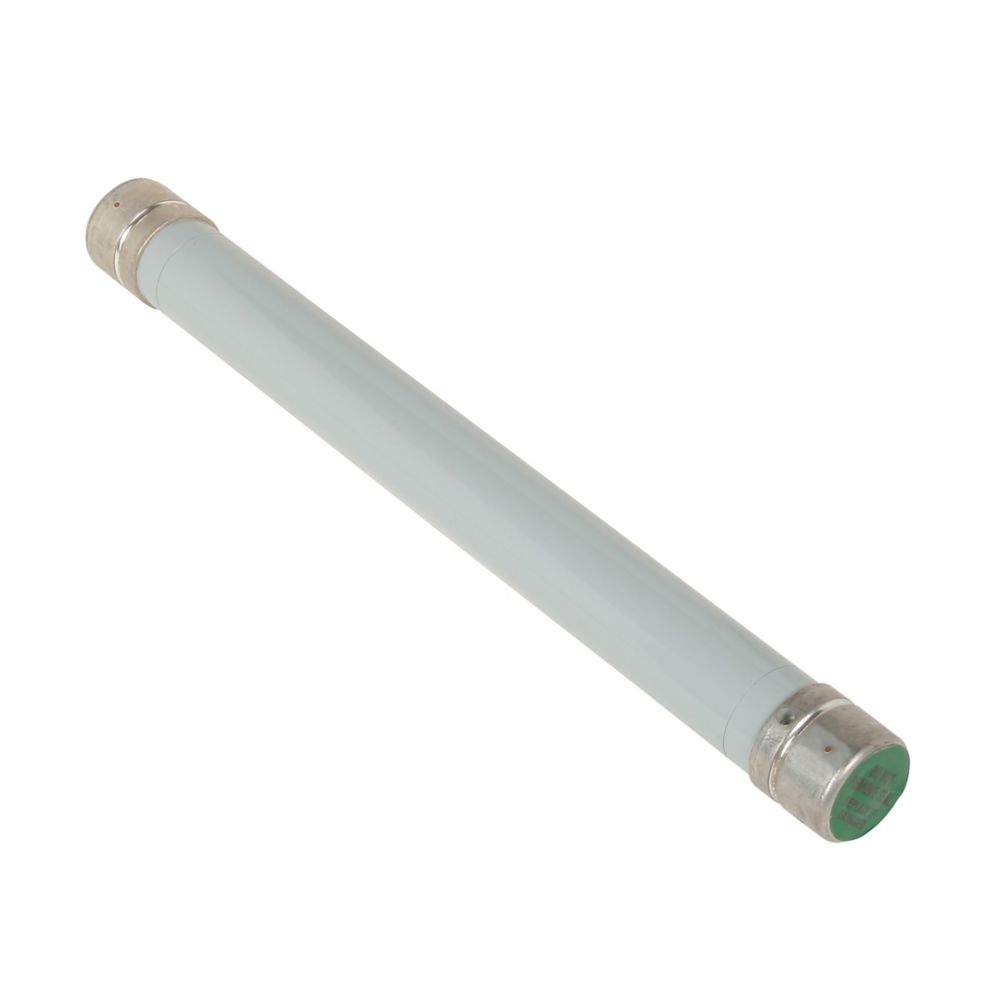

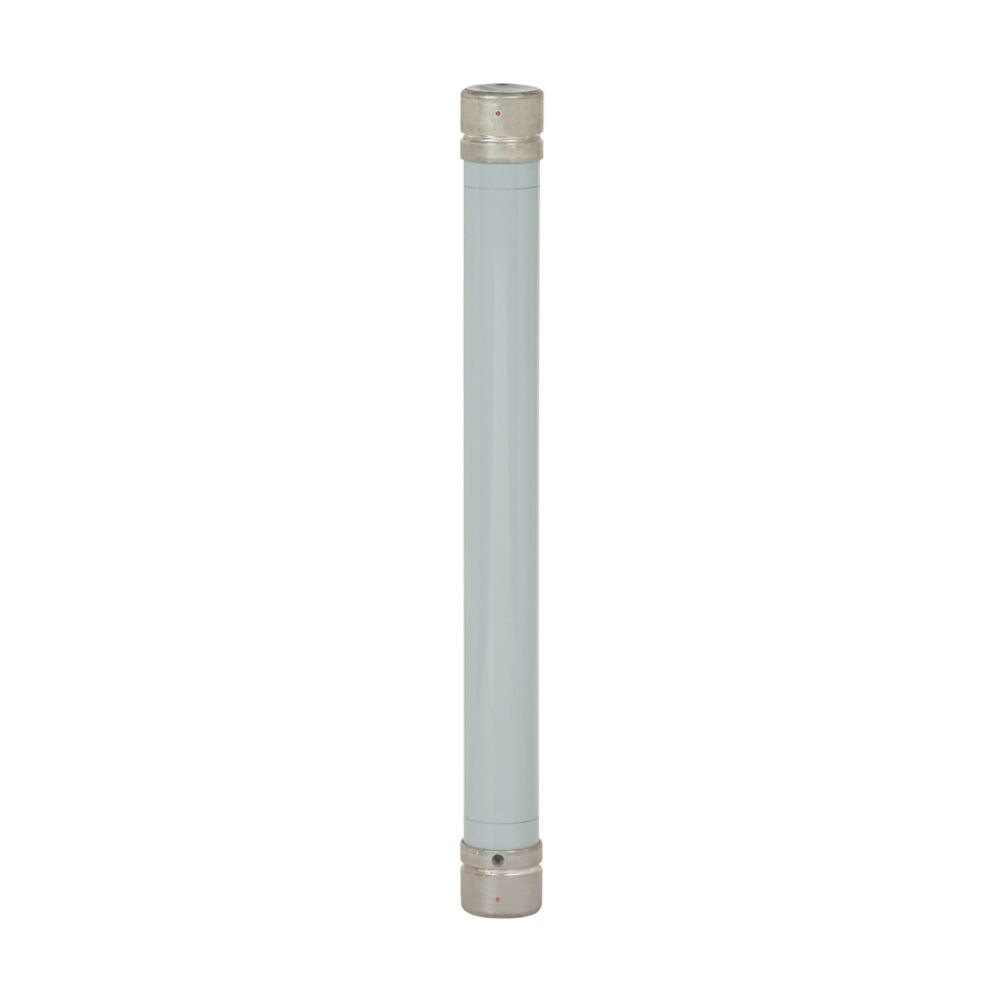

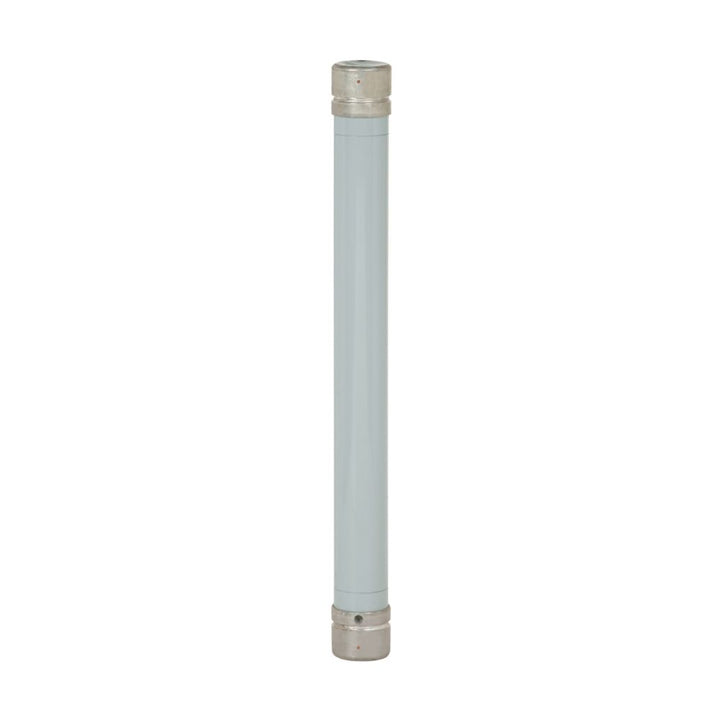

Eaton 38DBA1-80E - Medium Voltage Fuse 80A 34.5kV

Price
Regular price $0.00
Regular price $2,840.91 Sale price $0.00
Save $2,840.91
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Eaton 38DBA1-80E is a medium voltage power distribution fuse designed for overcurrent protection in high-voltage electrical systems. It provides a continuous current rating of 80A and is rated for 34.5kV applications, featuring a single-barrel ferrule connection and a standard velocity design for reliable interruption. The fuse is constructed with a robust 28.5-inch length and weighs 5 lb, meeting the stringent IEEE Std. C37.41 certification for medium voltage expulsion fuses. As a Class E fuse with an interrupting rating of 5kA at 38kV, it is engineered for demanding industrial applications such as transformer protection, feeder circuits, and utility power distribution networks.

Key Features & Specifications
  • Type: DBA1, Medium Voltage Expulsion Fuse, Single Barrel
  • Voltage Rating: 34500V
  • Current Rating: 80A
  • Dimensions: 28.5 in x 1.7 in x 1.7 in (L x H x W)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer Protection, Feeder Circuits, Utility Distribution
  • Class Rating: E
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: Standard
  • AIC rating: 5kA@38kV
  • Weight: 5 lb


Product Identification
  • UPC: 78667024372
  • GTIN: 00786670243724
