Bussmann 38CAVH0.5E - Medium Voltage Fuse 0.5A 38kV (Class E)

Price
Regular price $933.98
Regular price $815.80 Sale price $933.98
Save $-118.18
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

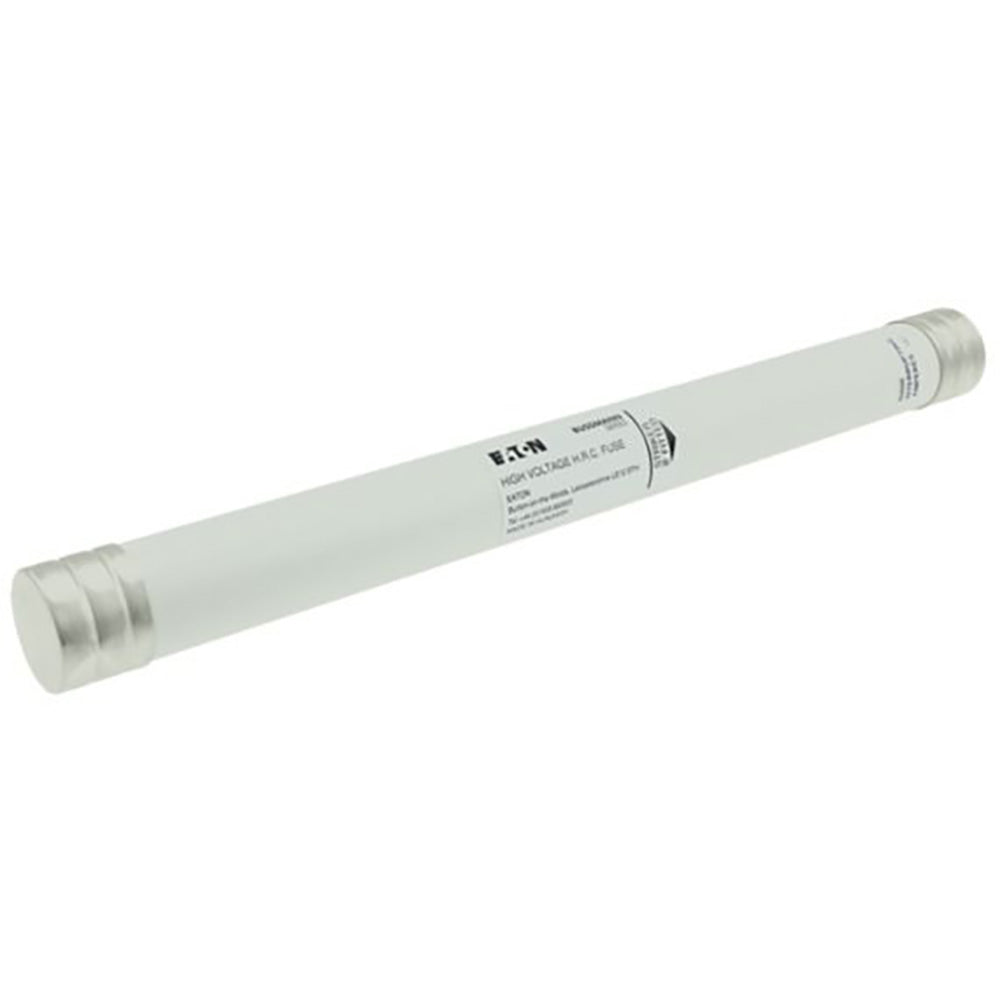

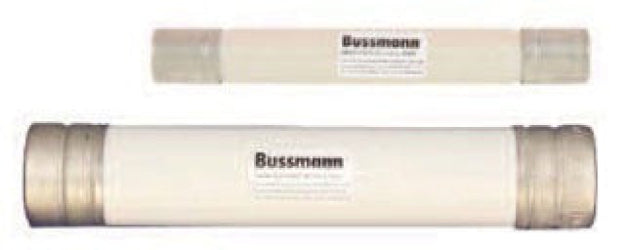

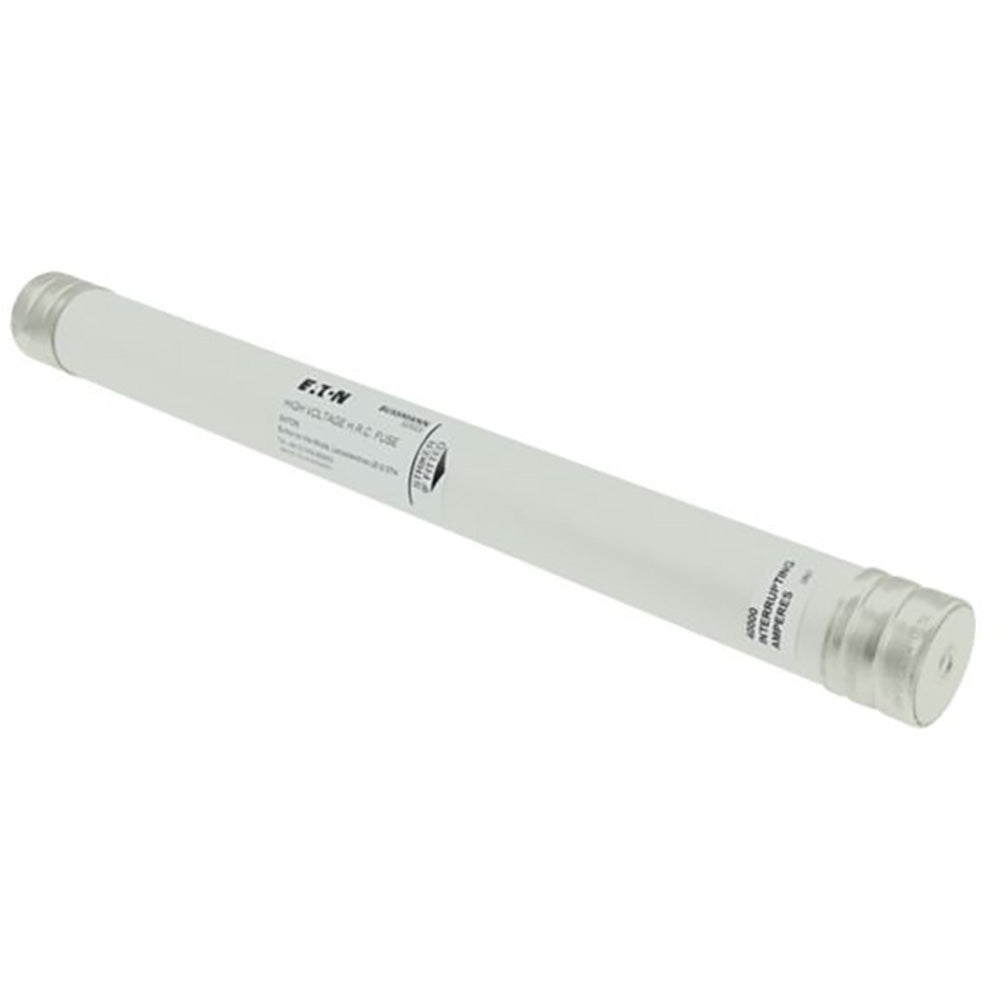

Bussmann 38CAVH0.5E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides a 0.5A current rating and a 38kV voltage rating for reliable overcurrent and short-circuit interruption. The fuse features a single-barrel, cylindrical construction with dimensions of 439 mm x 41 mm x 41 mm, a 1.63-inch diameter, and a clip center spacing of 16.12 inches, weighing 2.76 lb. It is certified to ANSI C37-41 and IEC 60282-1 standards, ensuring compliance with international safety and performance requirements. Typical applications include protecting transformers, motors, and feeders in utility and industrial medium-voltage switchgear.

Key Features & Specifications
  • Type: CAV Class E, medium voltage current-limiting fuse, single barrel
  • Voltage Rating: 38000V AC
  • Current Rating: 0.5A
  • Dimensions: 439 mm (Length) x 41 mm (Height) x 41 mm (Width)
  • Standards: Certified to ANSI C37-41, IEC 60282-1
  • Applications: Protection for transformers, motors, and feeders in industrial power distribution
  • AIC rating: 40kA at 38kV
  • Class Rating: E
  • Barrels: 1
  • Diameter: 1.63 inches
  • Clip Center: 16.12 inches
  • Weight: 2.76 lb
  • Country of Origin: United Kingdom


Product Identification
  • UPC: 051712843669
  • GTIN: 00051712843669
