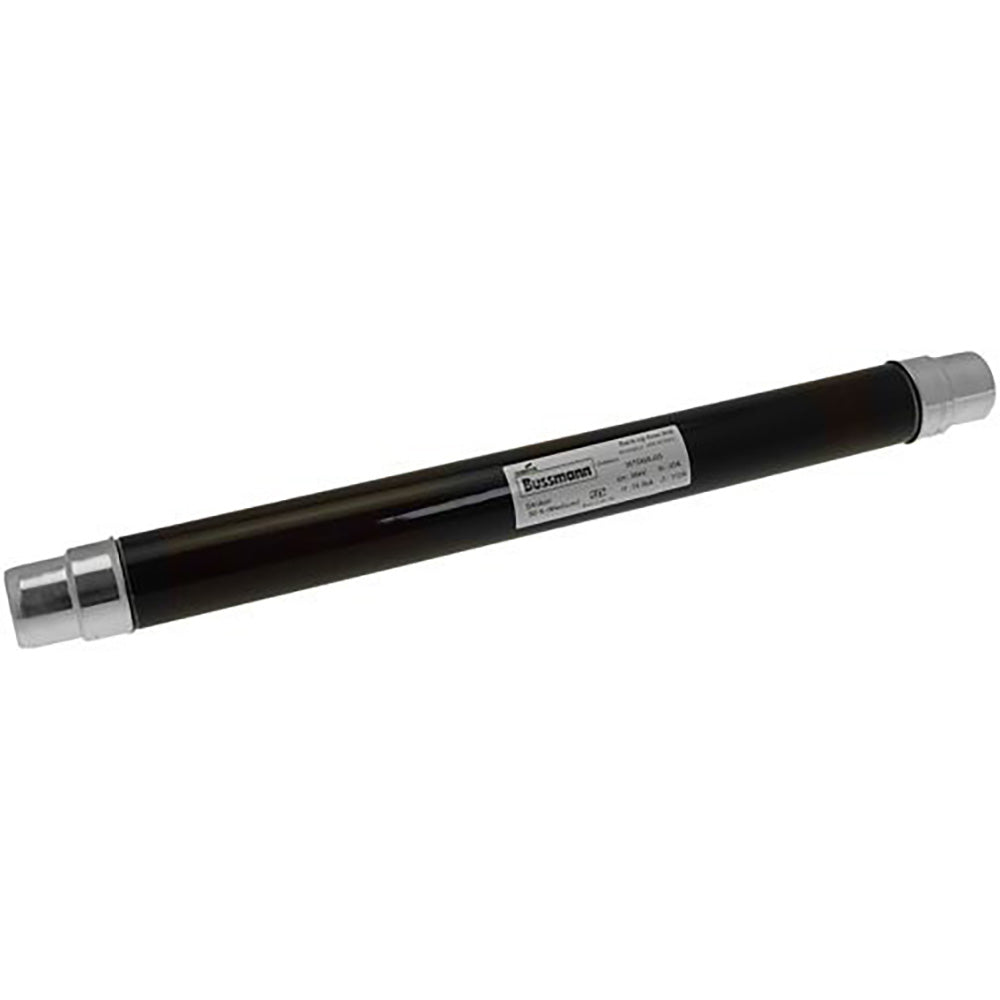

Bussmann 36TDQSJ25 - Medium Voltage Fuse 25A 36kV (35.5kA AIC)

Bussmann
Price
Save $-1,421.22
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann 36TDQSJ25 is a medium-voltage, current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 25A current rating and a 36kV voltage rating, with a high interrupting capacity of 35.5kA. The fuse is constructed as a single-barrel, DIN-type device with Class R dimensions of 537 mm in length, 54 mm in height, and 51 mm in width, weighing 6.67 lb. It complies with industry standards for medium-voltage protection and is typically applied in switchgear, motor starters, and transformer circuits requiring reliable overcurrent and short-circuit protection.

Key Features & Specifications
  • Type: Medium-voltage, current-limiting, DIN-style fuse with a single barrel
  • Voltage Rating: 36000V AC
  • Current Rating: 25A
  • Dimensions: 537 mm x 54 mm x 51 mm (L x H x W)
  • Standards: DIN
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • Class Rating: R
  • AIC rating: 35.5kA at 36kV
  • Barrels: 1
  • Diameter: 2 inches
  • Weight: 6.67 lb


Product Identification
  • UPC: 005171218644
  • GTIN: 00051712186445
