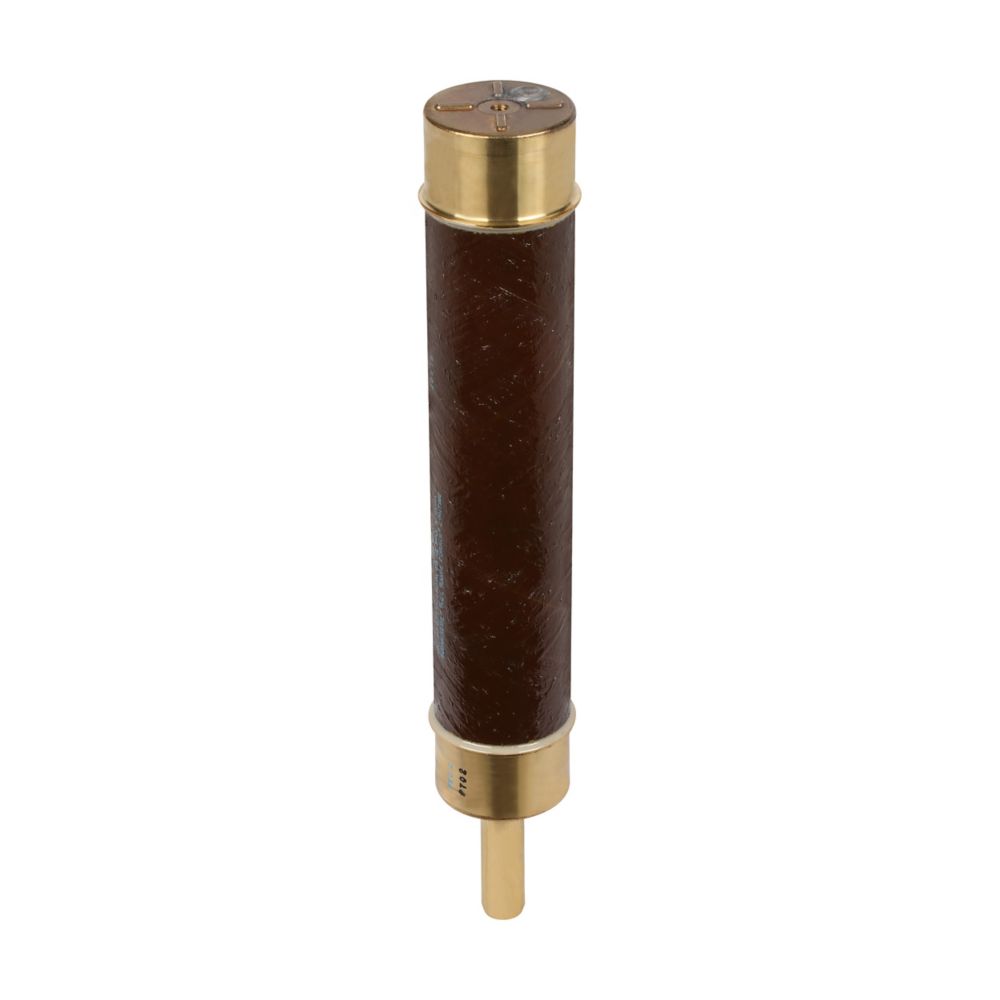

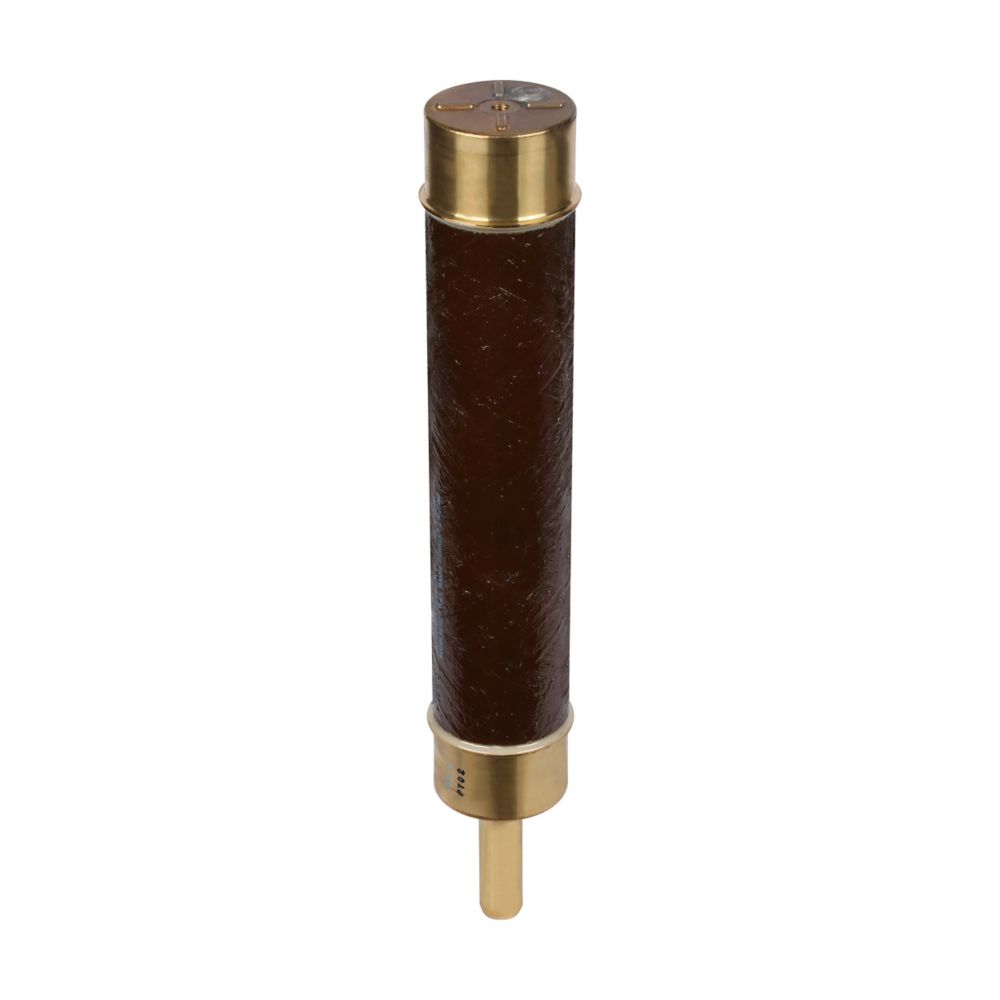

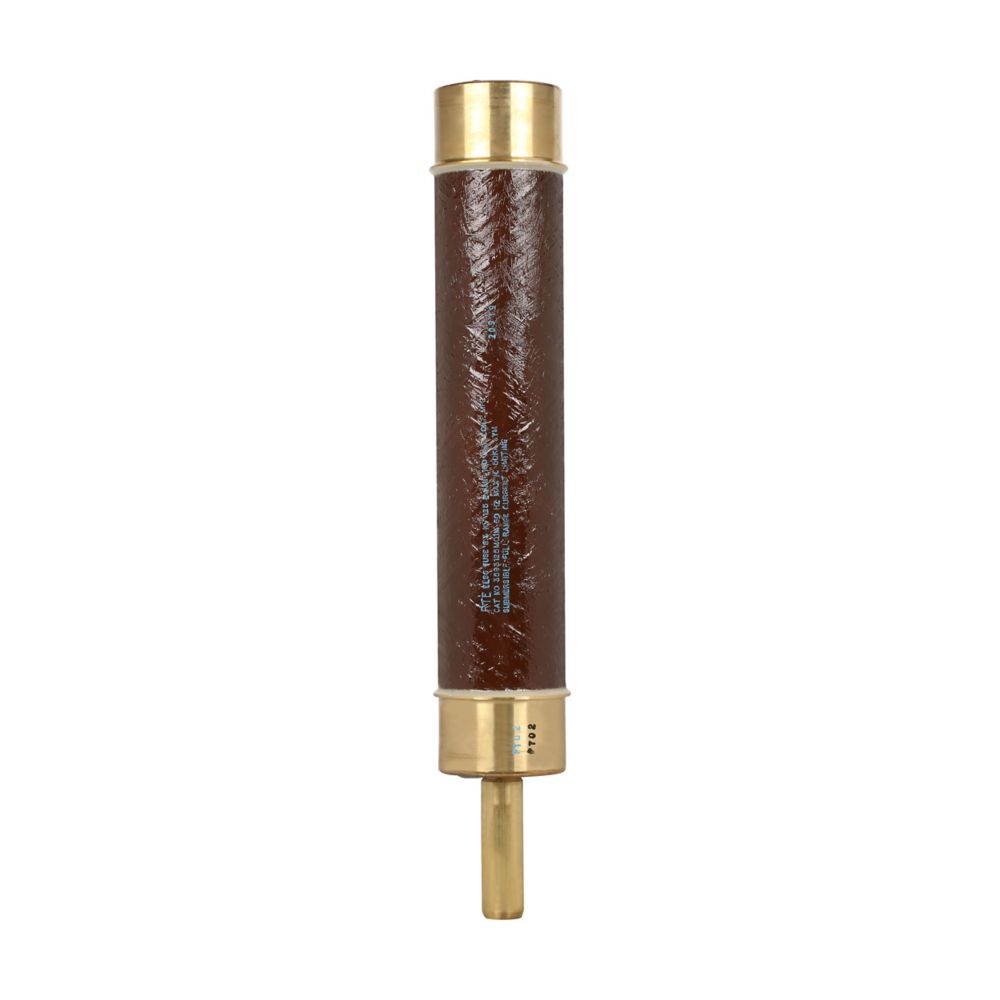

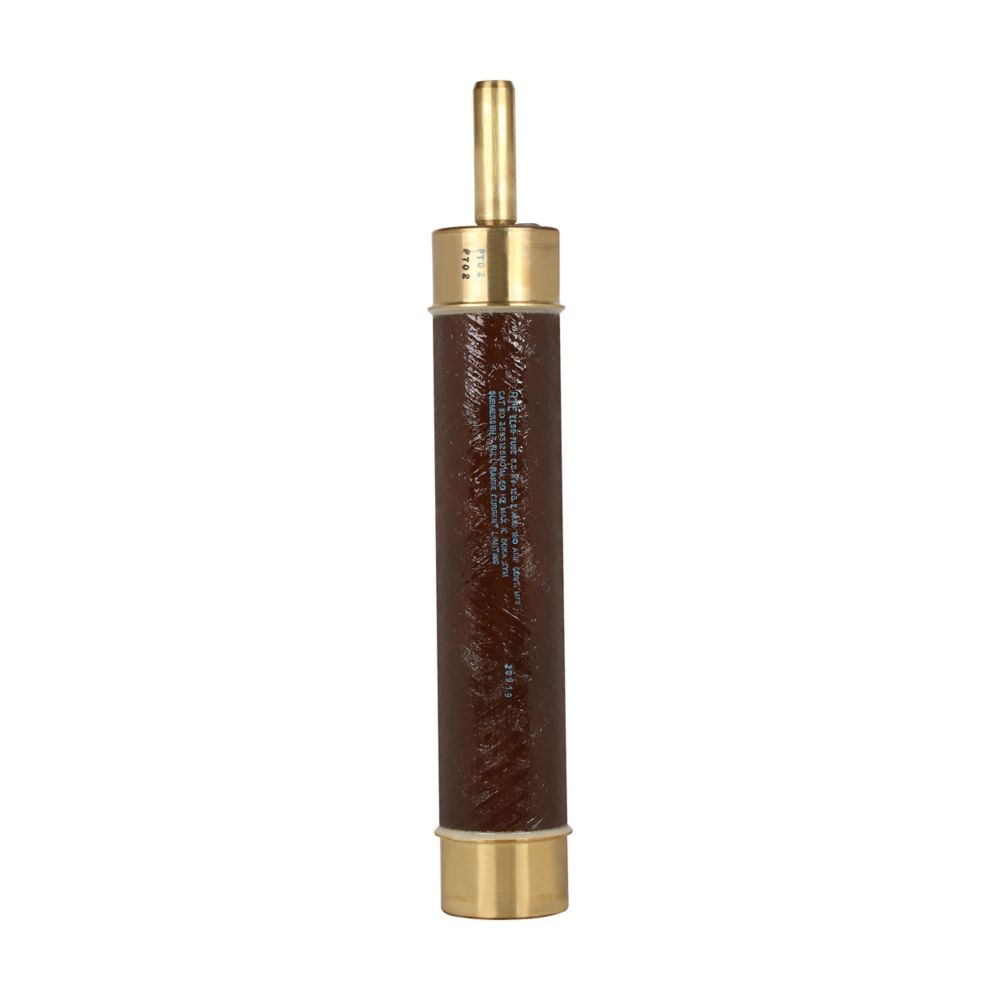

Eaton 3595125M01M - Medium Voltage Fuse Class E 125A (23kV)

Eaton 3595125M01M is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. This Class E fuse features a 125A current rating and 23kV voltage rating, providing reliable overcurrent protection for medium voltage applications. The single-barrel construction with special connection configuration ensures secure installation in compatible switchgear and motor control centers. Engineered to meet industry standards for medium voltage protection, this 17 lb fuse is typically deployed in industrial plants, utility substations, and large commercial facilities where robust circuit protection is required for motors, transformers, and distribution equipment.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating, single-barrel construction
• Voltage Rating: 23000V AC
• Current Rating: 125A
• Dimensions: Class E standard configuration
• Standards: Industrial medium voltage protection standards
• Applications: Industrial power distribution, motor protection, transformer circuits
• Class Rating: E
• Connection: Special
• Barrels: 1
• Weight: 17 lb
• Item Subcategory: Medium Voltage

Product Identification

• Manufacturer Part Number: 3595125M01M
