Eaton 3594120M83M - Medium Voltage Fuse 15.5kV 120A (Class E)
Eaton 3594120M83M - Medium Voltage Fuse 15.5kV 120A (Class E)
3594120M83M Eaton Medium Voltage - Essential Electric Supply
3594120M83M Eaton Medium Voltage - Essential Electric Supply
Eaton 3594120M83M - Medium Voltage Fuse 15.5kV 120A (Class E)
Eaton 3594120M83M - Medium Voltage Fuse 15.5kV 120A (Class E)

Eaton 3594120M83M - Medium Voltage Fuse 15.5kV 120A (Class E)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

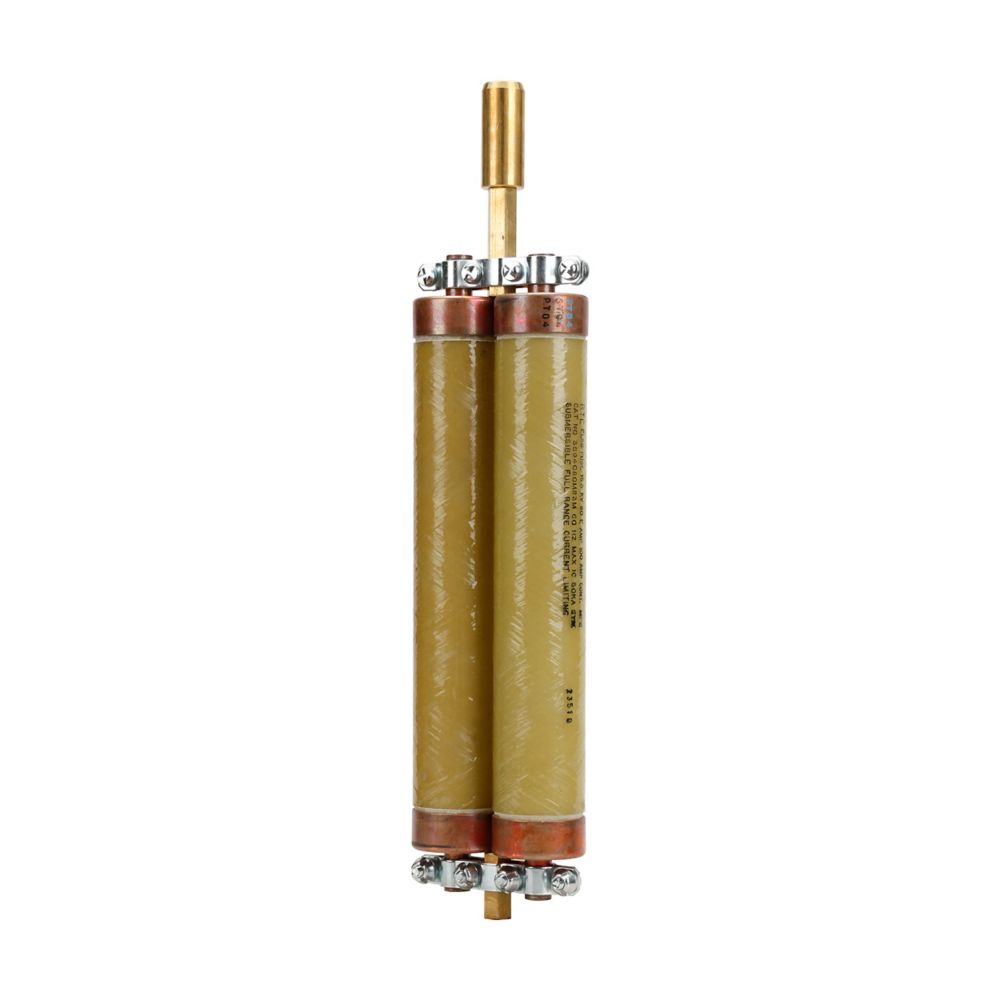

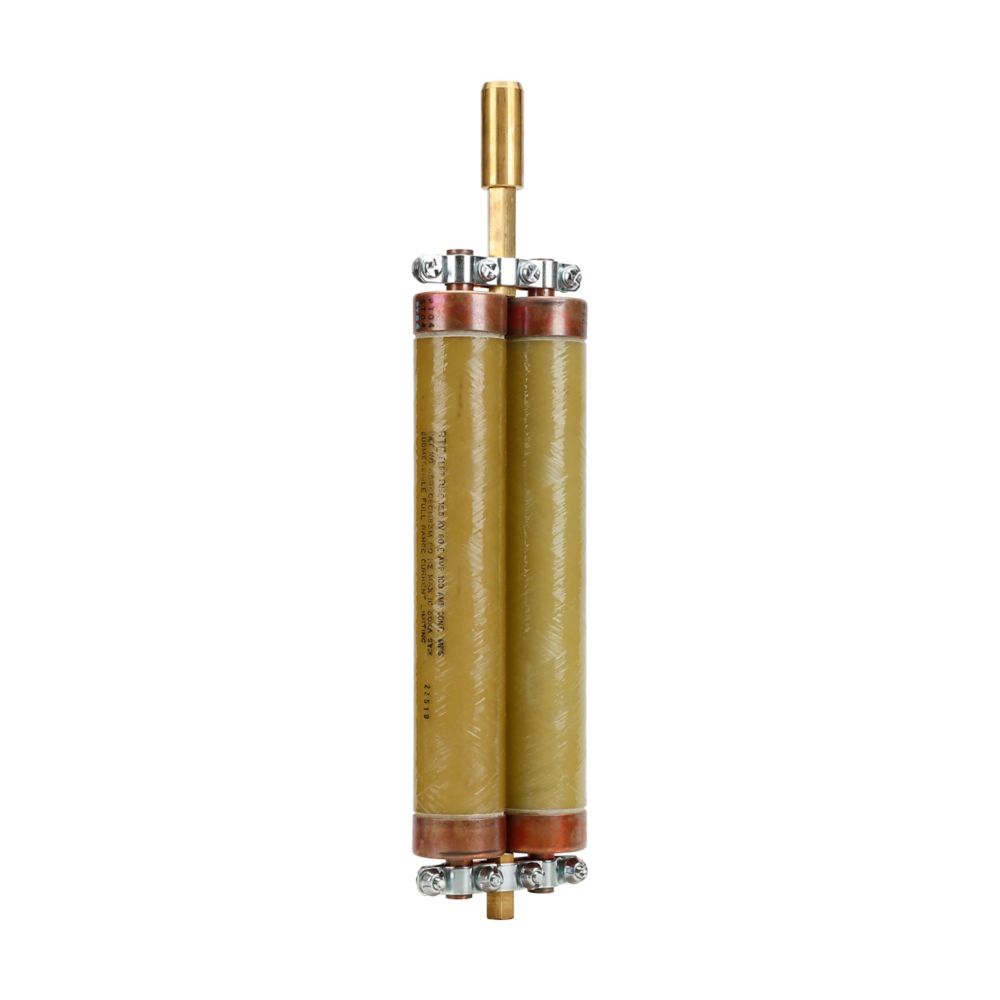

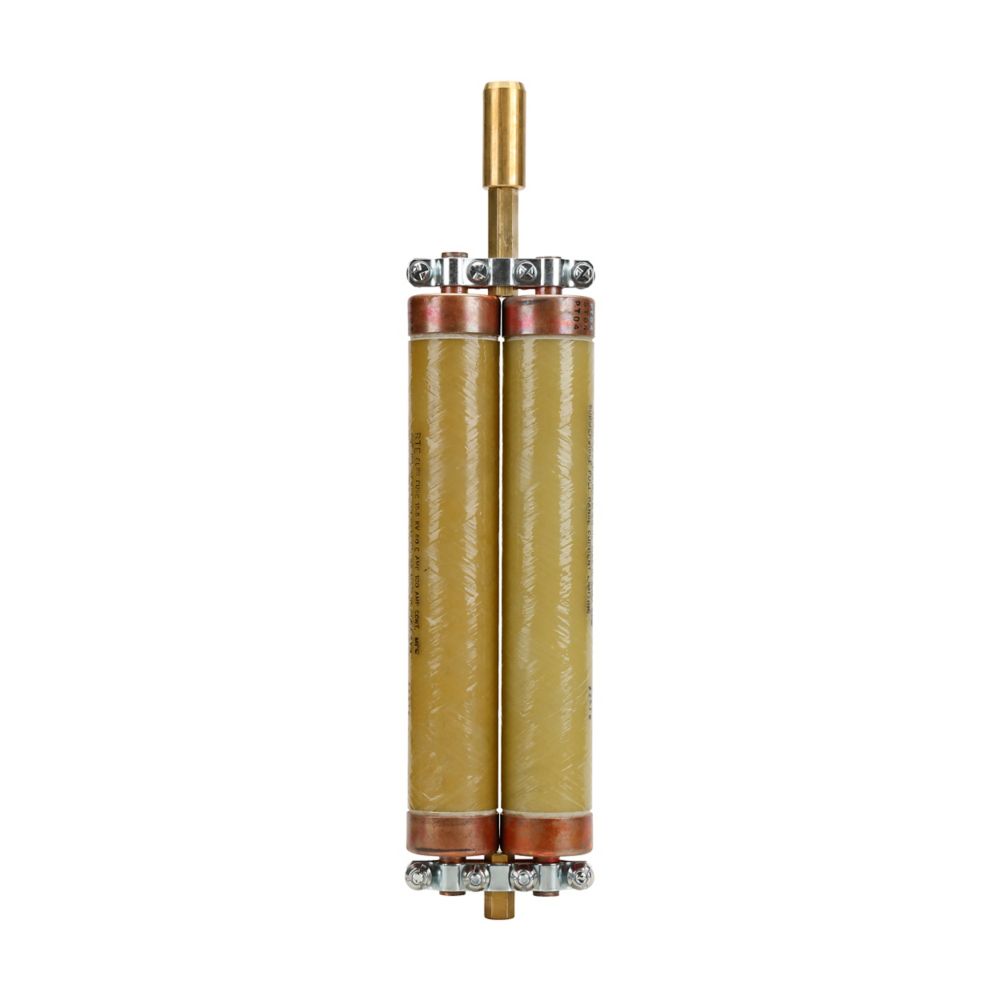

Eaton 3594120M83M is a medium voltage current-limiting full-range fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides reliable overcurrent and short-circuit protection with a voltage rating of 15.5kV and a continuous current rating of 120A. The fuse features a robust two-barrel wet well connection design, constructed with a 4.3-inch diameter and overall dimensions of 19.1 x 4.3 x 2.2 inches (L x H x W) for secure installation. As a Class E-rated fuse, it meets stringent industry standards for medium-voltage applications, making it suitable for protecting transformers, motors, and feeders in utility and industrial substations.

Key Features & Specifications
  • Type: Current-limiting full-range fuse, medium voltage, two-barrel wet well connection
  • Voltage Rating: 15500V
  • Current Rating: 120A
  • Dimensions: 19.1 in (Length) x 4.3 in (Height) x 2.2 in (Width)
  • Weight: 6.173 lb
  • Diameter: 4.3 in
  • Class Rating: E
  • Barrels: 2
  • Connection: Wet Well
  • Section: Current limiting full range fuse
  • Item Subcategory: Medium Voltage


Product Identification
  • UPC: 194006033527
