Eaton 3594100M83M - Medium Voltage Fuse 15.5kV 100A Class E

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

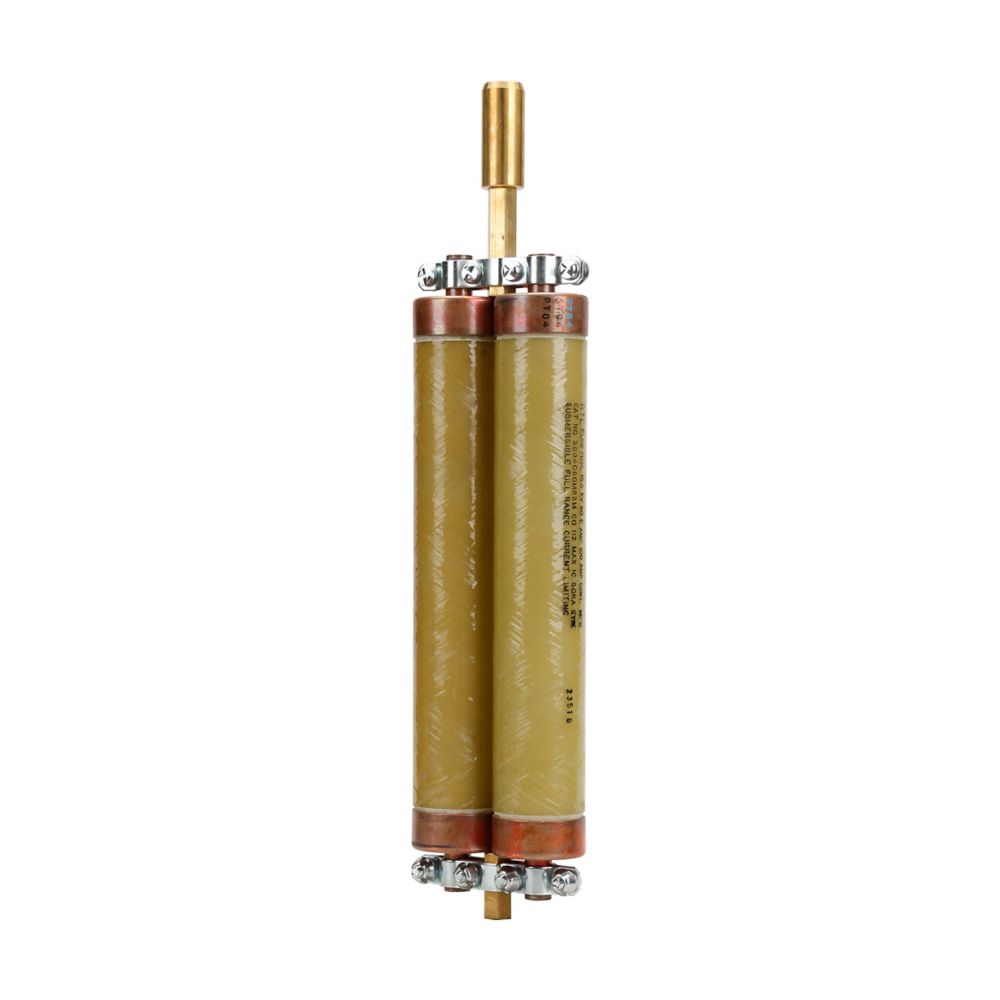

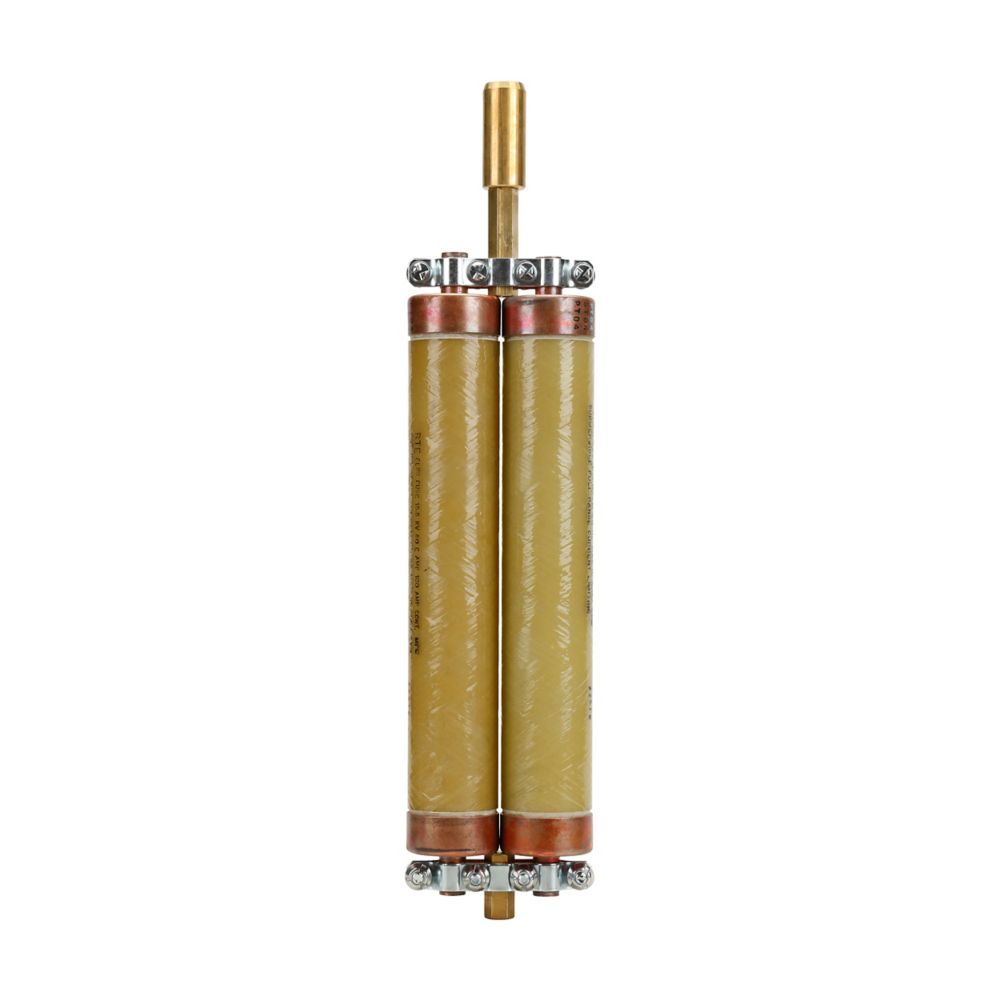

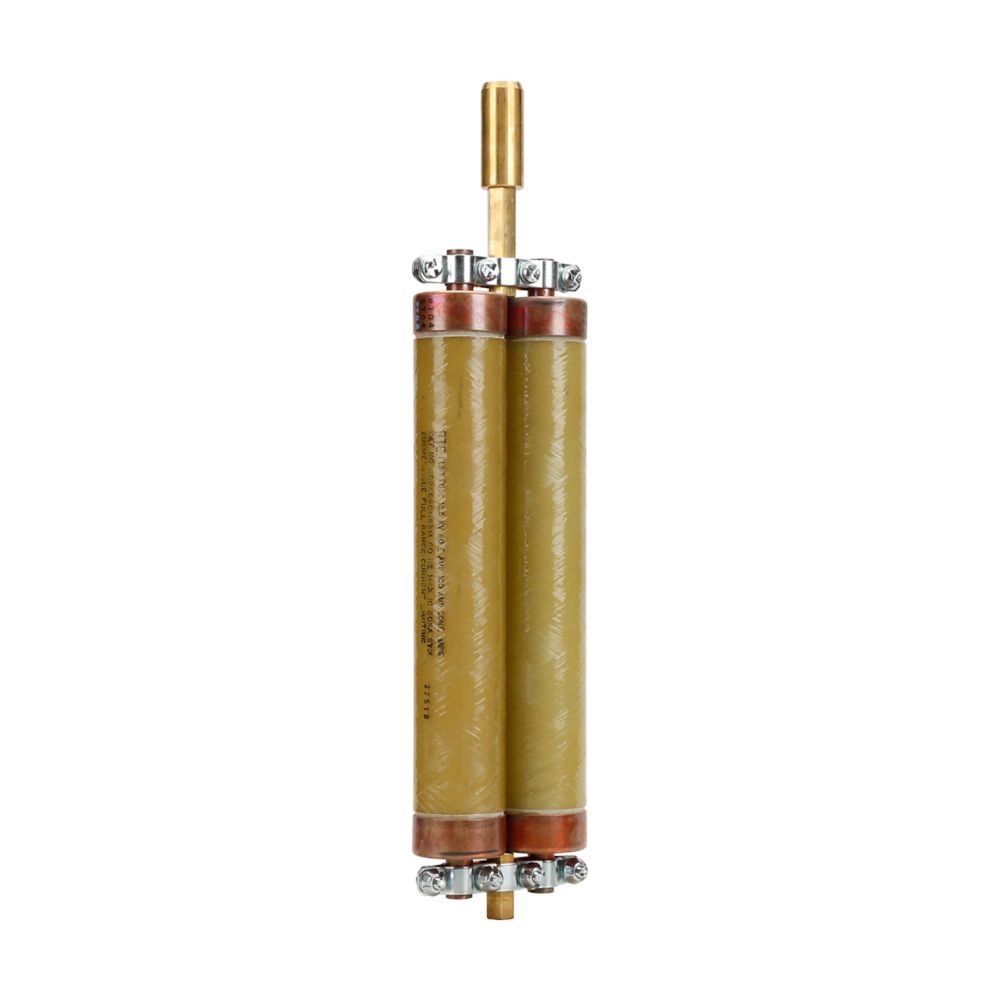

Eaton 3594100M83M is a medium voltage, current-limiting full-range fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides reliable overcurrent and short-circuit protection with a voltage rating of 15.5kV and a continuous current rating of 100A. The fuse features a robust construction with a 4.3-inch diameter, a two-barrel wet well connection, and an overall dimension of 19.1 x 4.3 x 2.2 inches, weighing 6.173 lb. As a Class E-rated fuse, it meets stringent industry standards for medium-voltage applications, ensuring safe operation in demanding environments such as utility substations, industrial plants, and large commercial facilities.

Key Features & Specifications
  • Type: Current-limiting full-range fuse, medium voltage, two-barrel construction
  • Voltage Rating: 15500V
  • Current Rating: 100A
  • Dimensions: 19.1 in (L) x 4.3 in (H) x 2.2 in (W)
  • Weight: 6.173 lb
  • Diameter: 4.3 in
  • Class Rating: E
  • Connection: Wet Well
  • Barrels: 2
  • Item Subcategory: Medium Voltage


Product Identification
  • UPC: 194006033510
