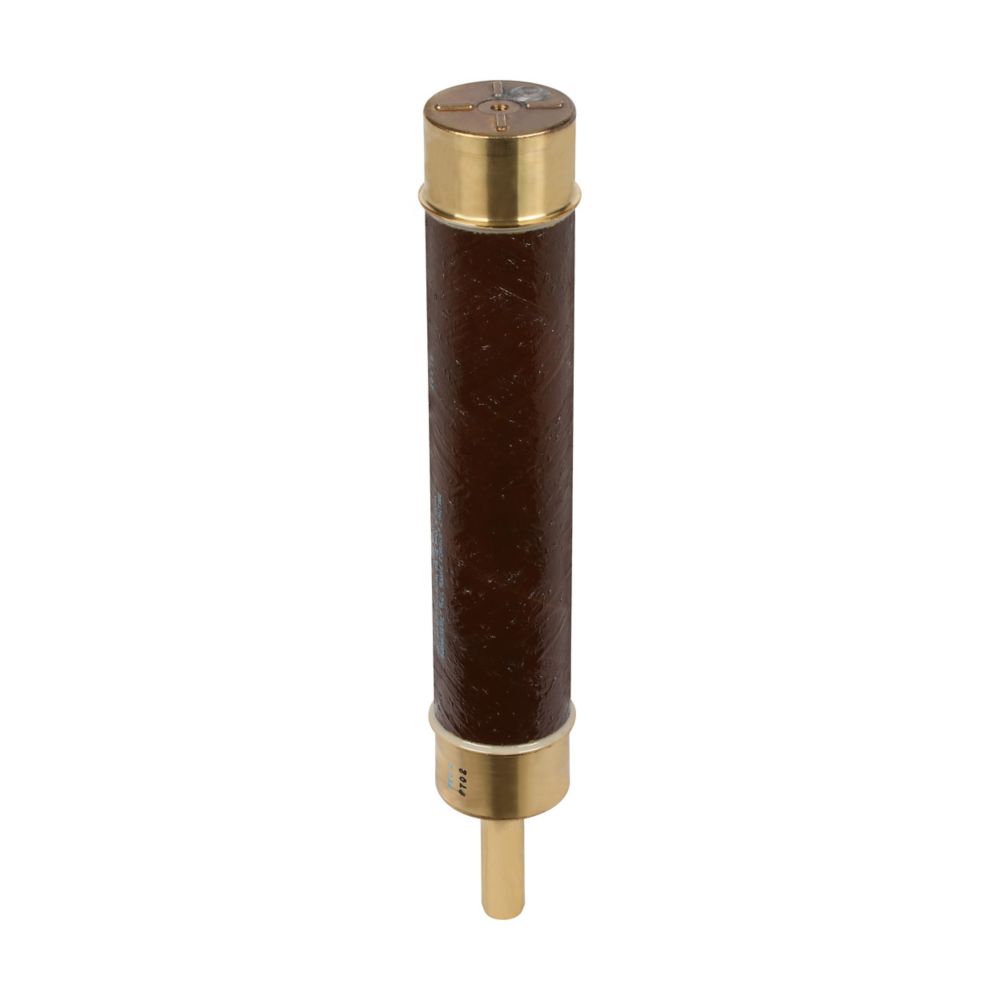

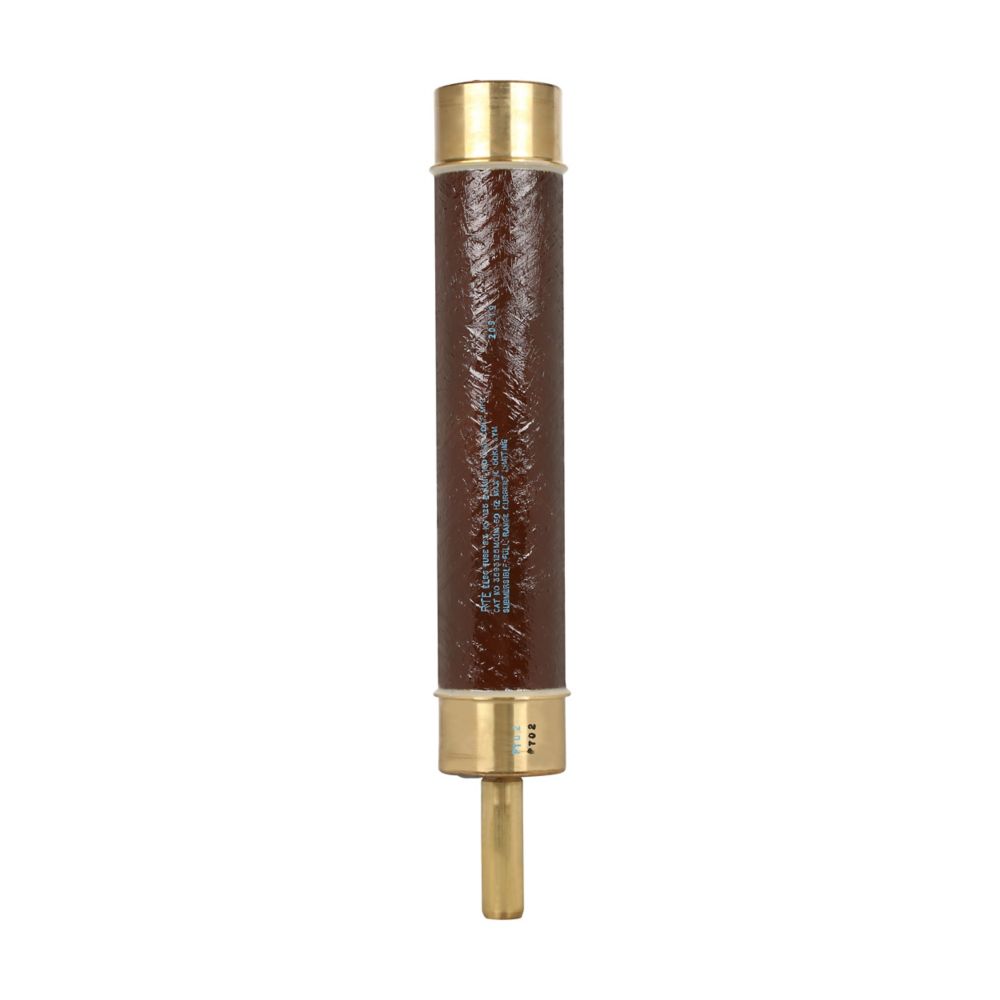

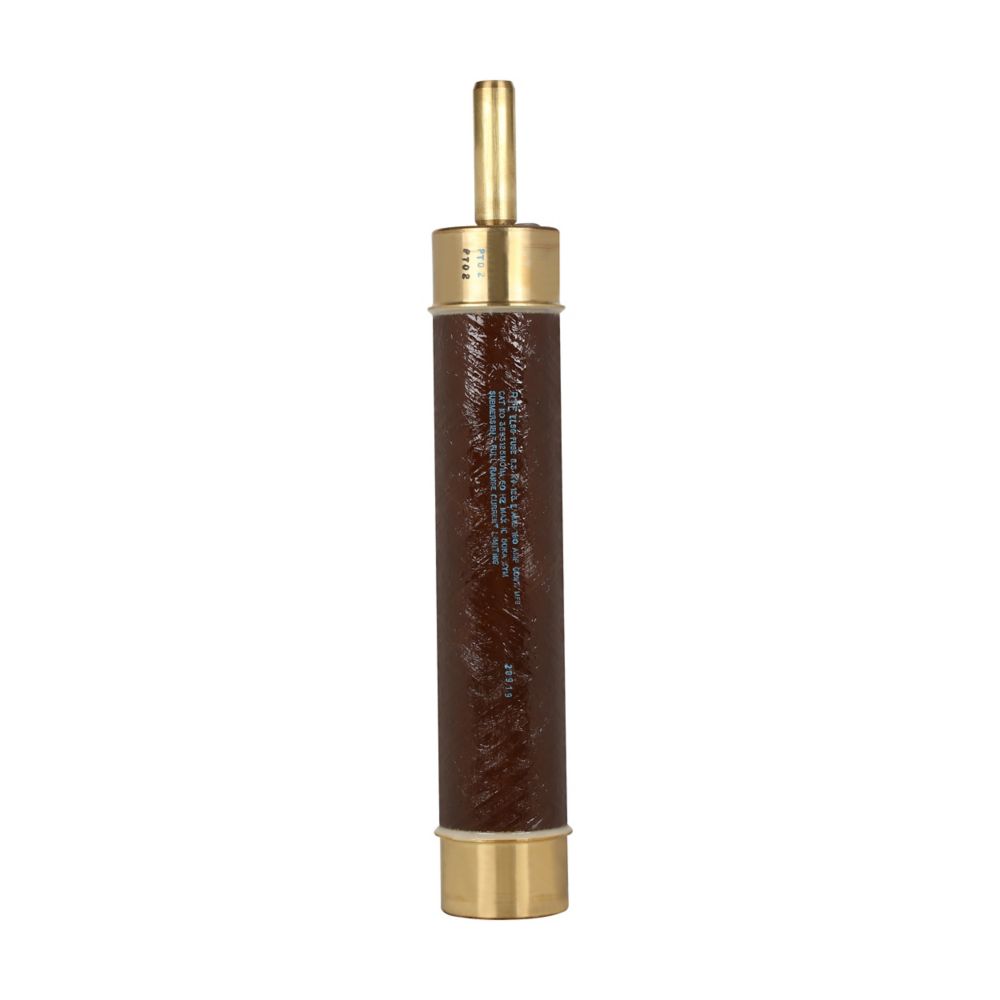

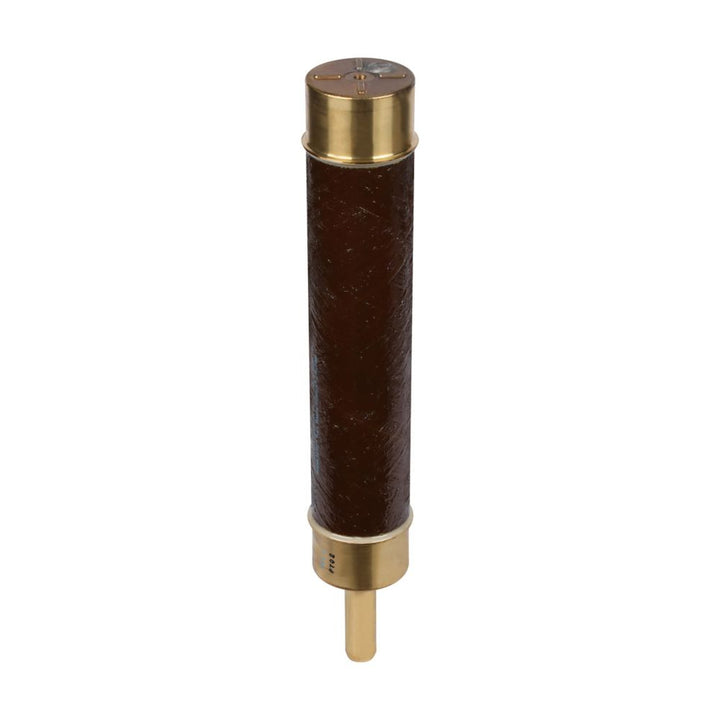

Eaton 3594100M01M - Medium Voltage Fuse 15.5kV (Class E 100A Wet Well Design)

Eaton 3594100M01M is a medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. This Class E-rated fuse operates at 15,500V AC with a 100A current rating, featuring a robust wet well connection and dual-barrel construction for reliable arc interruption. The 4.3-inch diameter unit weighs 13 lb, built with durable materials to withstand harsh electrical environments while meeting industry standards for medium-voltage applications. Its design ensures protection for transformers, capacitors, and motor circuits in utility and heavy industrial settings.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with dual-barrel wet well design
• Voltage Rating: 15,500V AC
• Current Rating: 100A
• Dimensions: 4.3" diameter
• Standards: Class E rating
• Applications: Transformer protection, capacitor banks, industrial motor circuits
• Connection: Wet Well
• Barrels: 2
• Weight: 13 lb
