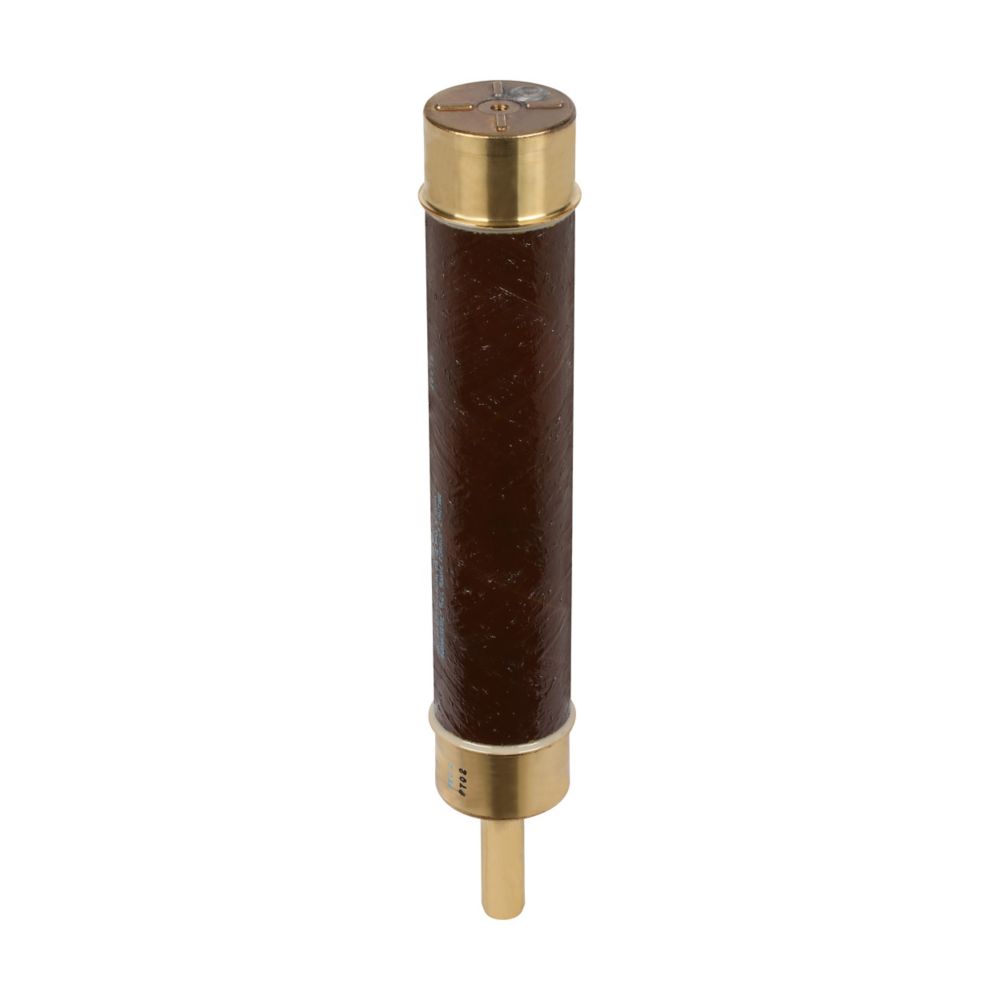

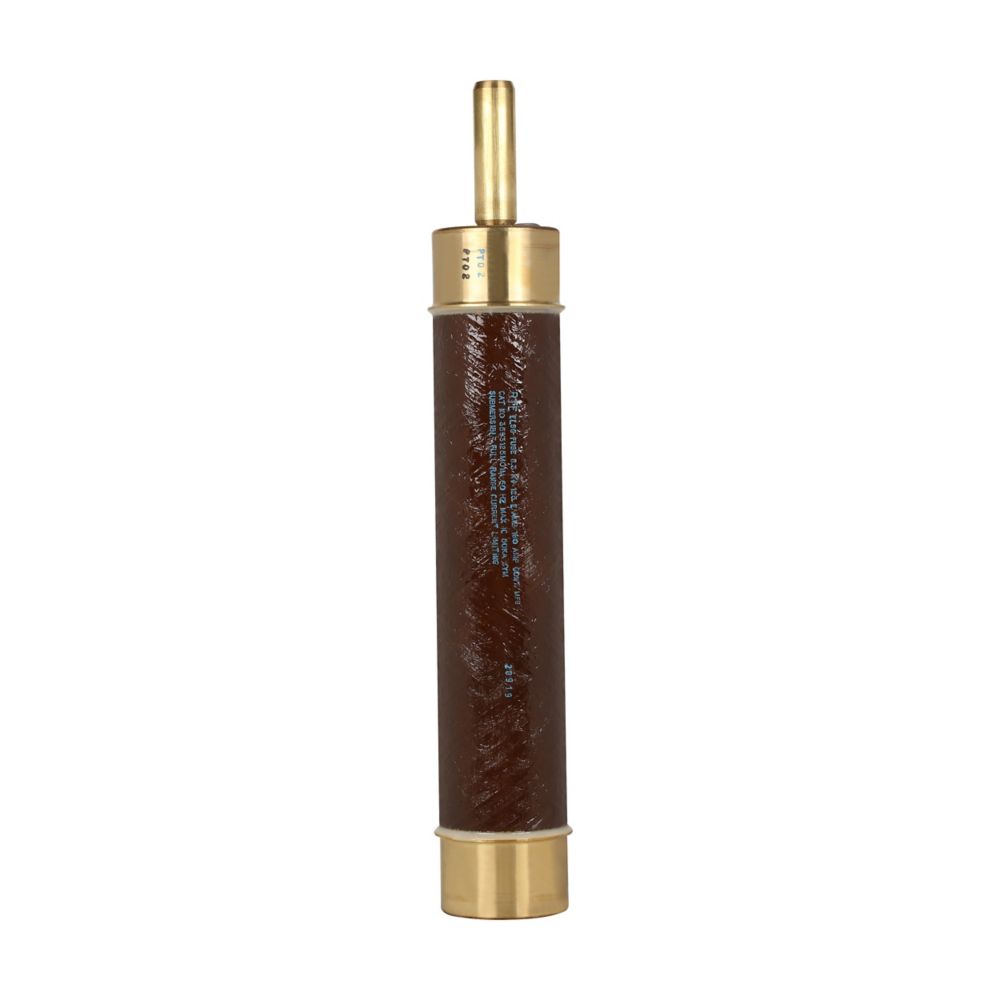

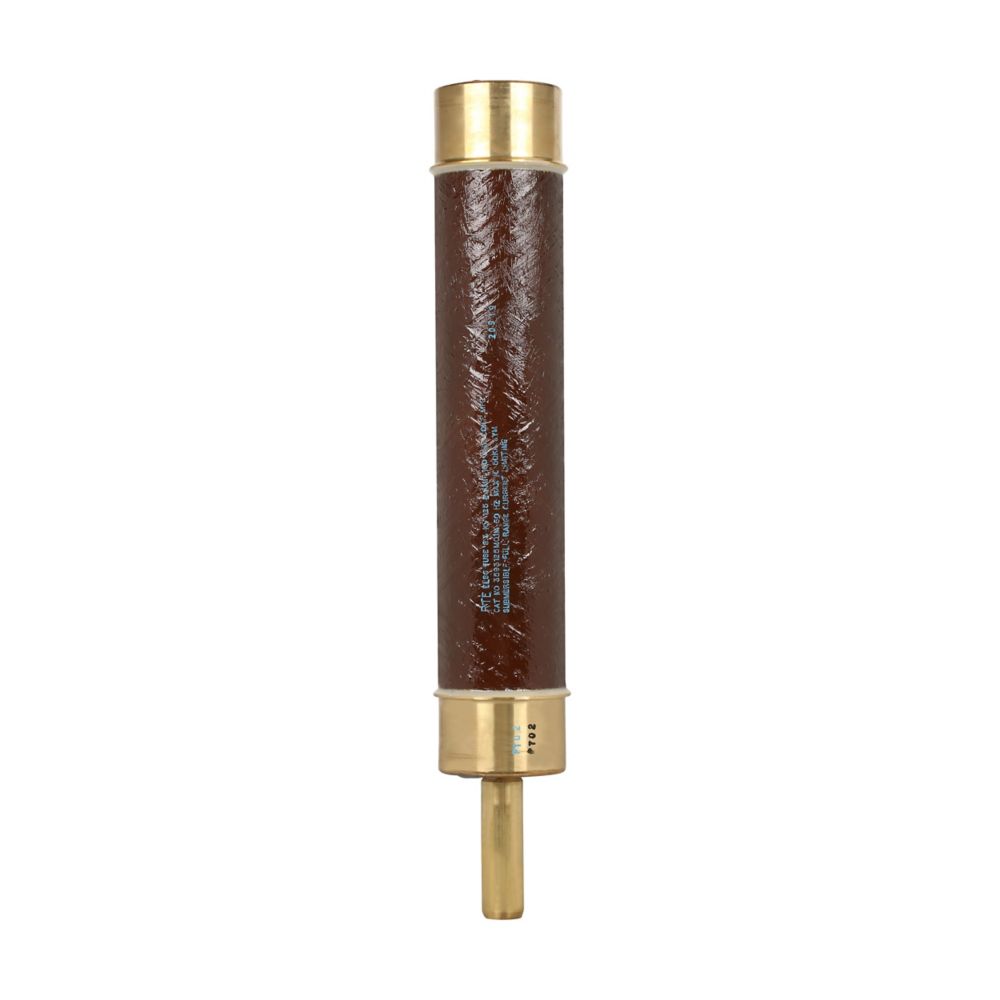

Eaton 3594065M01M is a current-limiting, full-range medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides reliable overcurrent and short-circuit protection with a 65A current rating and a 15.5kV voltage rating, suitable for medium-voltage applications. The fuse features a robust two-barrel wet well connection design, constructed with a 4.3-inch diameter body and a weight of 5.8 lb, and carries a Class E rating for defined performance characteristics. It is engineered to meet stringent industry standards for medium-voltage protection, ensuring safe operation in demanding environments. Typical applications include protecting transformers, capacitors, and feeders within utility and industrial power networks.
Key Features & Specifications
Type: Current-limiting, full-range medium voltage fuse with two-barrel construction
Voltage Rating: 15500V
Current Rating: 65A
Dimensions: 4.3-inch diameter
Standards: Class E rating
Applications: Protection for transformers, capacitors, and feeders in industrial and utility power systems
Connection: Wet Well
Barrels: 2
Weight: 5.8 lb
Item Subcategory: Medium Voltage
Section: Current limiting full range fuse
Product Identification
UPC: 194006033459
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support

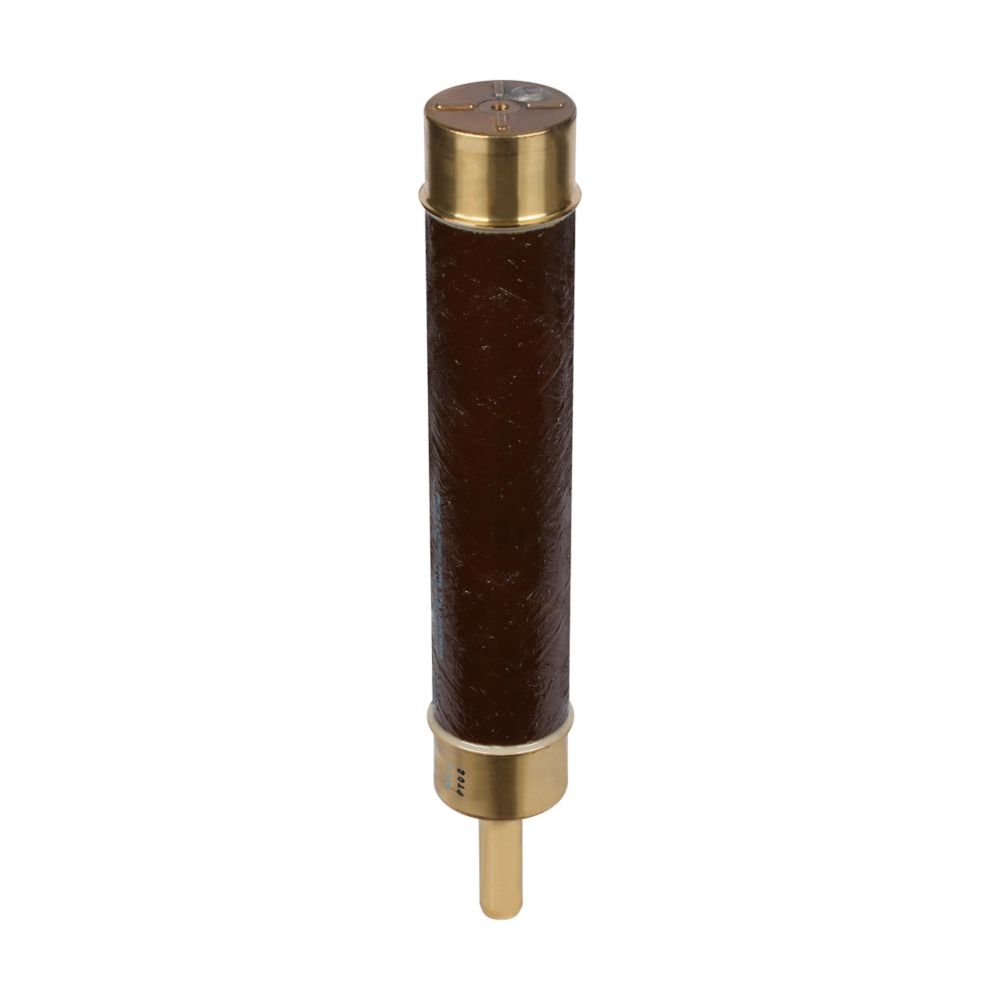

Eaton 3594065M01M - Medium Voltage Fuse 65A 15.5kV Class E
