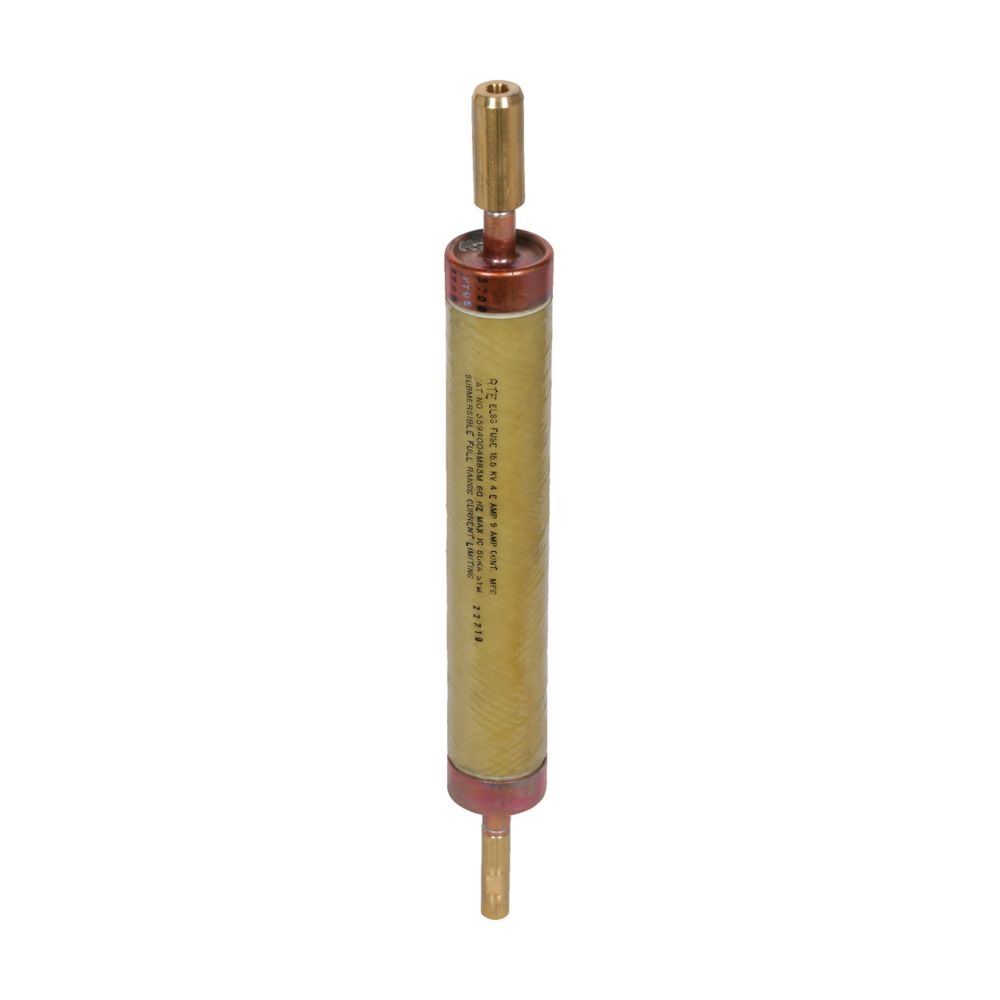

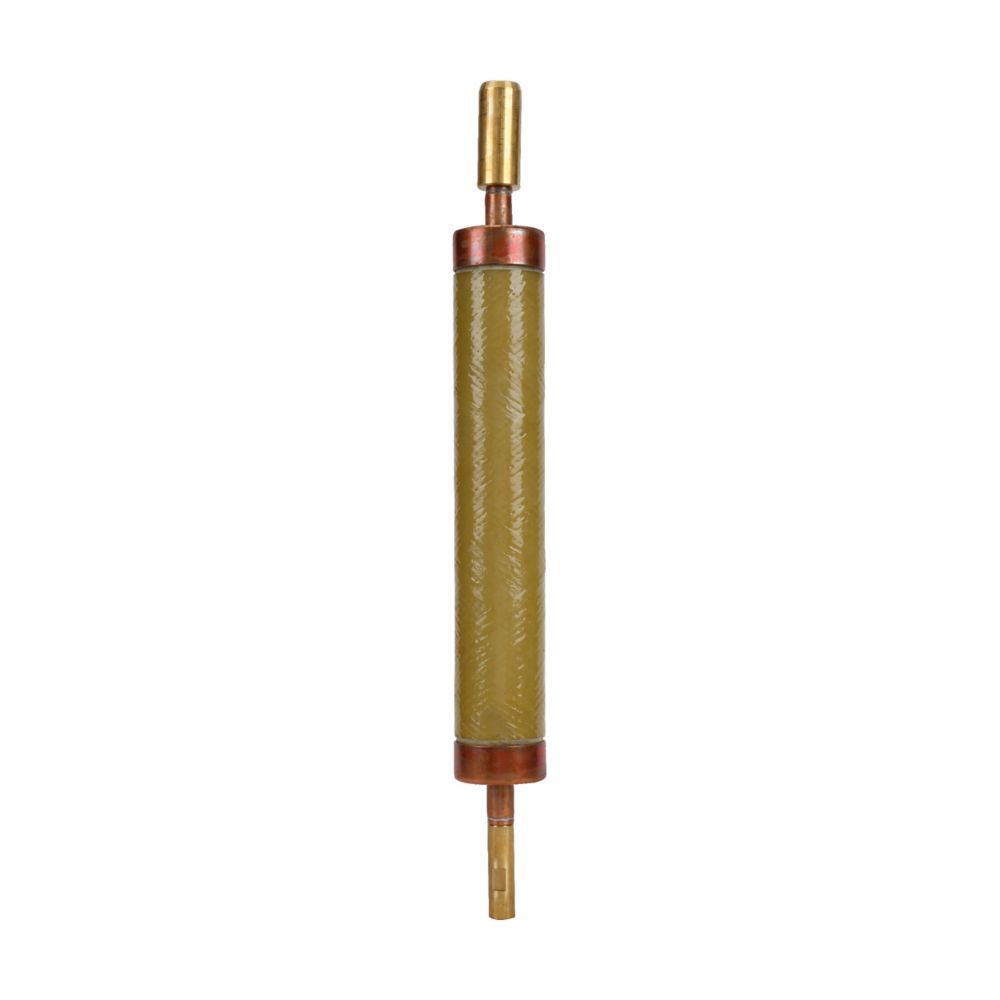

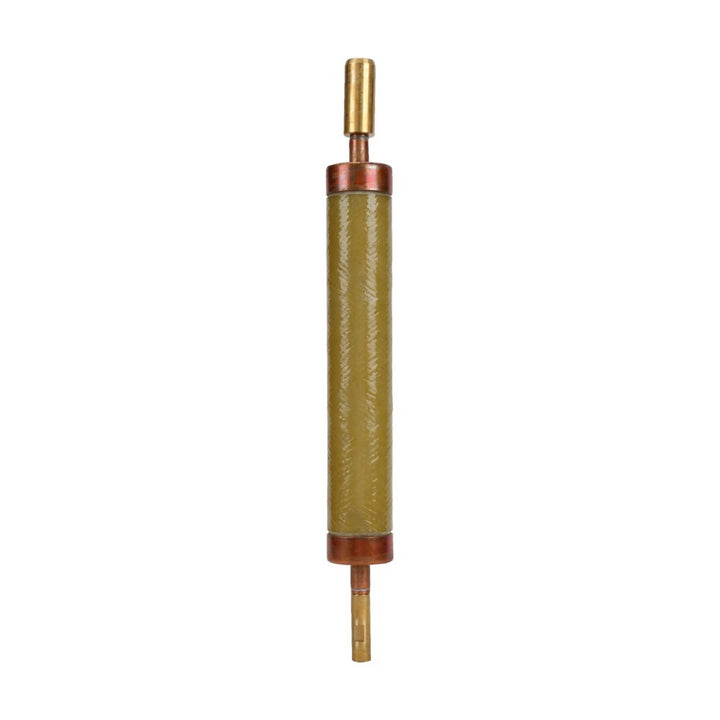

Eaton 3594025M83M - Medium Voltage Fuse 25A 15.5kV (E-Rated)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 3594025M83M is a medium voltage current-limiting full-range fuse designed for overcurrent protection in high-voltage industrial power distribution systems. It features a 25A current rating and a 15.5kV voltage rating, providing reliable interruption of fault currents within its specified range. The fuse is constructed as a single-barrel unit with a 2.15-inch diameter and a wet well connection type, weighing 7.2 lb, and is classified as an E-rated fuse for medium-voltage applications. It is engineered to meet stringent industry standards for performance and safety in demanding electrical environments. Typical applications include protecting transformers, motors, and feeders in utility and industrial power networks.

Key Features & Specifications
  • Type: Current-limiting full-range fuse, single-barrel construction with wet well connection
  • Voltage Rating: 15500V
  • Current Rating: 25A
  • Dimensions: 2.15-inch diameter
  • Standards: E Class Rating for medium-voltage applications
  • Applications: Protection for transformers, motors, and feeders in industrial power distribution
  • Section: Current limiting full range fuse
  • Connection: Wet Well
  • Barrels: 1
  • Class Rating: E
  • Item Subcategory: Medium Voltage
  • Weight: 7.2 lb


Product Identification
  • UPC: 194006033046
