Eaton 3594012M83M - Medium Voltage Fuse 15.5kV 12A (Class E)
3594012M83M Eaton Medium Voltage - Essential Electric Supply
3594012M83M Eaton Medium Voltage - Essential Electric Supply
Eaton 3594012M83M - Medium Voltage Fuse 15.5kV 12A (Class E)

Eaton 3594012M83M - Medium Voltage Fuse 15.5kV 12A (Class E)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

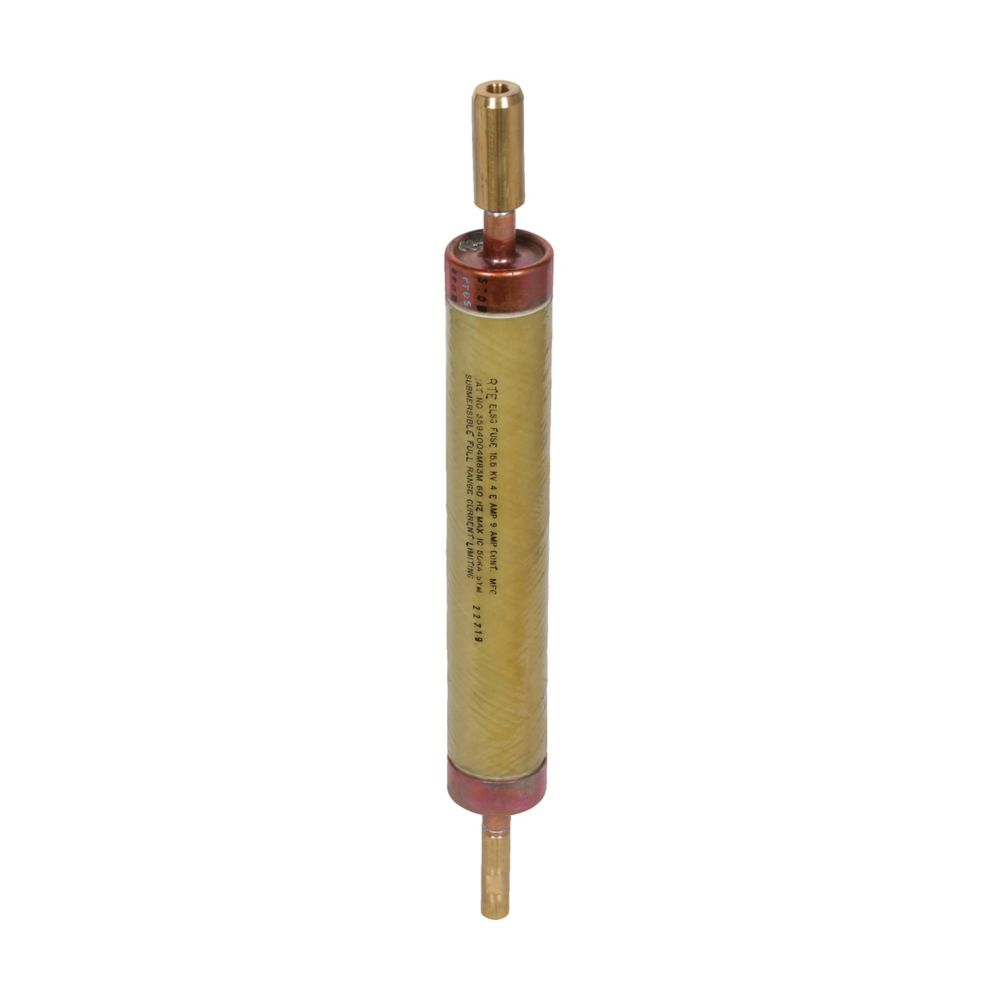

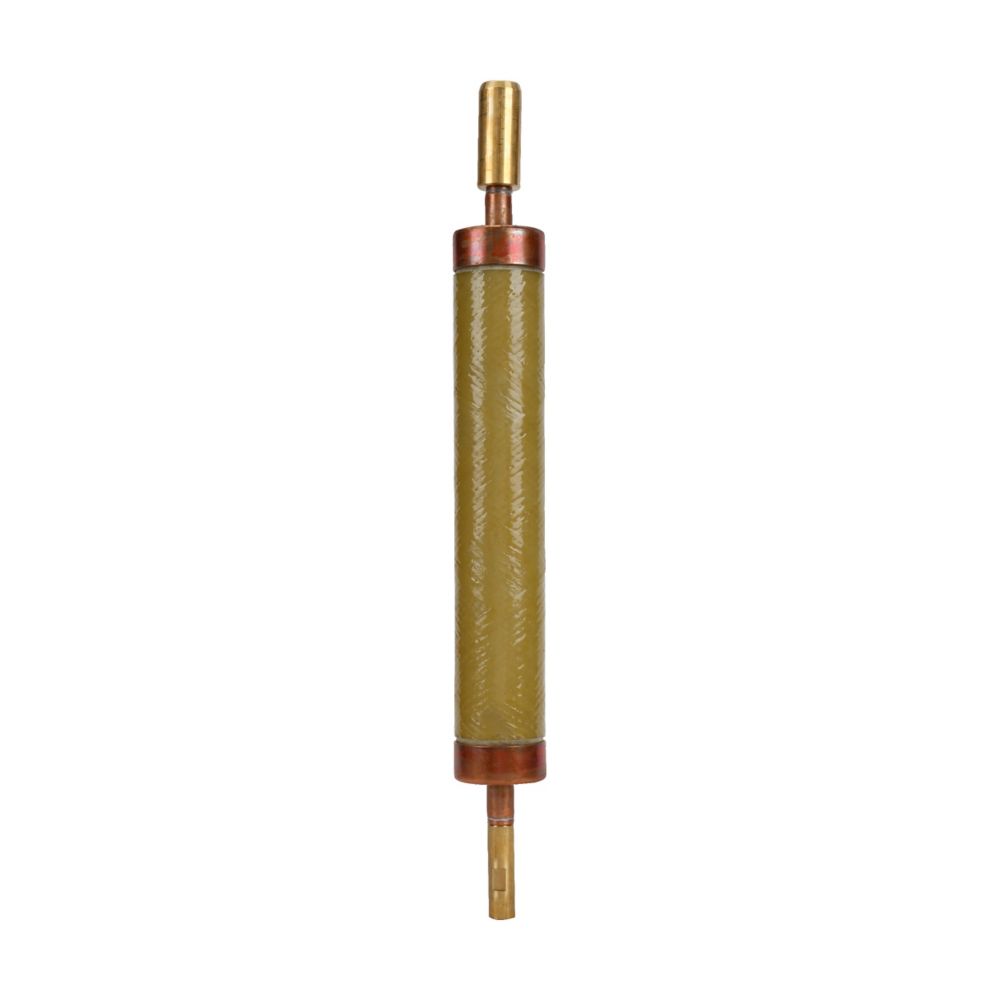

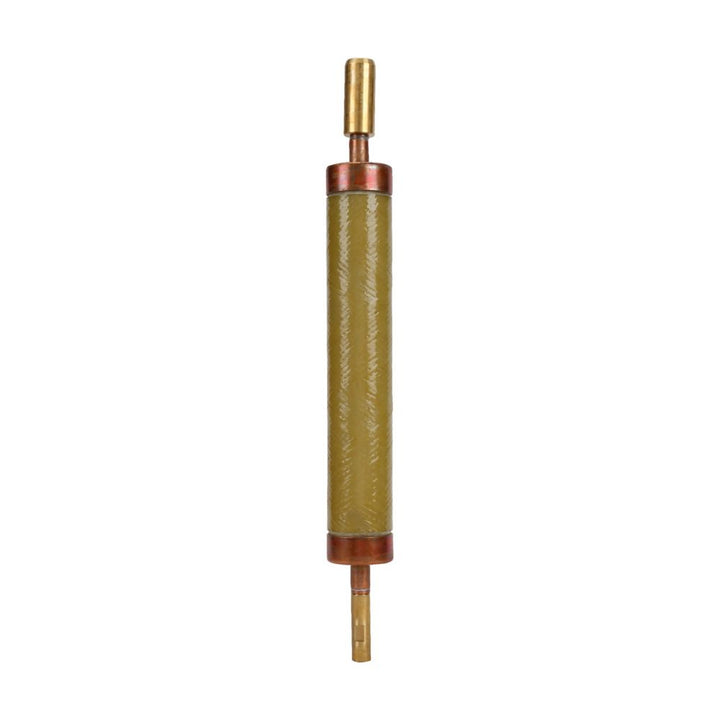

Eaton 3594012M83M is a medium voltage, current limiting full range fuse designed for high-voltage circuit protection in industrial power distribution systems. It features a 15.5kV voltage rating and a 12A current rating, providing reliable interruption of both high and low fault currents. The fuse is constructed as a single-barrel unit with a wet well connection and a 2.15-inch diameter, contributing to its robust design for demanding environments. It complies with Class E rating standards, ensuring specific time-current characteristics for coordinated protection. Typical applications include safeguarding transformers, motors, and feeders within utility and industrial medium-voltage networks.

Key Features & Specifications
  • Type: Current limiting full range fuse, single barrel, wet well connection
  • Voltage Rating: 15500V
  • Current Rating: 12A
  • Dimensions: 2.15 in diameter
  • Standards: Class E rating
  • Applications: Medium-voltage power distribution, transformer and feeder protection
  • Section: Current limiting full range fuse
  • Item Subcategory: Medium Voltage
  • Weight: 7.2 lb
  • Barrels: 1
  • Connection: Wet Well
  • Class Rating: E


Product Identification
  • UPC: 194006033015
