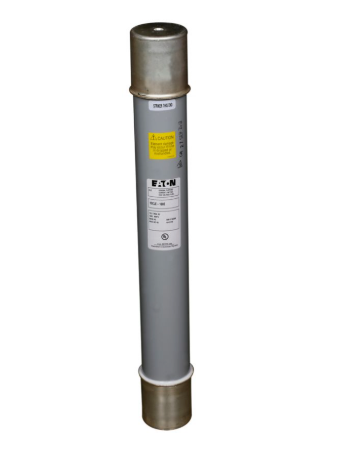

Eaton 3593100M04M - Medium Voltage Fuse 8300V 100A (Class E Threaded Barrel)

Eaton 3593100M04M is a medium voltage fuse designed for high-voltage circuit protection in industrial power systems. This Class E fuse features an 8300V voltage rating and 100A current capacity, housed in a durable threaded barrel configuration with a 3-inch diameter. Its 10 lb construction meets rigorous industry standards for medium-voltage applications, including ANSI/IEEE compliance. The fuse is engineered for transformer protection, motor circuits, and feeder protection in utility and industrial power distribution networks.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating
• Voltage Rating: 8300V AC
• Current Rating: 100A
• Dimensions: 3" diameter threaded barrel
• Standards: ANSI/IEEE compliant
• Applications: Transformer protection, motor circuits, feeder protection
• Connection: Threaded
• Barrels: 1
• Weight: 10 lb
