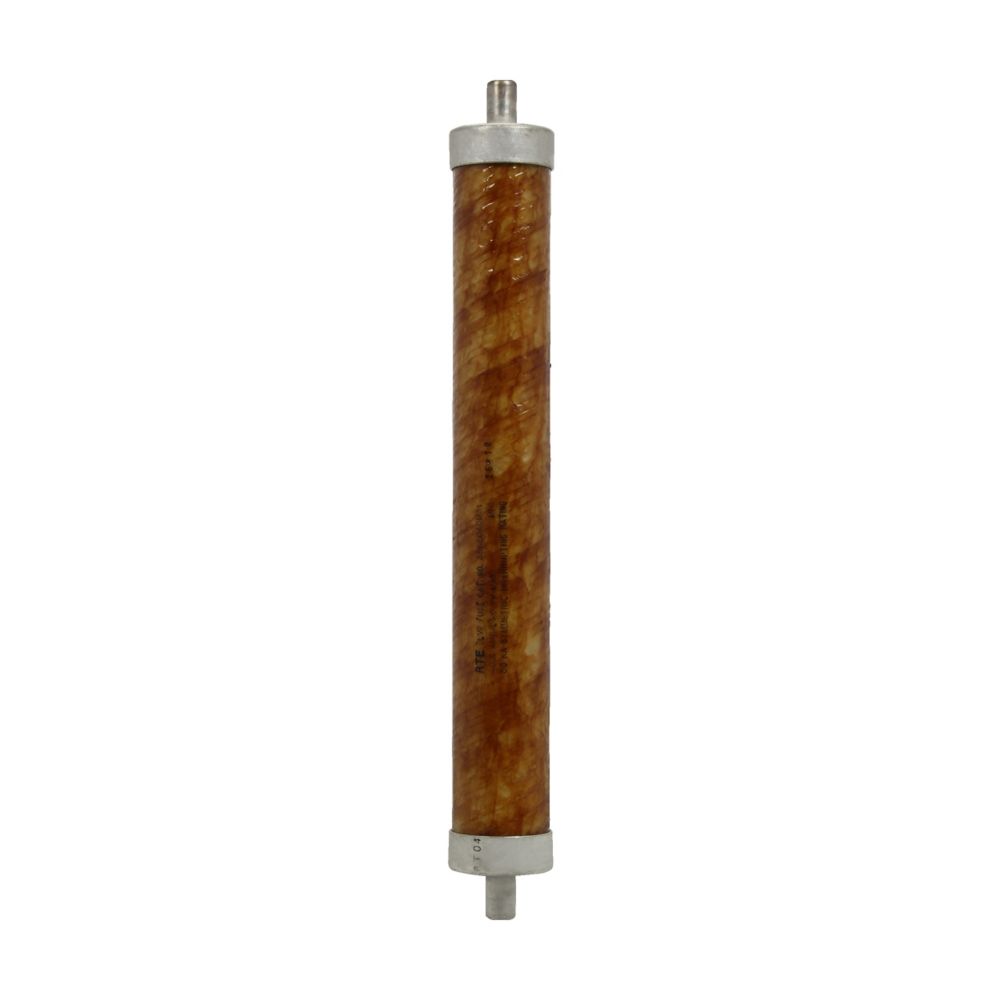

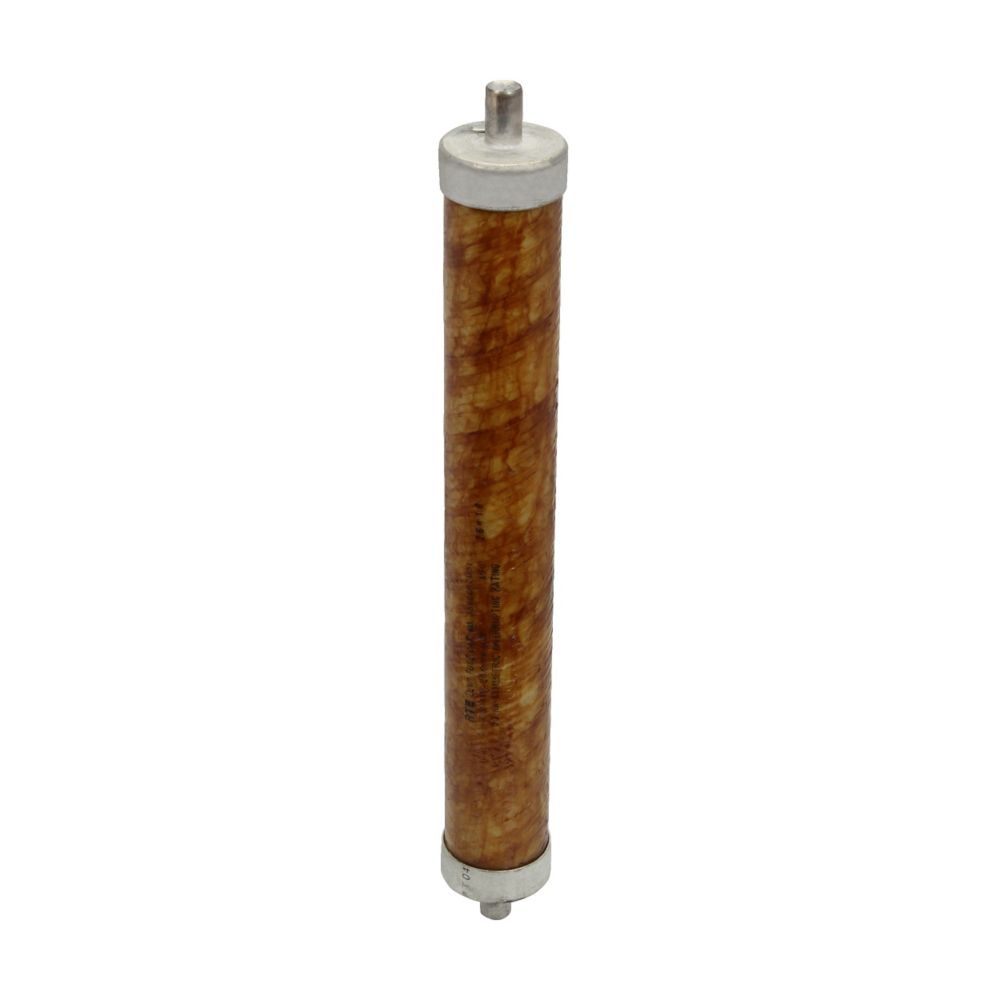

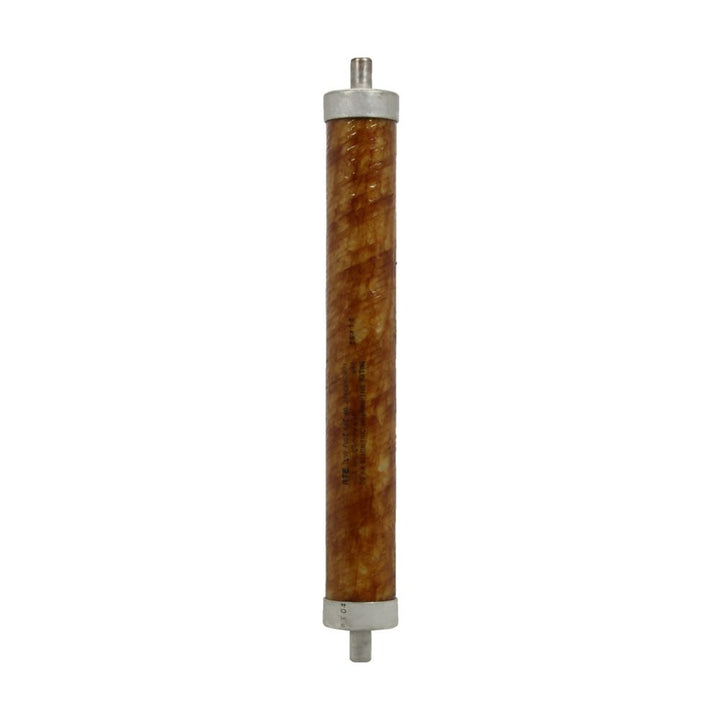

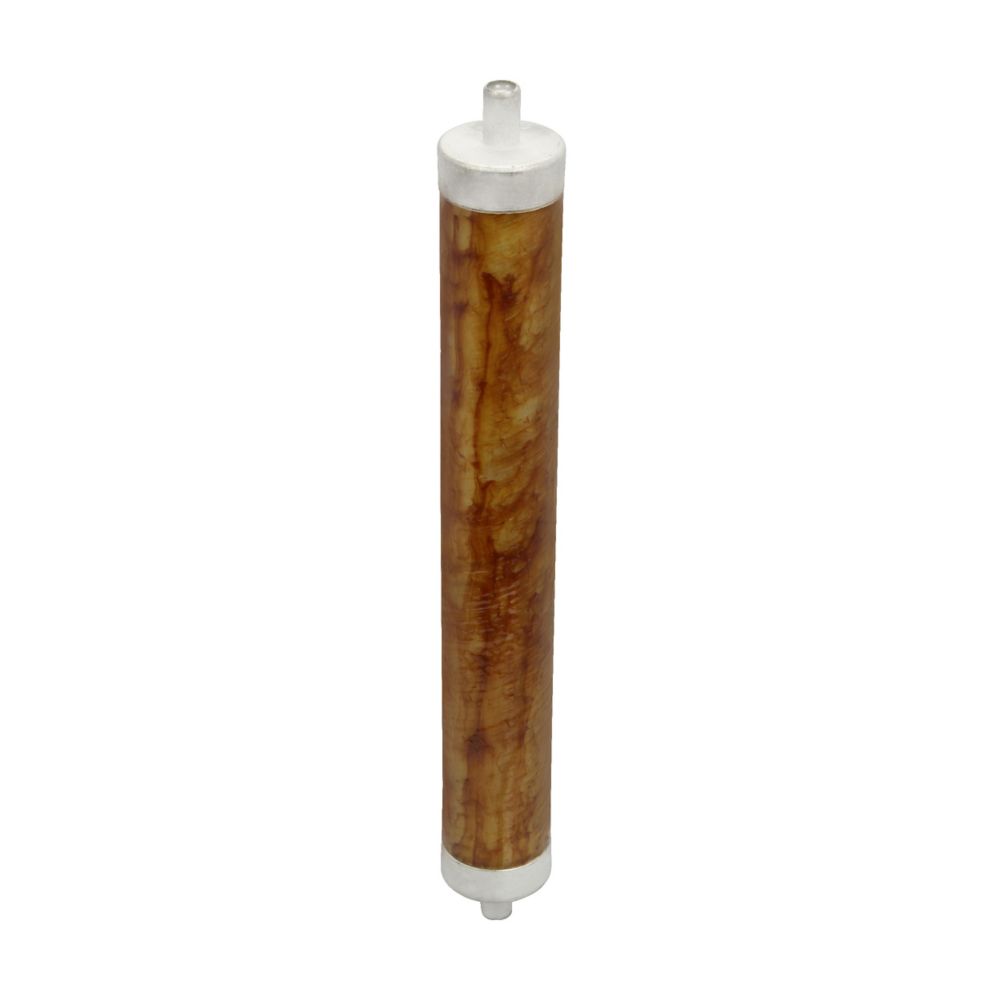

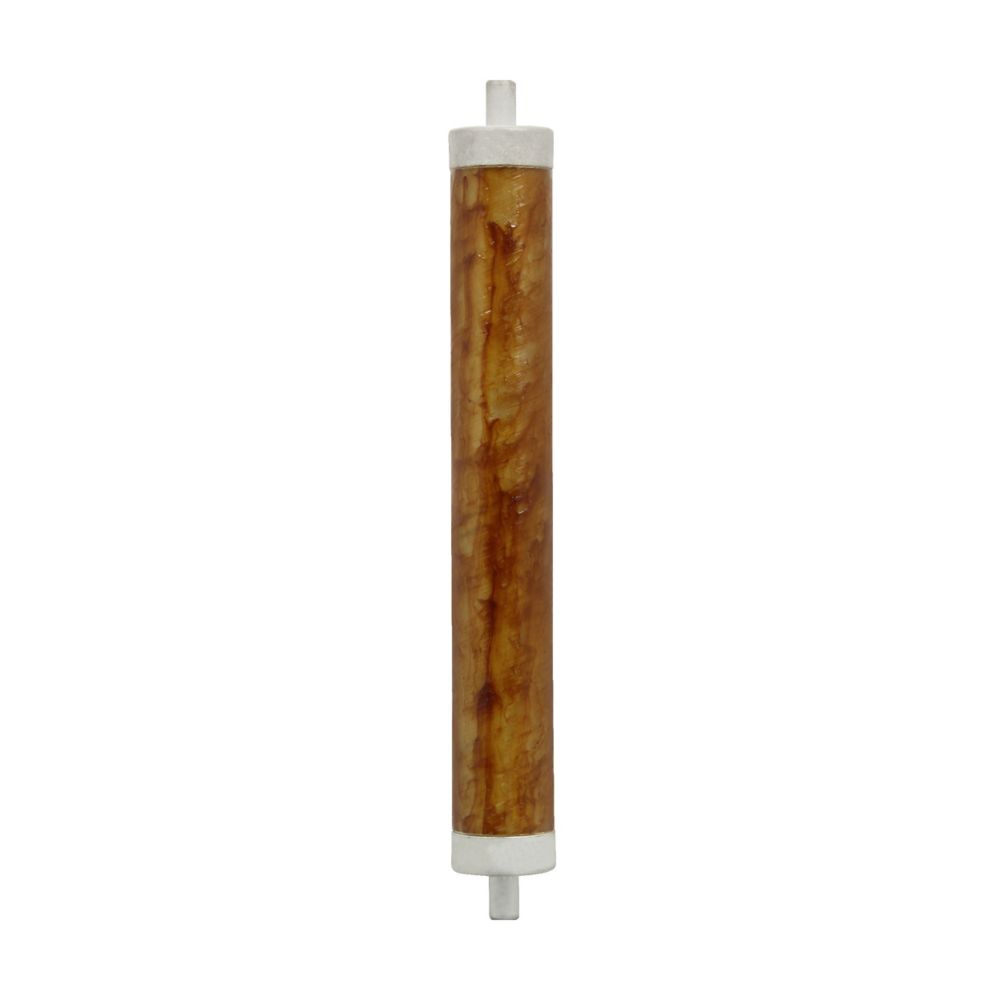

Eaton 3565040M11M - Medium Voltage Fuse 23kV 40A (Class C, NX Connection)

Eaton 3565040M11M is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 23kV voltage rating and 40A current capacity with Class C interruption performance, housed in a durable single-barrel NX connection design with a 2-inch diameter. The fuse meets industry standards for medium voltage applications with its 4 lb compact construction. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with silver-sand element
• Voltage Rating: 23,000V AC
• Current Rating: 40A
• Dimensions: 2" diameter, single-barrel construction
• Standards: IEEE C37.40-41, IEC 60282-1
• Applications: Transformer, motor, and feeder protection
• Class Rating: C
• Connection: NX
• Weight: 4 lb
