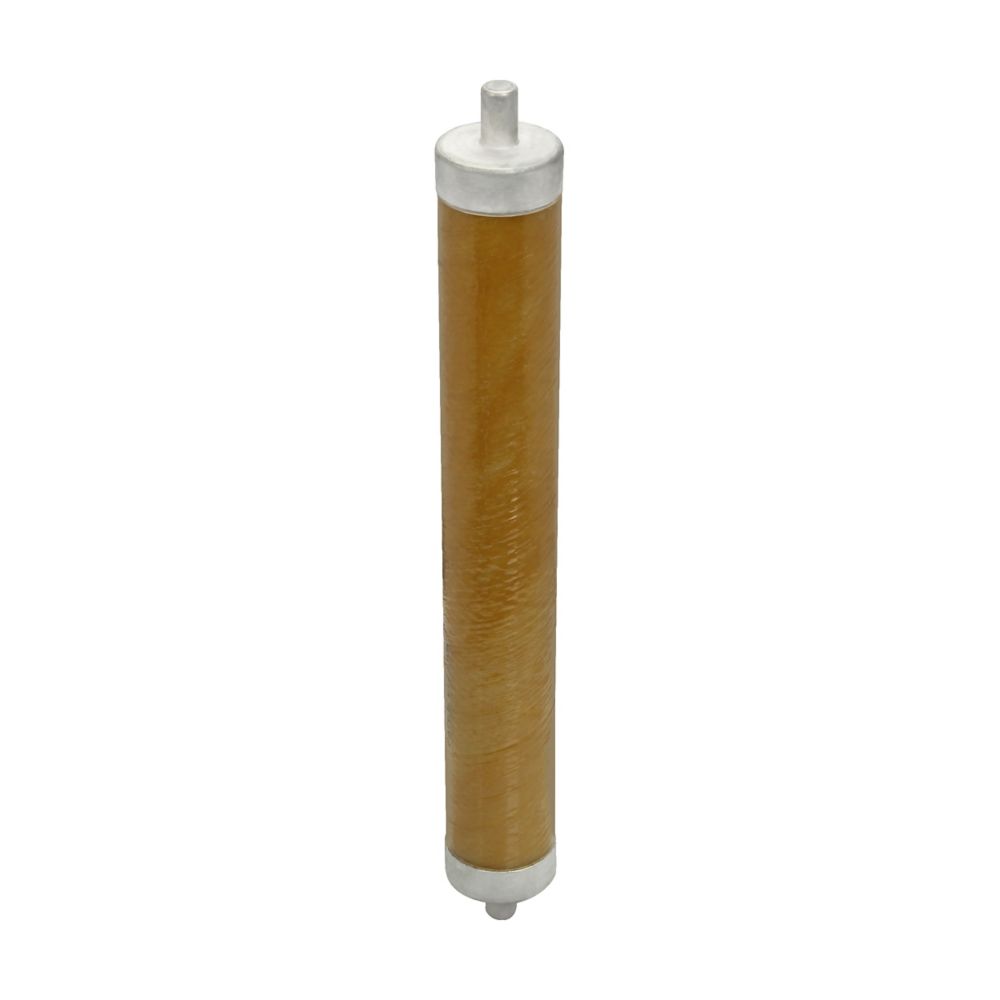

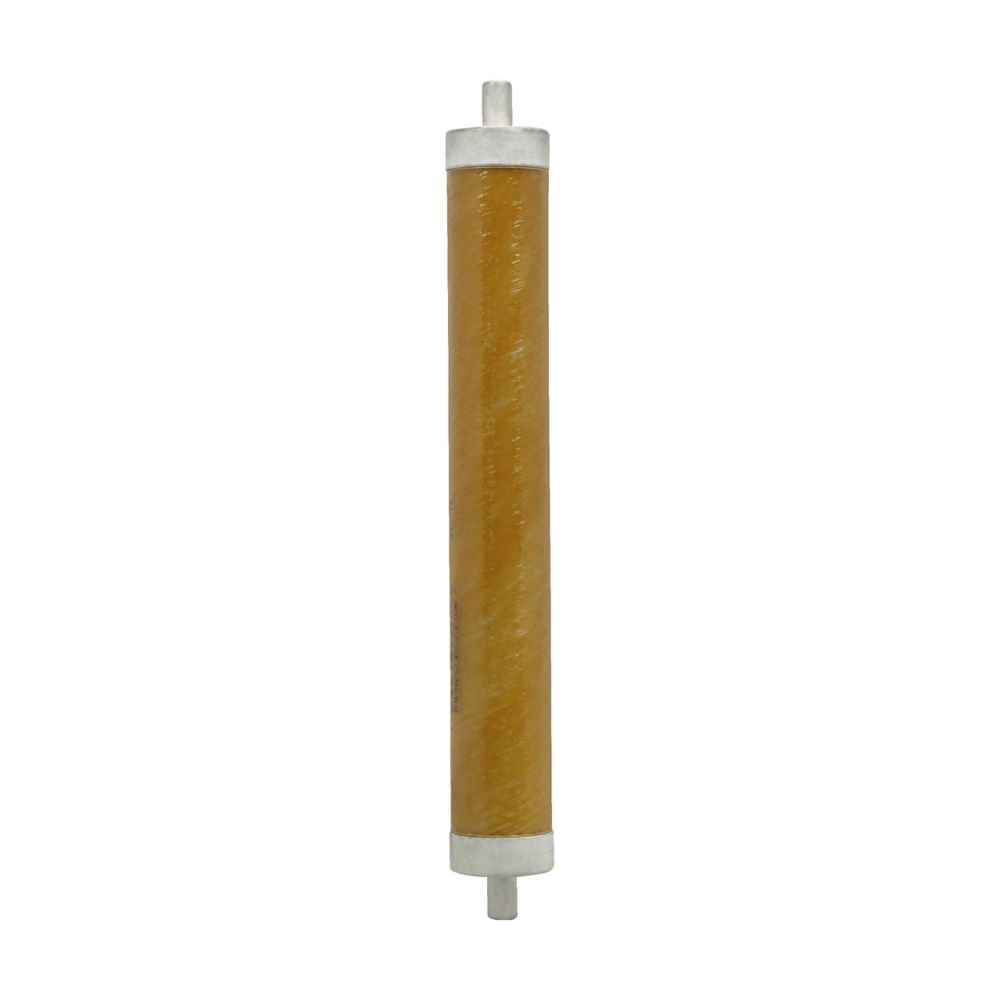

Eaton 3565025M11M is a current-limiting, full-range medium-voltage fuse designed to provide reliable overcurrent and short-circuit protection in high-voltage industrial power distribution systems. It features a 25A current rating and a 23kV voltage rating, engineered to safely interrupt fault currents within its specified range. The fuse is constructed as a single-barrel unit with an NX connection style, measuring 2 inches in diameter and weighing 3.5 lb for robust mechanical integration. It complies with industry standards for Class C fuses, ensuring dependable performance in demanding applications such as transformer protection, motor circuits, and feeder protection in utility and industrial switchgear.
Key Features & Specifications
Type: Current-limiting, full-range fuse, single-barrel construction
Voltage Rating: 23000V
Current Rating: 25A
Dimensions: 2" diameter
Standards: Class C rating
Applications: Transformer, motor, and feeder protection in medium-voltage distribution
Connection: NX
Barrels: 1
Weight: 3.5 lb
Item Subcategory: Medium Voltage
Product Identification
UPC: 194006027144
