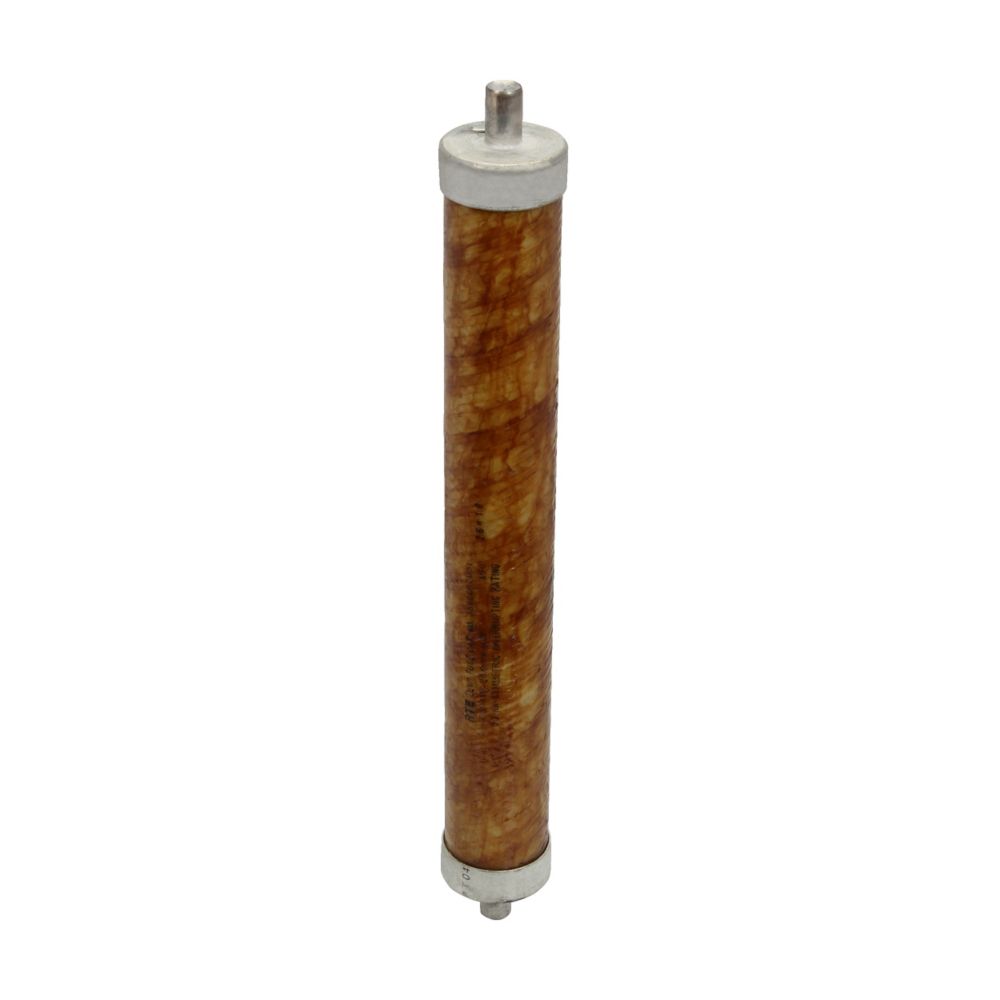

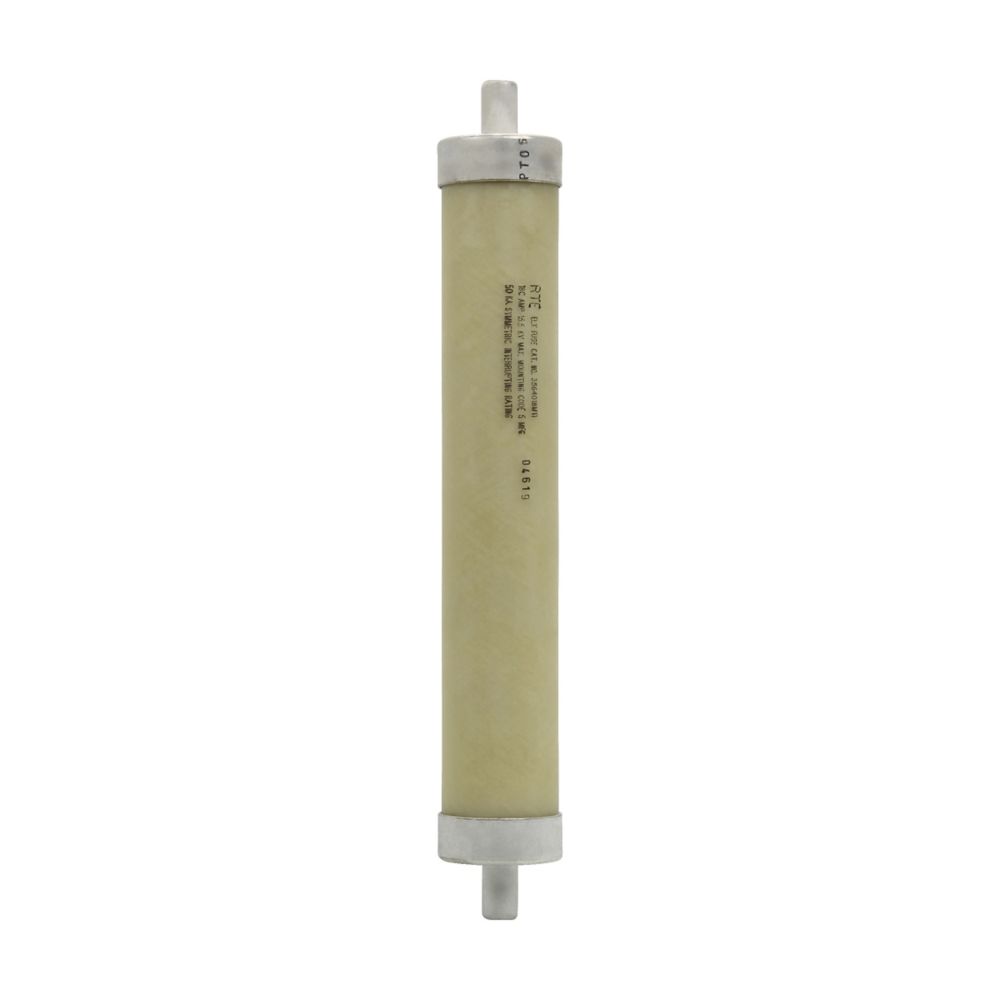

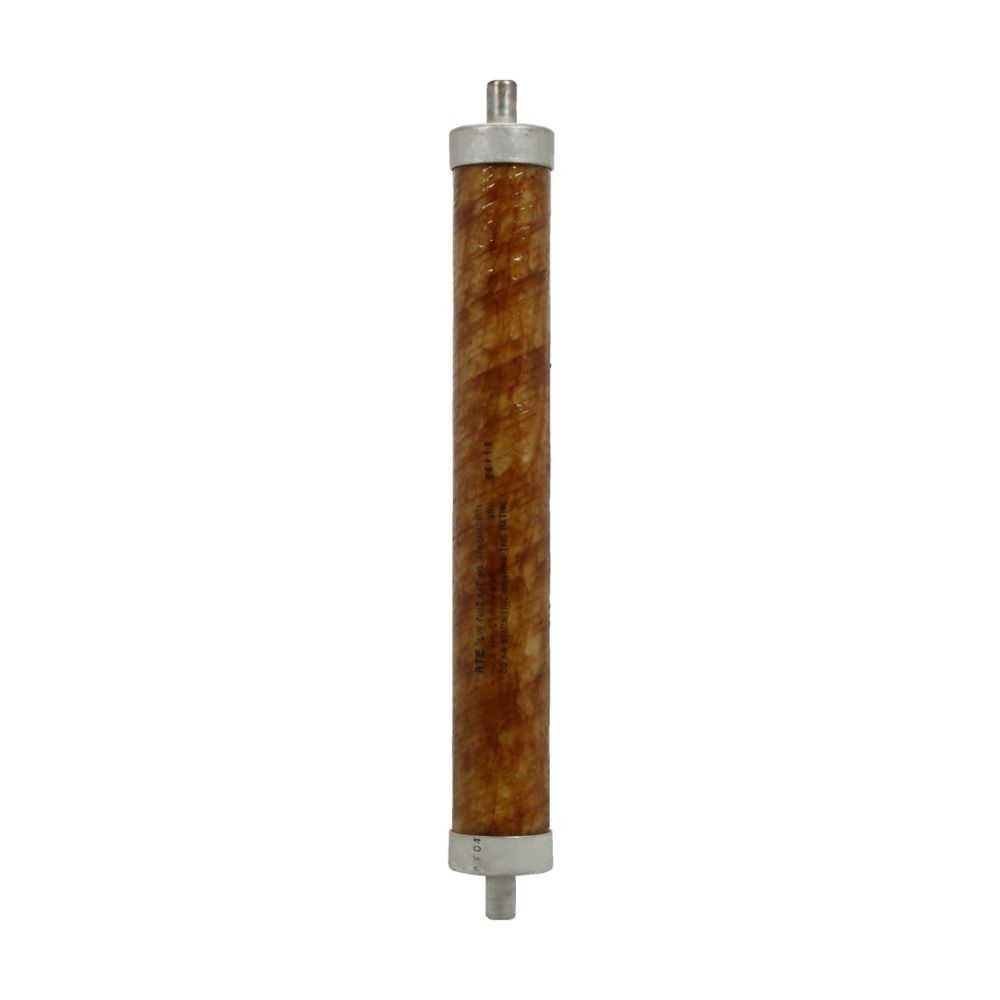

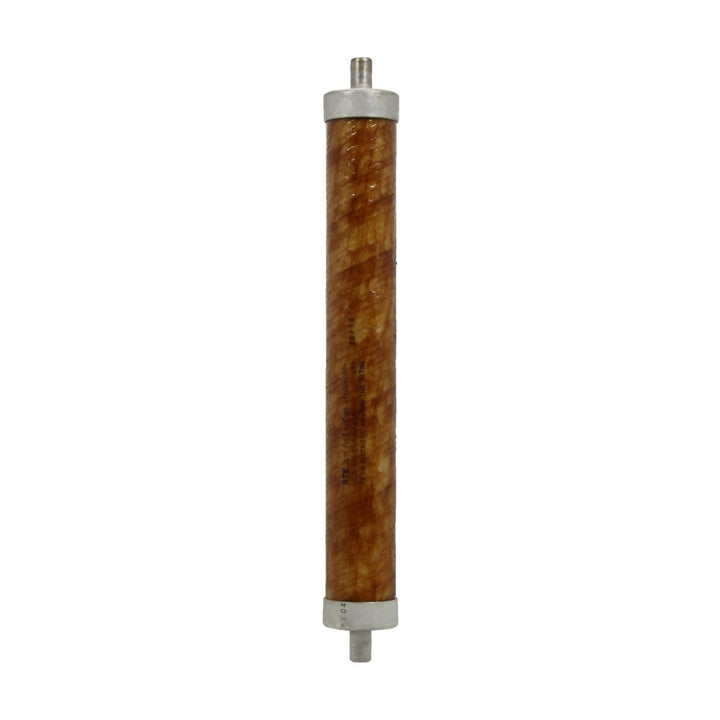

Eaton 3565020M11M - Medium Voltage Fuse 23kV/20A (Class C, NX Connection)

Eaton 3565020M11M is a medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. This Class C fuse features a 23kV voltage rating and 20A current capacity, housed in a durable single-barrel NX connection design with a 2-inch diameter. Its robust construction meets industry standards for medium-voltage applications, including utility substations and large industrial facilities. The 4 lb unit provides reliable overcurrent protection for transformers, capacitors, and feeder circuits in demanding environments.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class C rating
• Voltage Rating: 23,000V AC
• Current Rating: 20A
• Dimensions: 2" diameter single-barrel construction
• Connection Type: NX termination
• Weight: 4 lb
• Standards: IEEE C37.40-41 for medium voltage fuses
• Applications: Transformer protection, capacitor banks, industrial power distribution
