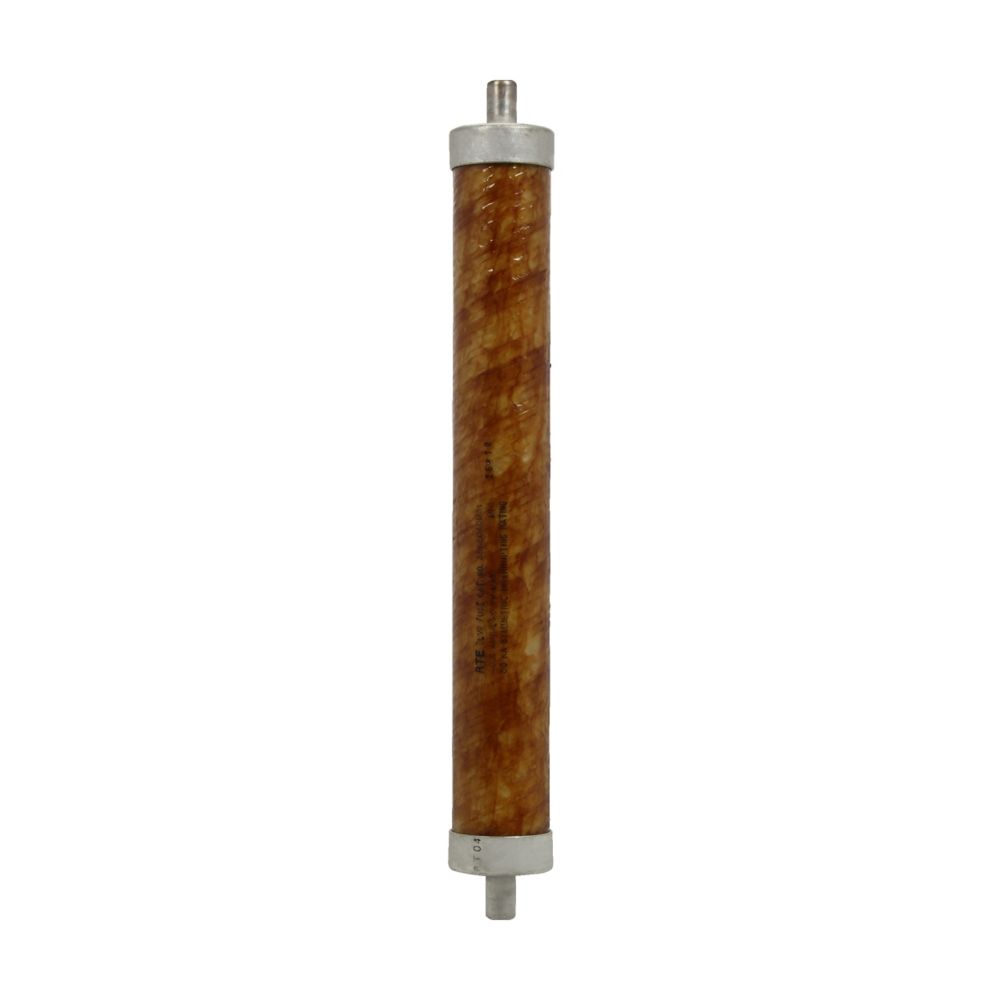

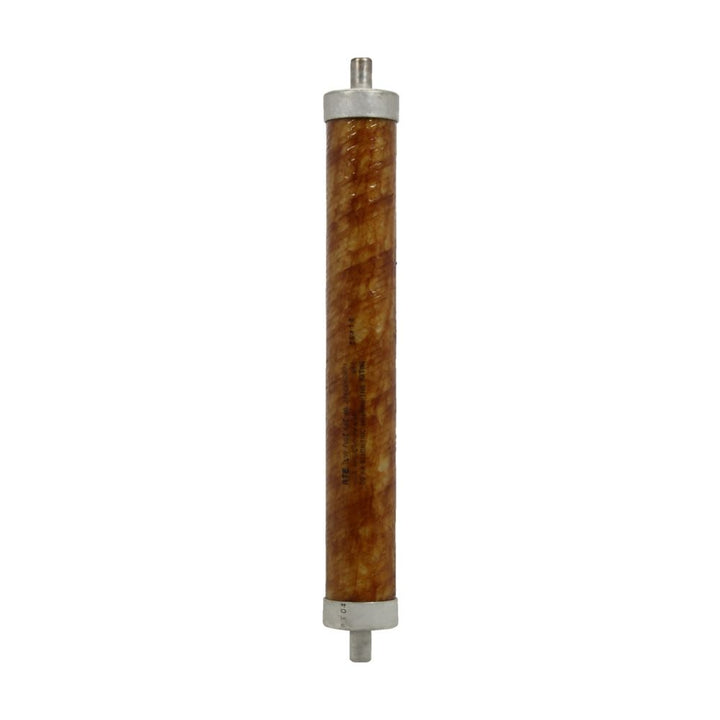

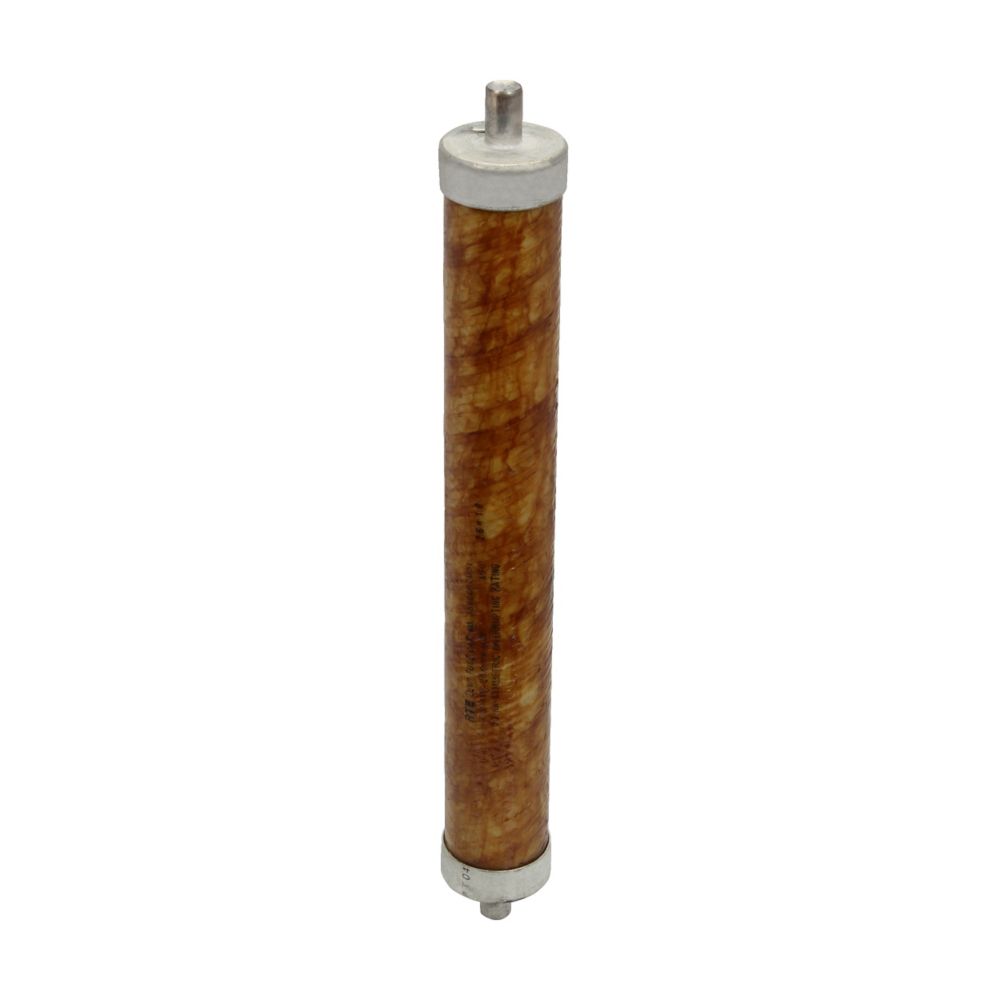

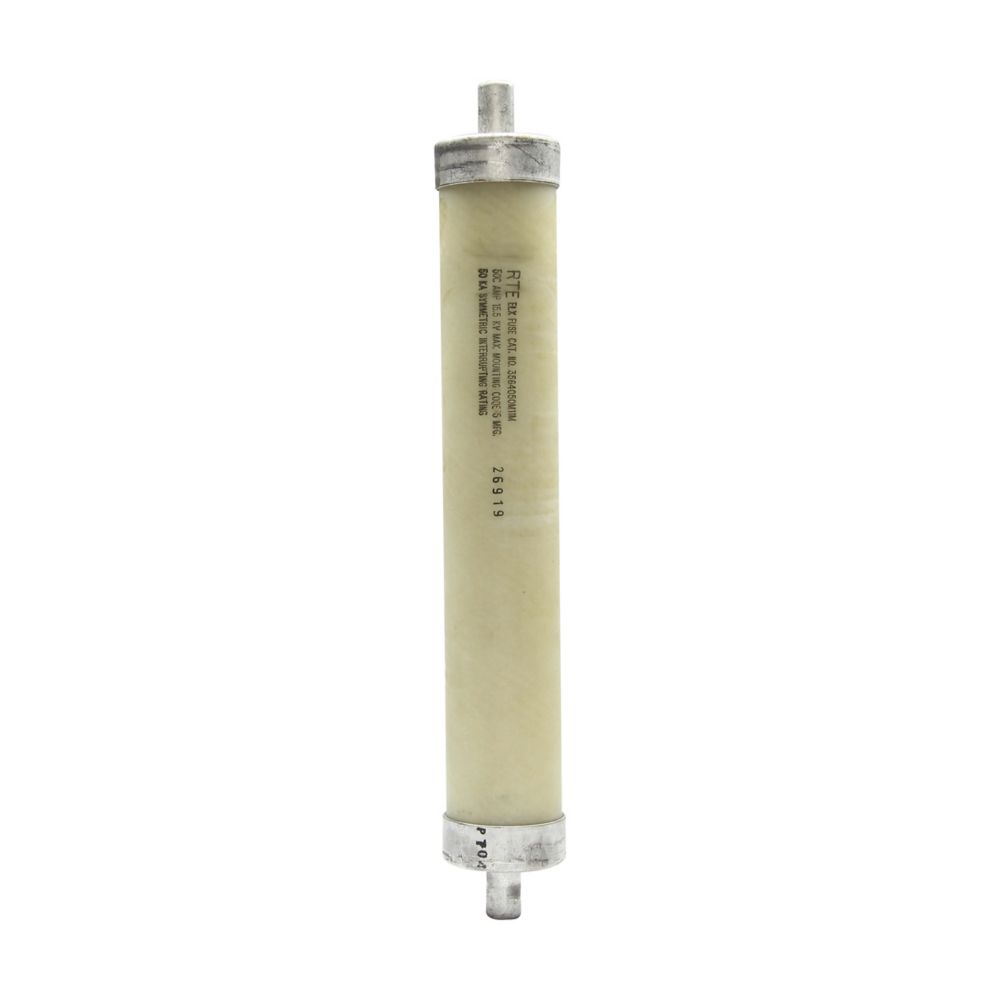

Eaton 3564040M11M - Medium Voltage Fuse 15.5kV/40A (Class C, NX Connection)

Eaton 3564040M11M is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. Rated for 15.5kV AC systems with a 40A current capacity, this Class C fuse features a single-barrel NX connection design and a 2-inch diameter construction for robust performance. The 4 lb unit meets industry standards for medium-voltage protection, with materials engineered for reliable operation in demanding environments. Typical applications include transformer protection, motor starter circuits, and switchgear installations in utility and industrial power distribution networks.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with single-barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 40A
• Dimensions: 2" diameter
• Standards: Class C rated
• Applications: Transformer protection, motor starters, switchgear
• Connection: NX type
• Barrels: 1
• Weight: 4 lb
