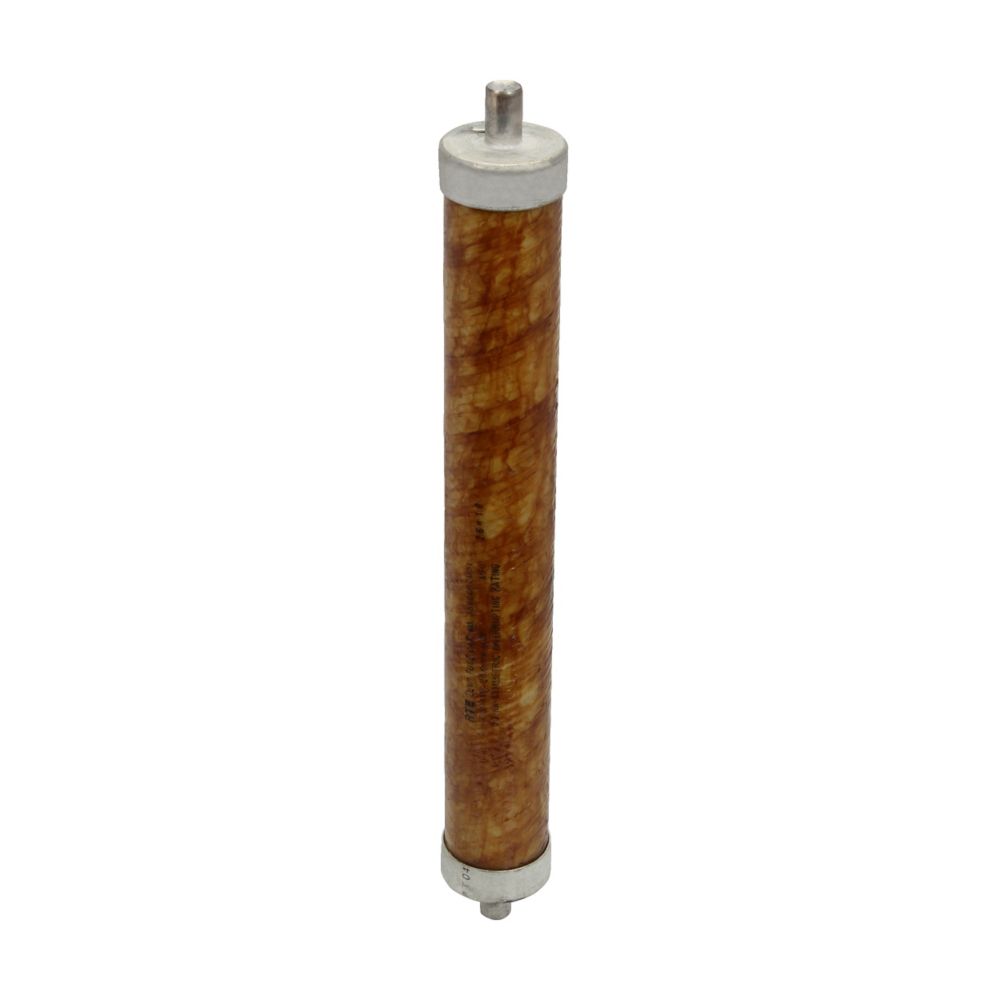

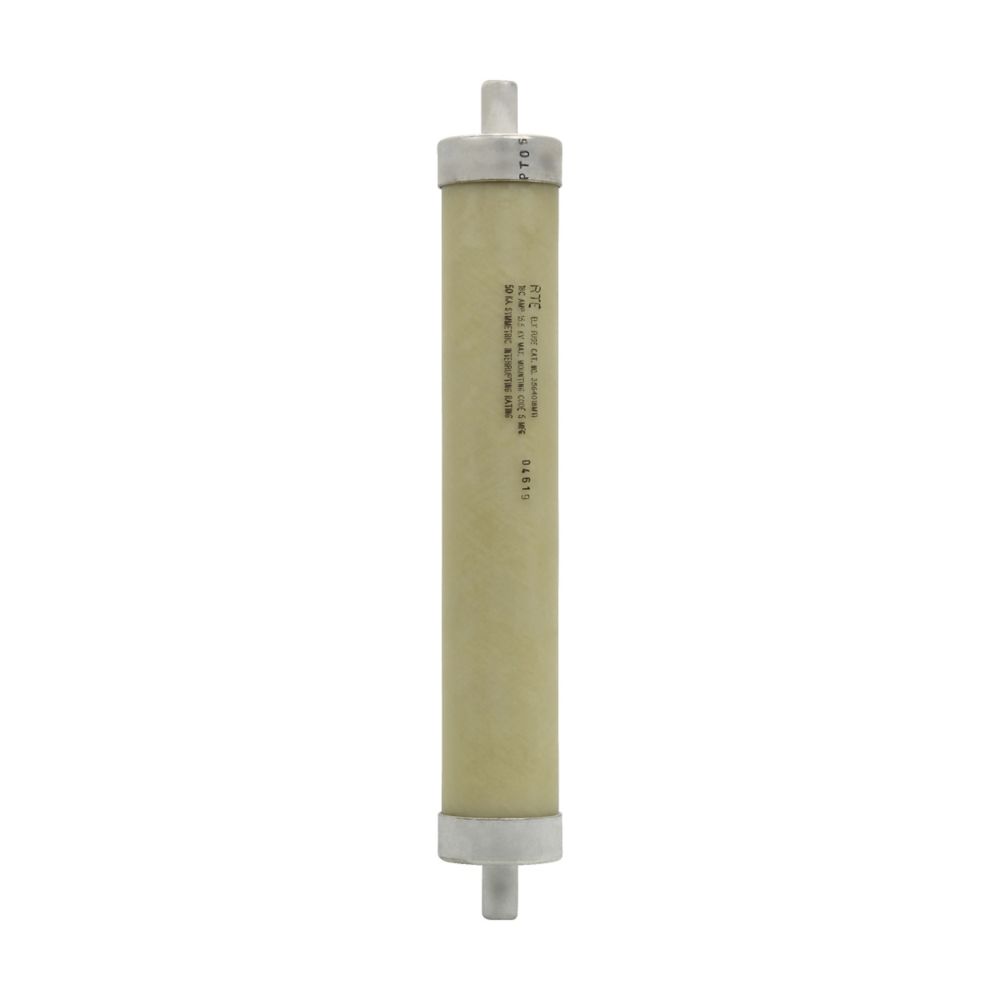

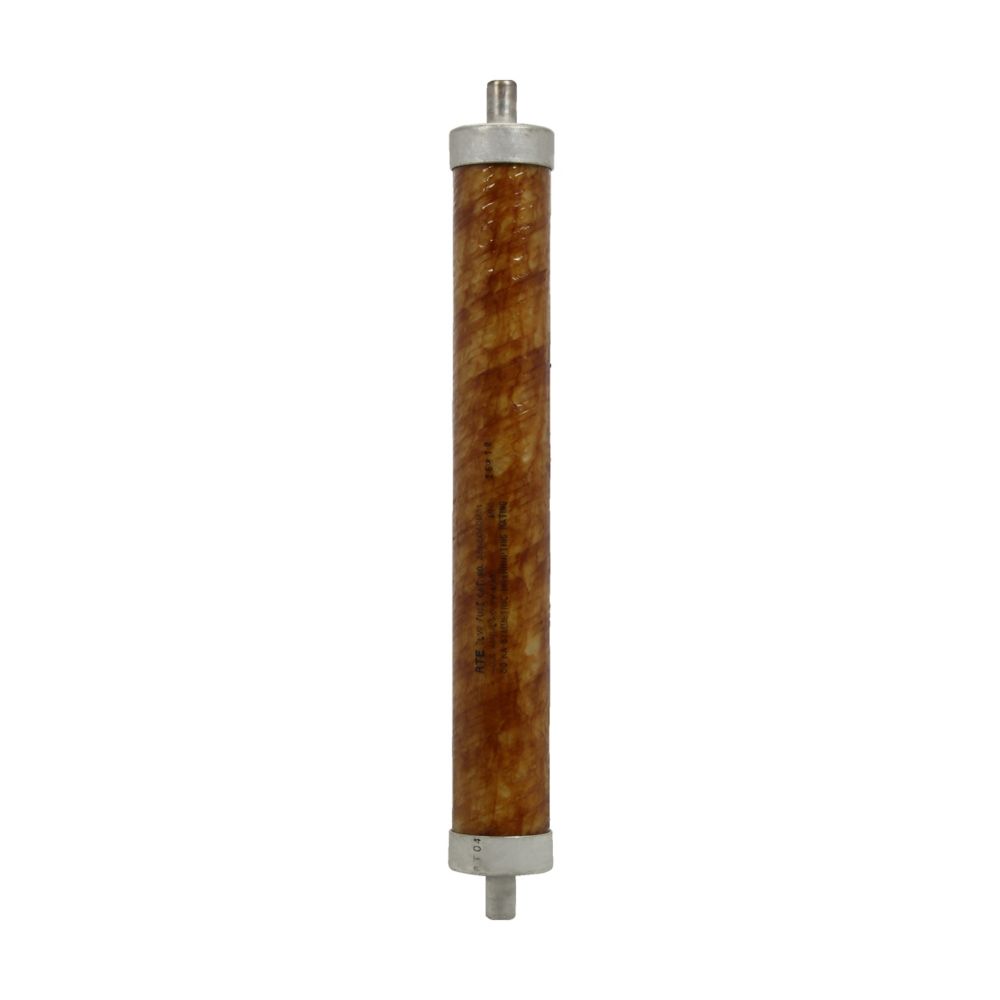

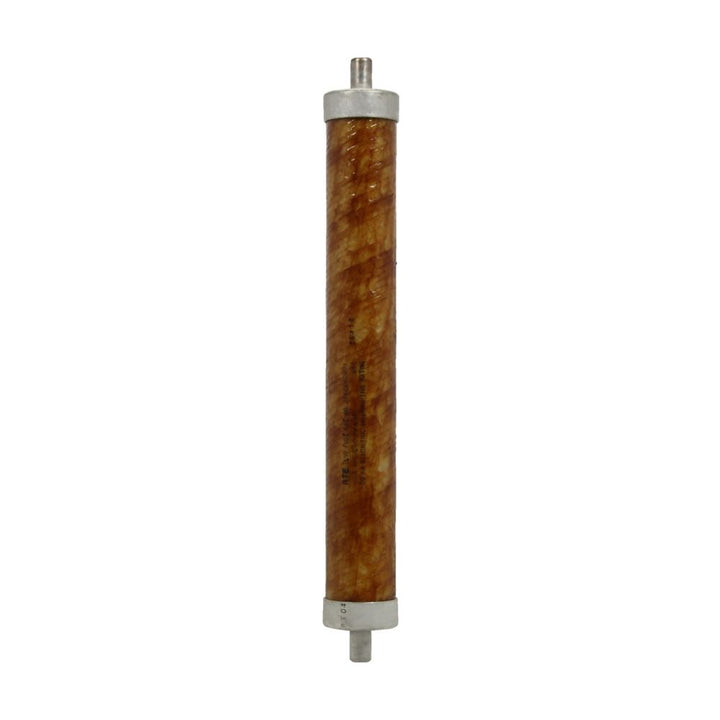

Eaton 3564025M11M - Medium Voltage Fuse 15.5kV 25A (Class C, NX Connection)

Eaton 3564025M11M is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. It features a 15.5kV voltage rating and 25A current capacity, with a Class C construction for reliable interruption of fault currents. The fuse has a compact 2-inch diameter single-barrel NX connection design with a robust 4 lb construction for durability in demanding environments. It meets industry standards for medium voltage protection applications, including switchgear, transformers, and motor control centers.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with Class C interruption rating
• Voltage Rating: 15,500V AC
• Current Rating: 25A
• Dimensions: 2-inch diameter single-barrel construction
• Standards: Meets industry requirements for medium voltage protection
• Applications: Switchgear, transformers, motor control centers
• Connection: NX type
• Weight: 4 lb
• Class Rating: C
