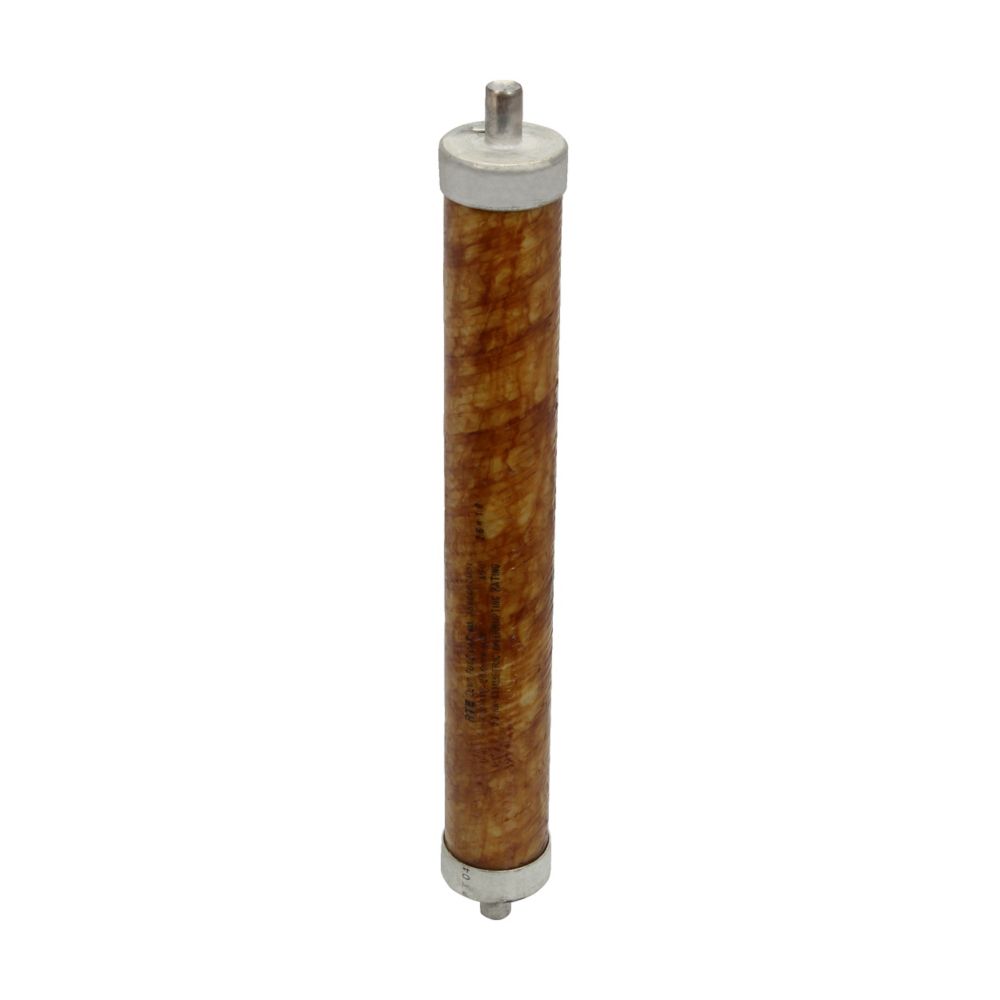

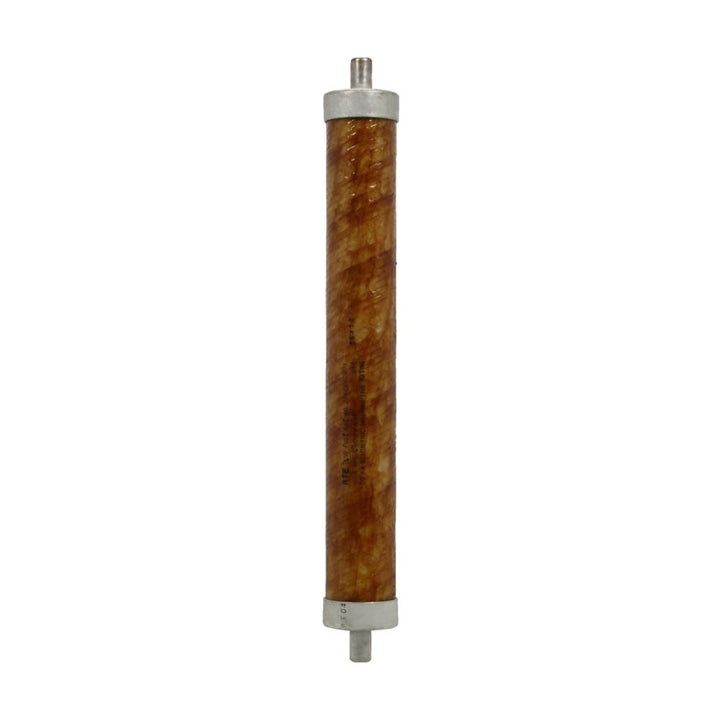

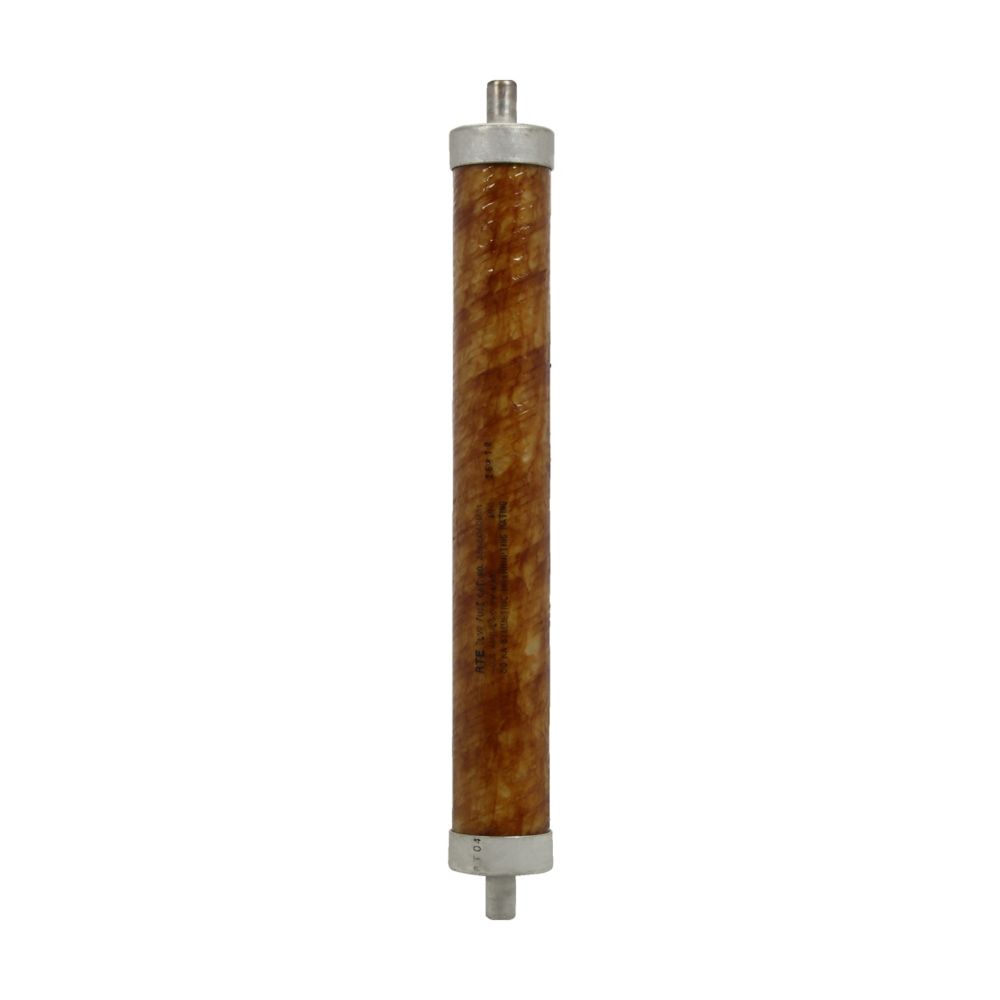

Eaton 3564006M11M - Medium Voltage Current-Limiting Fuse 15.5kV 6A (Class C, NX Connection)

Eaton 3564006M11M is a medium voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This Class C fuse features a 15.5kV voltage rating and 6A current rating, providing reliable overcurrent protection for medium voltage applications. The fuse construction utilizes a single-barrel design with NX-type connections and measures 2 inches in diameter with a total weight of 4 pounds. It complies with industry standards for medium voltage protection devices and is typically deployed in industrial power distribution networks, motor circuits, and transformer protection applications where precise current interruption is required.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single-barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 6A
• Dimensions: 2" diameter
• Standards: Class C rating
• Applications: Industrial power distribution, motor protection, transformer circuits
• Connection: NX type
• Barrels: 1
• Weight: 4 lb
• Class Rating: C
• Item Subcategory: Medium Voltage

Product Identification

• Manufacturer: Eaton
• Model: 3564006M11M
