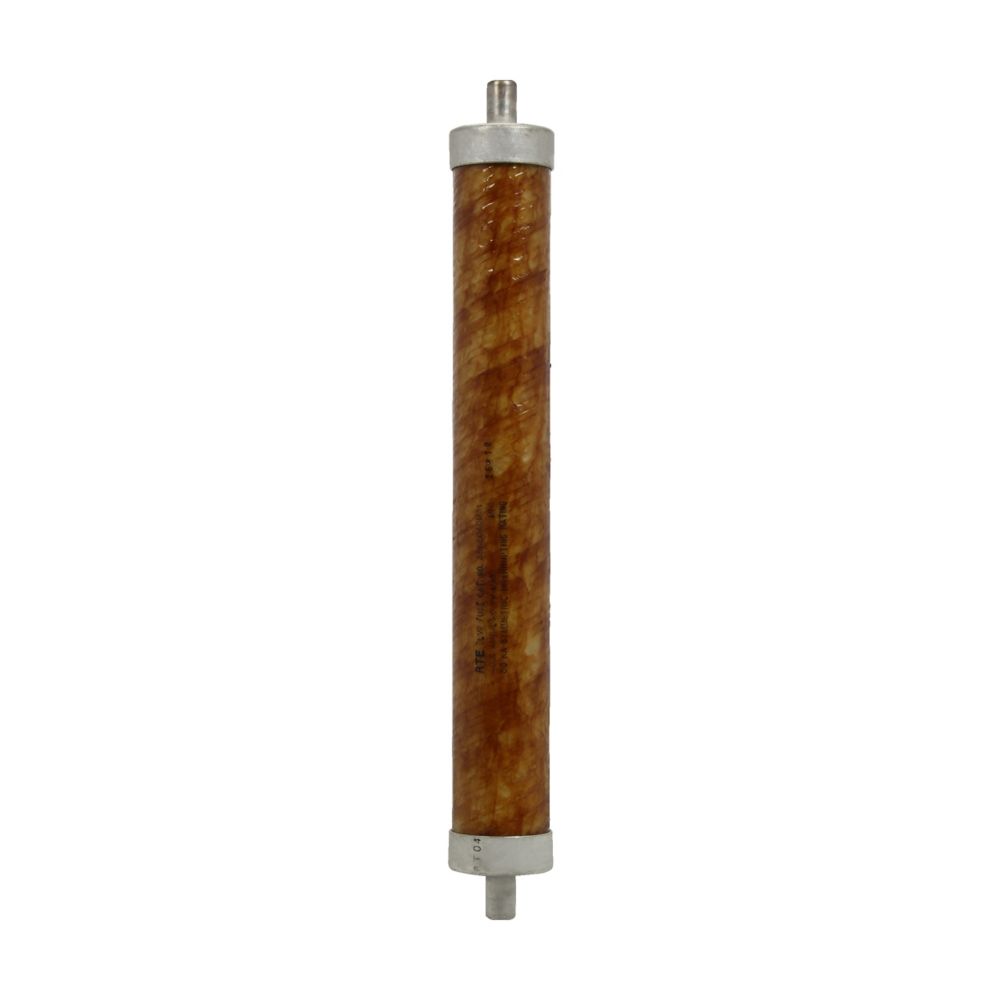

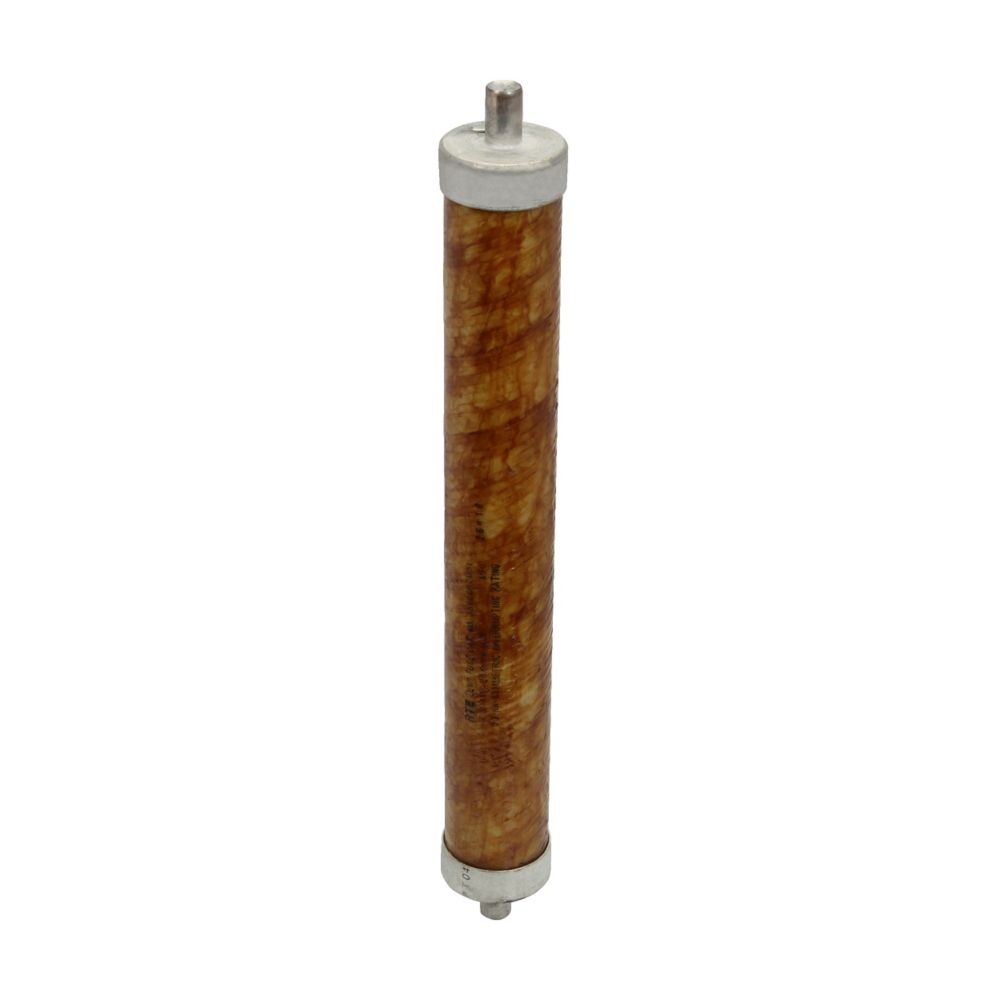

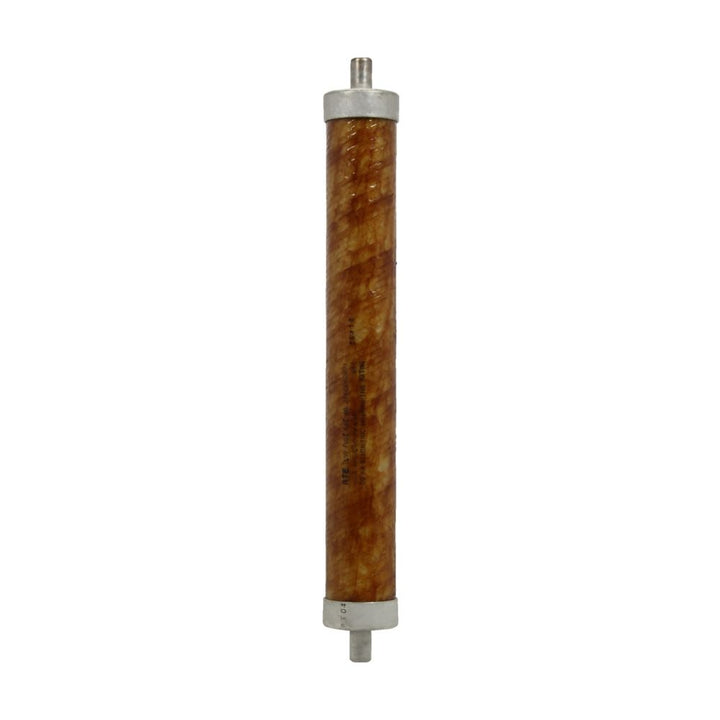

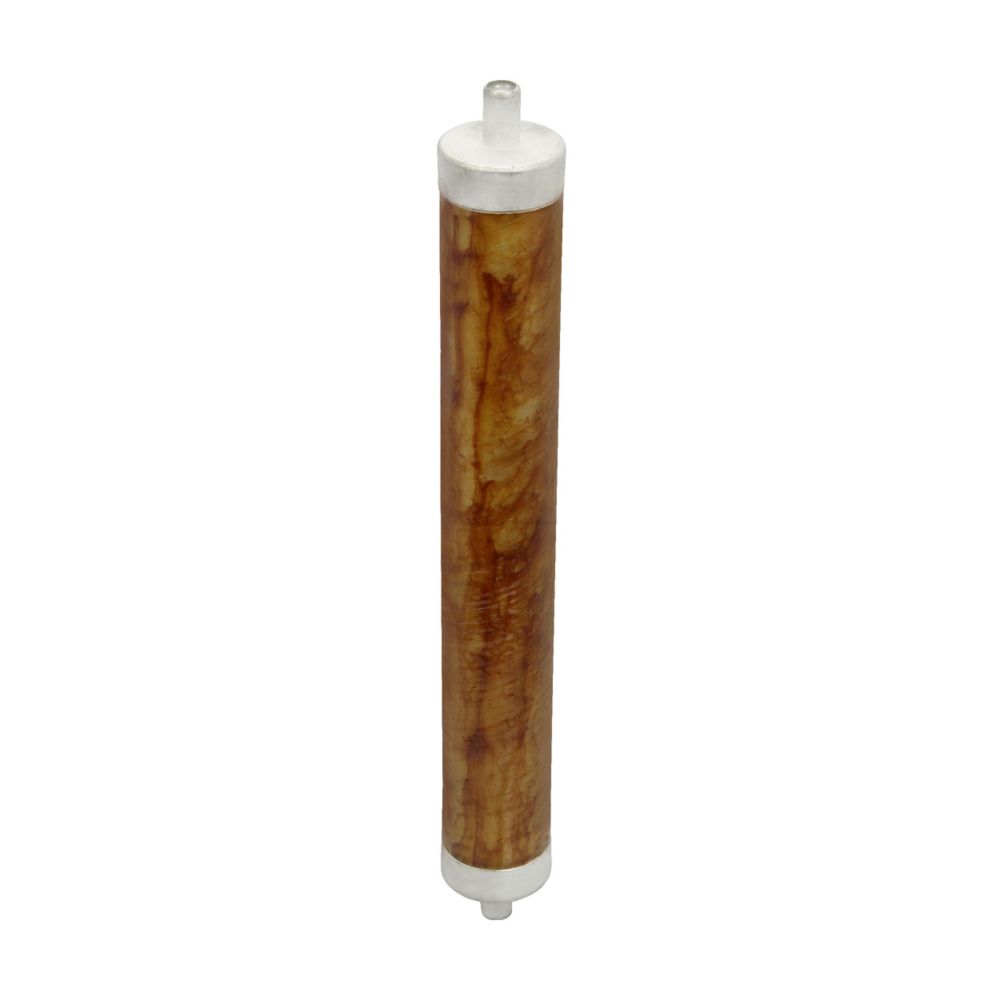

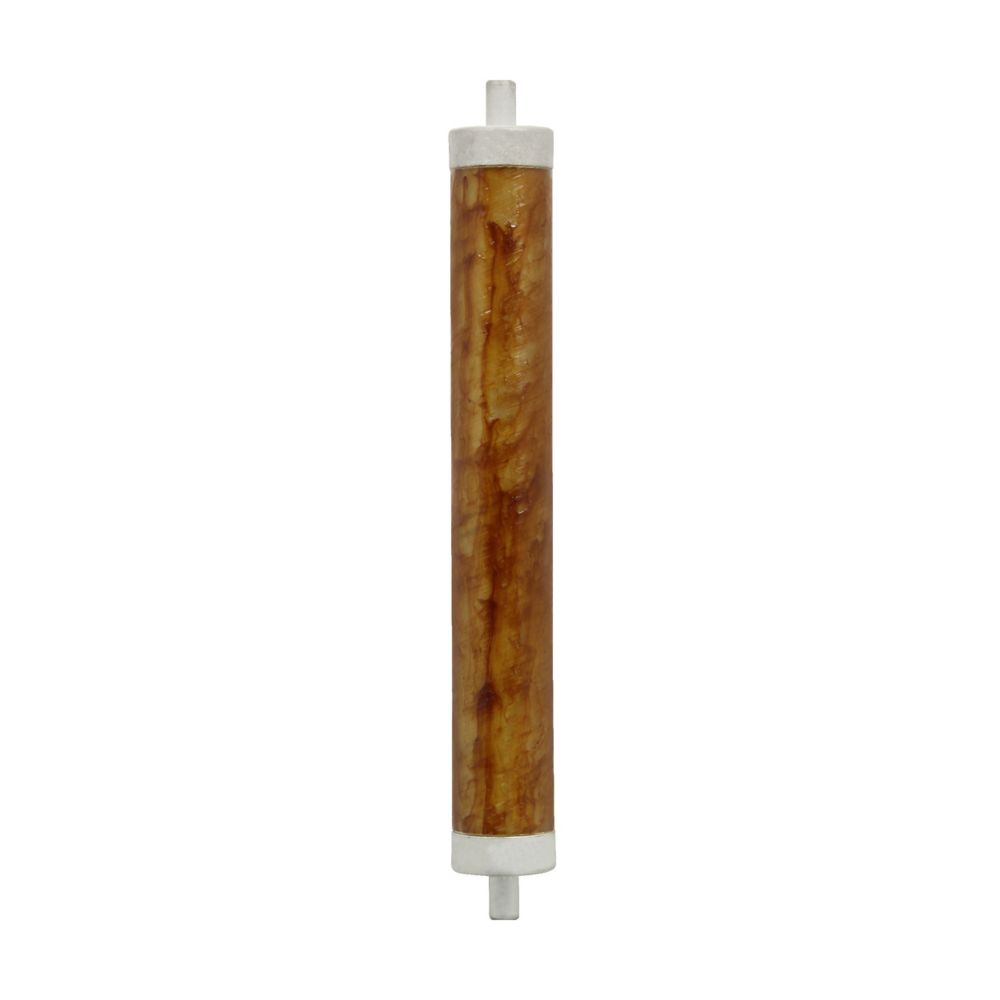

Eaton 3563030M11M - Medium Voltage Fuse 8300V/30A (Class C, NX Connection)

Eaton 3563030M11M is a medium voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. Rated for 8300V AC operation with a 30A current capacity, this Class C fuse features a robust single-barrel NX connection design with a 2-inch diameter and 3 lb weight. The unit meets industry standards for medium voltage applications, including UL/ANSI compliance for overcurrent protection. Typical applications include transformer protection, motor starters, and feeder circuits in utility and heavy industrial environments.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with silver-sand construction
• Voltage Rating: 8300V AC
• Current Rating: 30A
• Dimensions: 2" diameter
• Standards: UL/ANSI compliant
• Applications: Transformer protection, motor circuits, industrial feeders
• Class Rating: C
• Connection: NX
• Barrels: 1
• Weight: 3 lb
