Eaton 3563025M11M - Medium Voltage Fuse 8300V 25A (Class C, NX Connection)

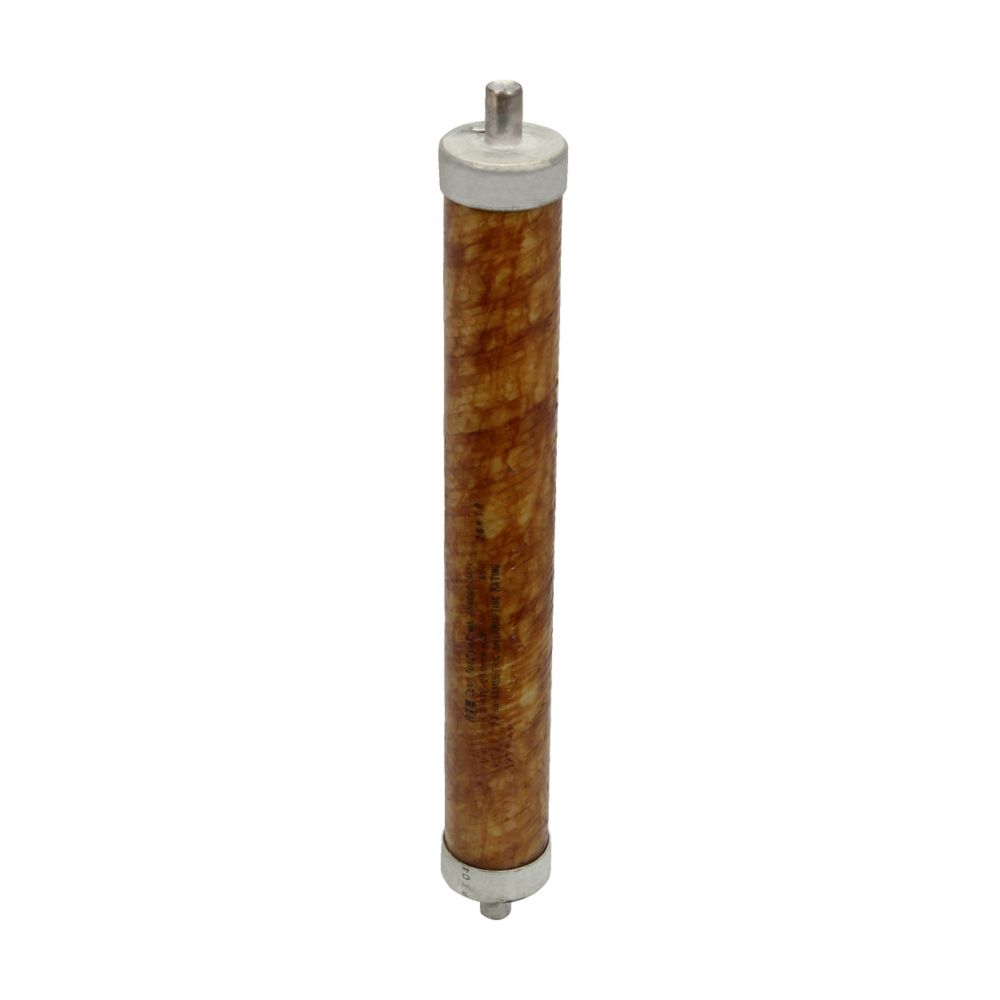

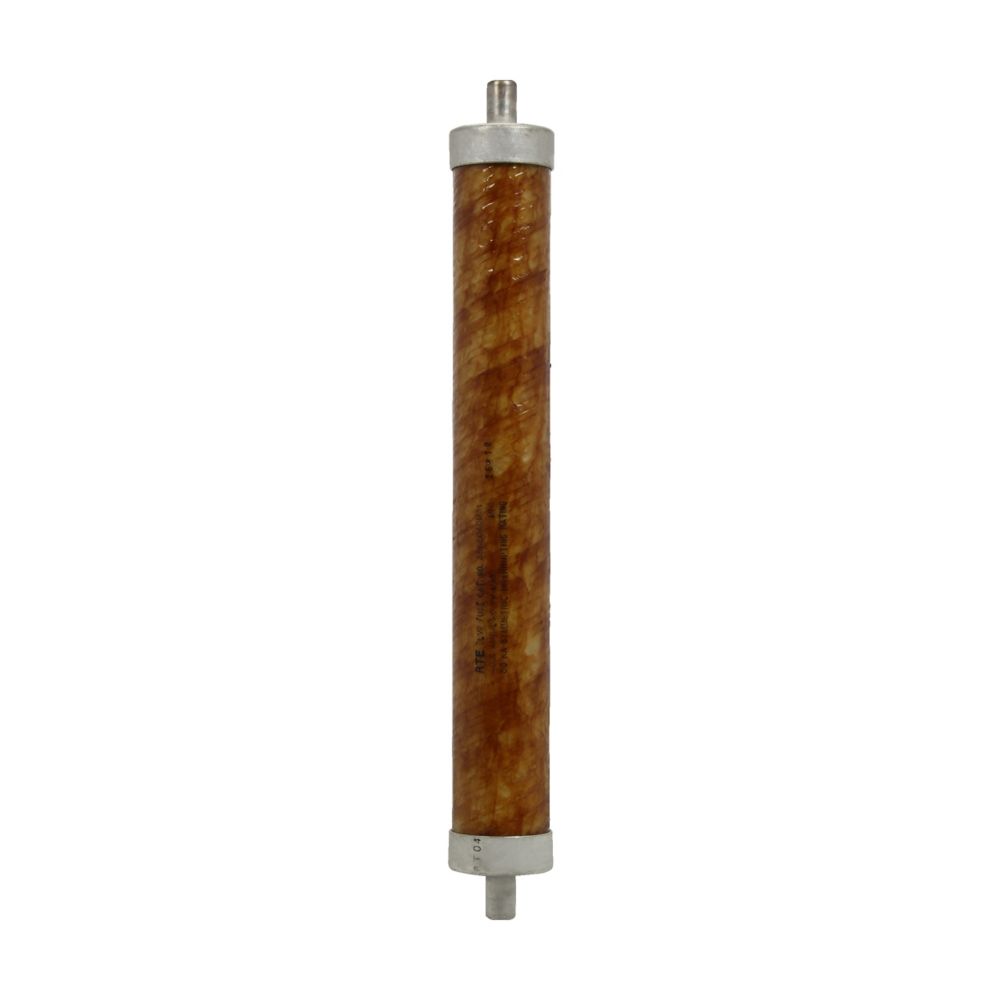

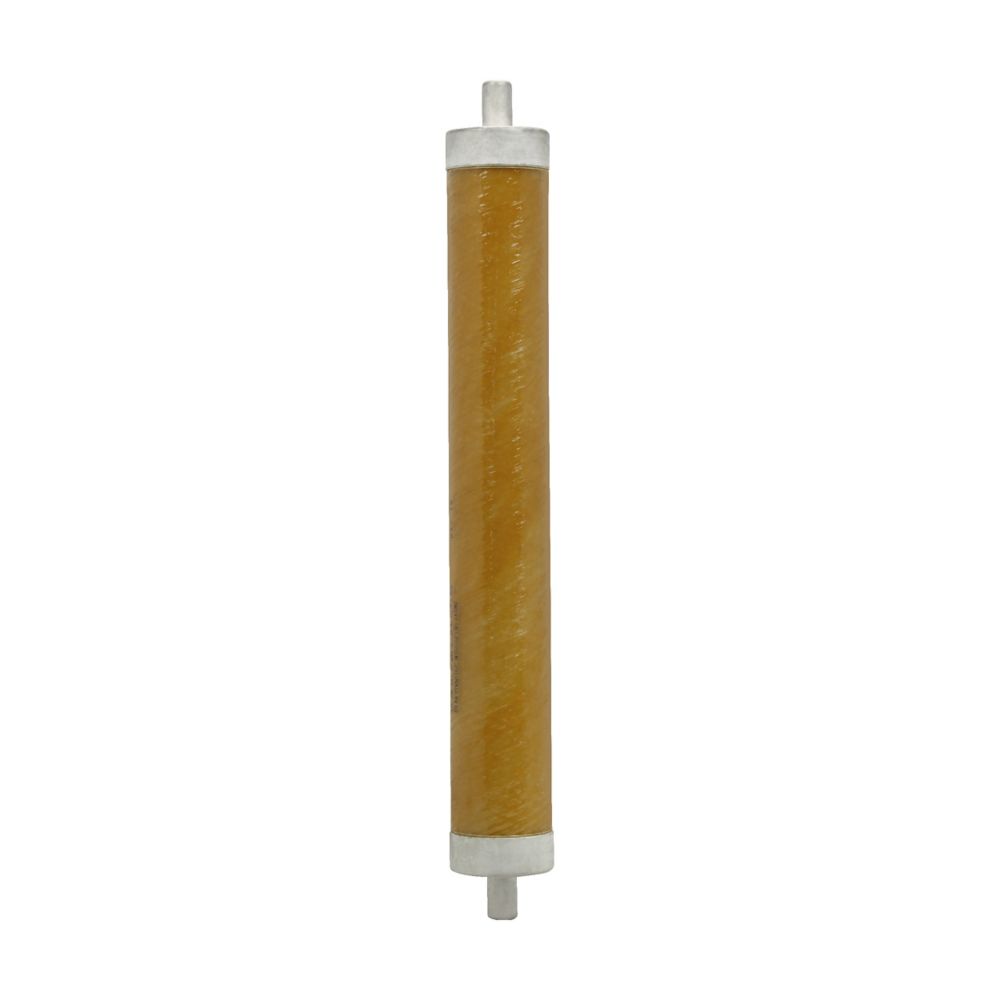

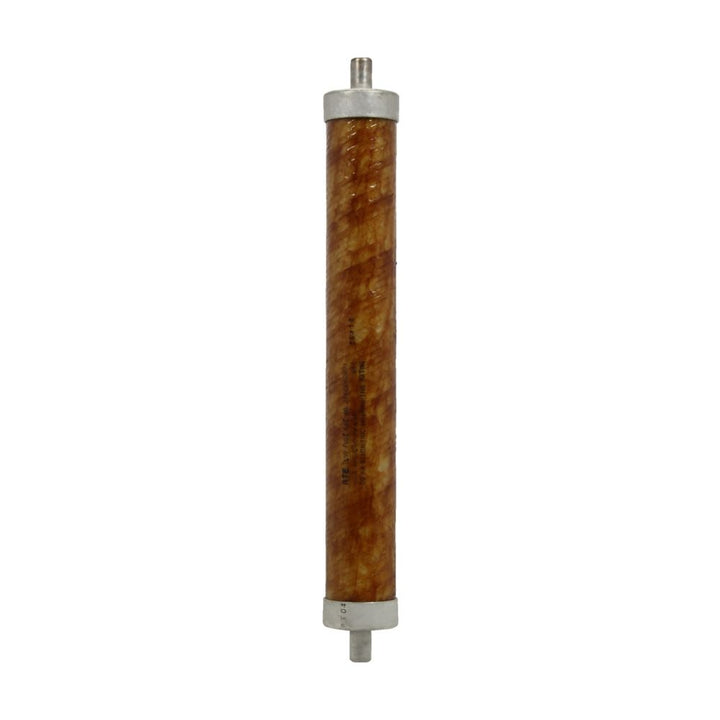

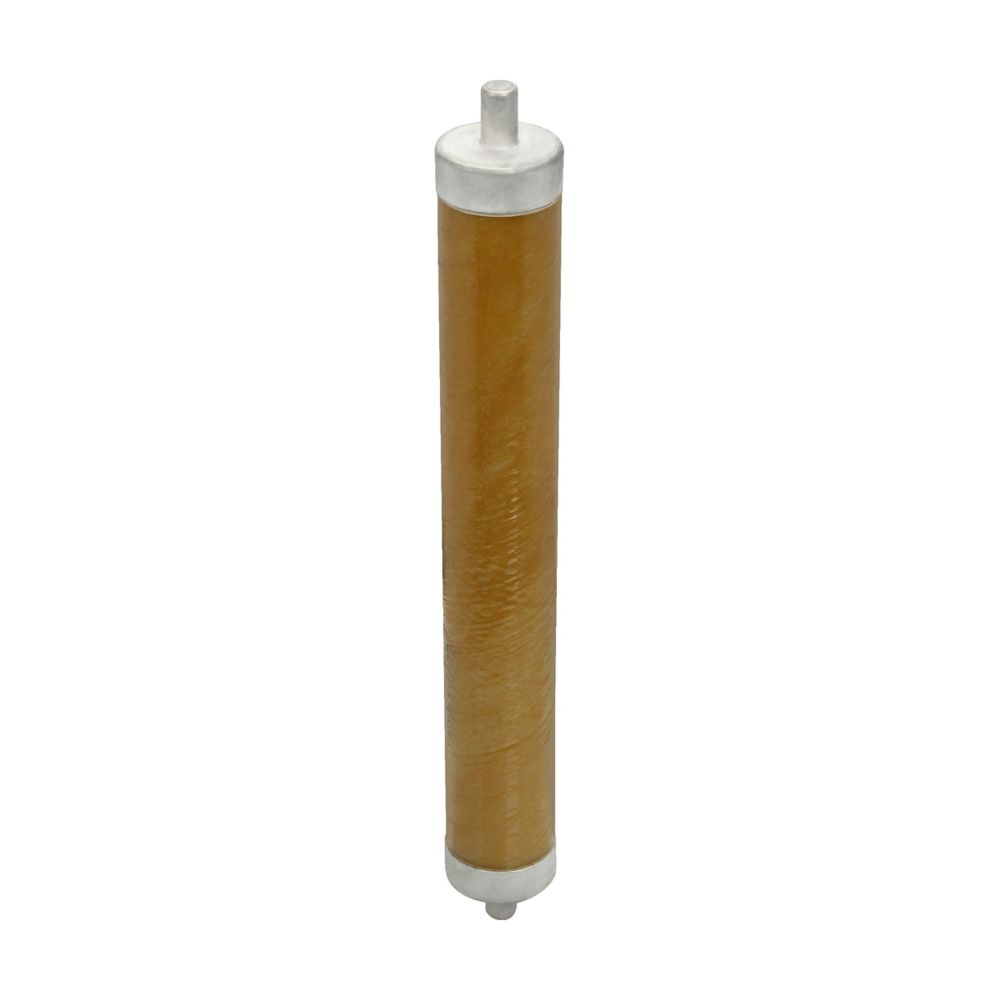

Eaton 3563025M11M is a medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. It features an 8300V voltage rating and 25A current capacity, engineered for reliable operation in demanding electrical environments. The fuse has a compact 2-inch diameter cylindrical design with NX-type connections and a single-barrel construction, weighing 3 lb for easy handling. It meets Class C rating standards for medium-voltage applications, ensuring compliance with industrial safety requirements. Typical applications include transformer protection, motor circuits, and switchgear in utility and heavy industrial settings.

Key Features & Specifications

• Type: Medium voltage fuse, single-barrel design with NX connection
• Voltage Rating: 8300V AC
• Current Rating: 25A
• Dimensions: 2-inch diameter cylindrical form factor
• Standards: Class C rated for medium-voltage protection
• Applications: Industrial power distribution, transformer/motor protection, switchgear
• Weight: 3 lb
• Connection Type: NX
• Barrels: 1
