Eaton 3563020M11M - Class C Medium Voltage Fuse 20A 8300V
3563020M11M Eaton Medium Voltage - Essential Electric Supply
3563020M11M Eaton Medium Voltage - Essential Electric Supply
3563020M11M Eaton Medium Voltage - Essential Electric Supply
3563020M11M Eaton Medium Voltage - Essential Electric Supply
Eaton 3563020M11M - Class C Medium Voltage Fuse 20A 8300V

Eaton 3563020M11M - Class C Medium Voltage Fuse 20A 8300V

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

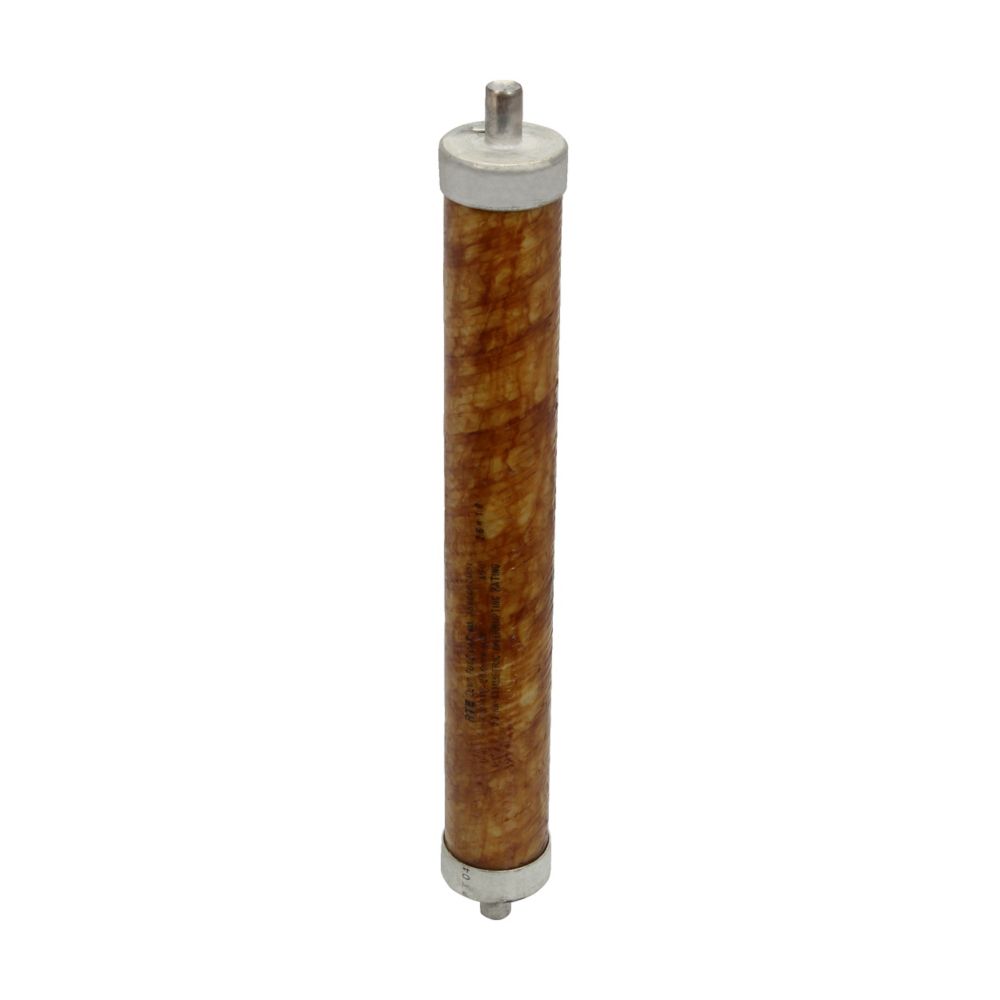

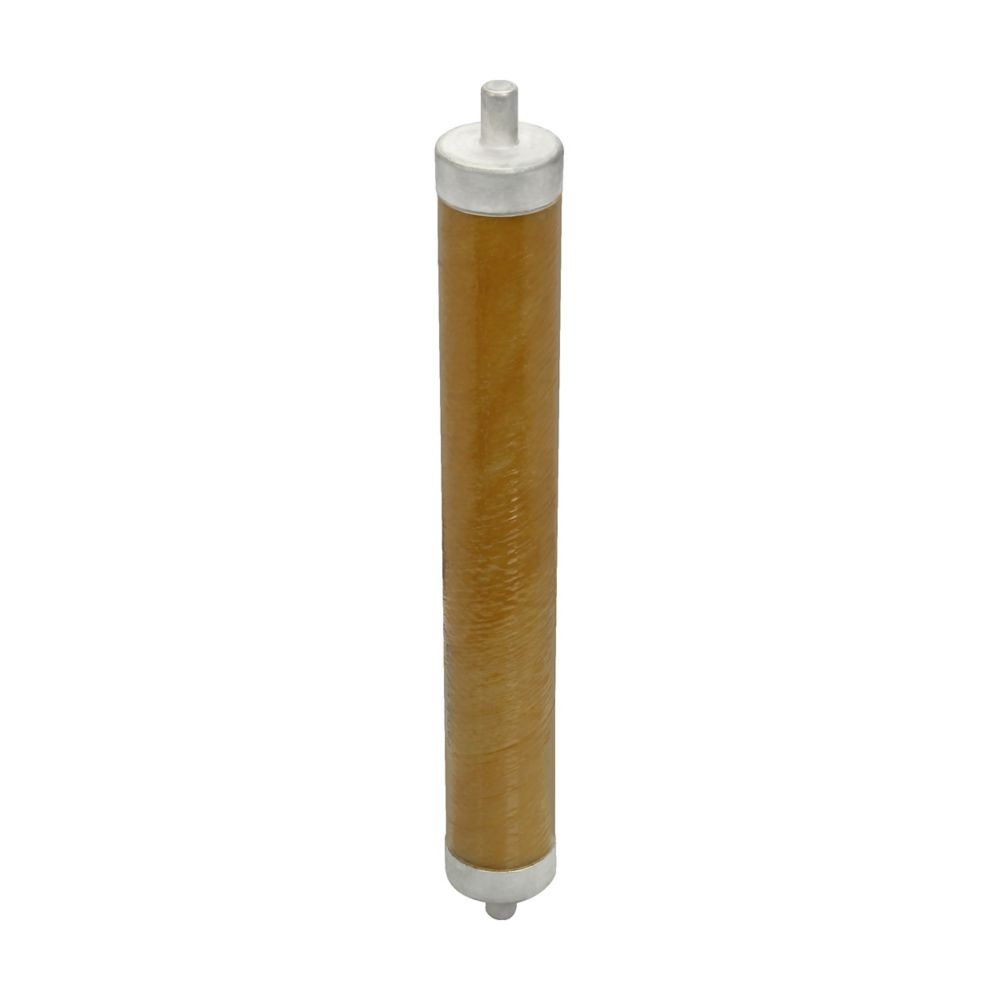

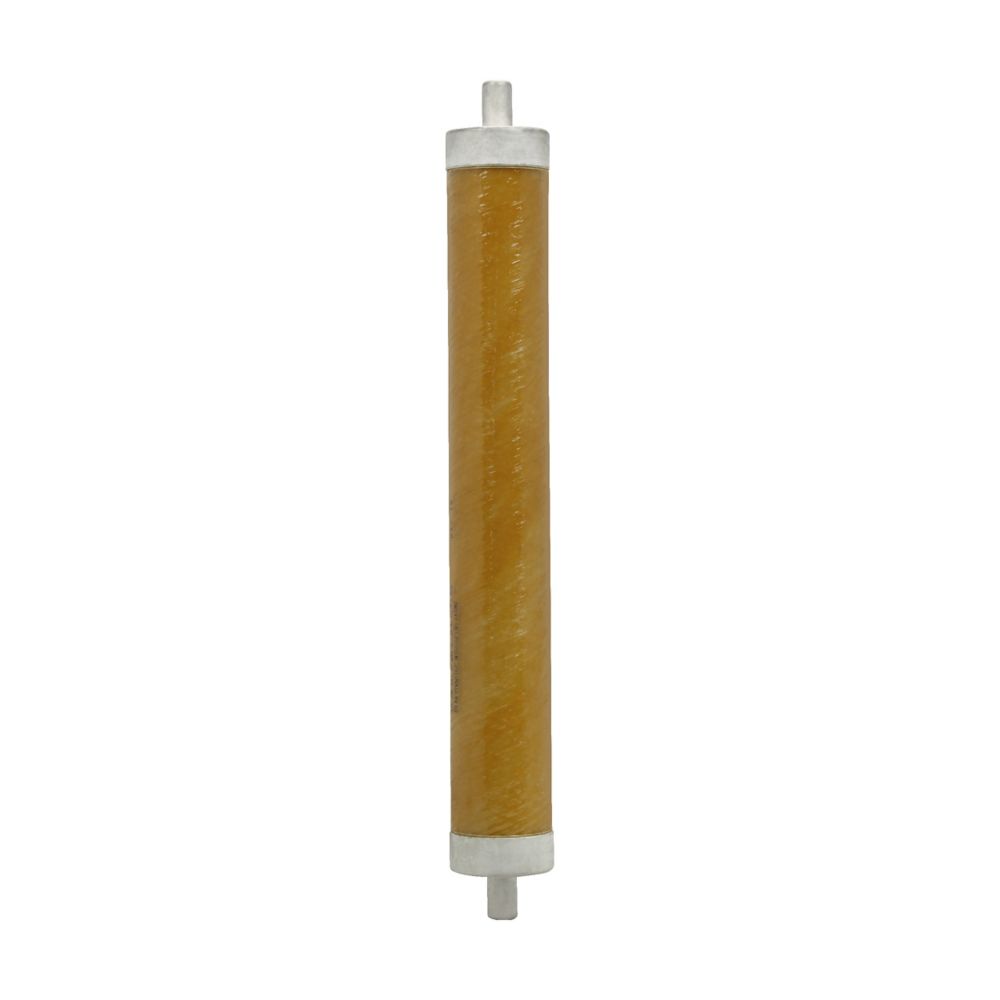

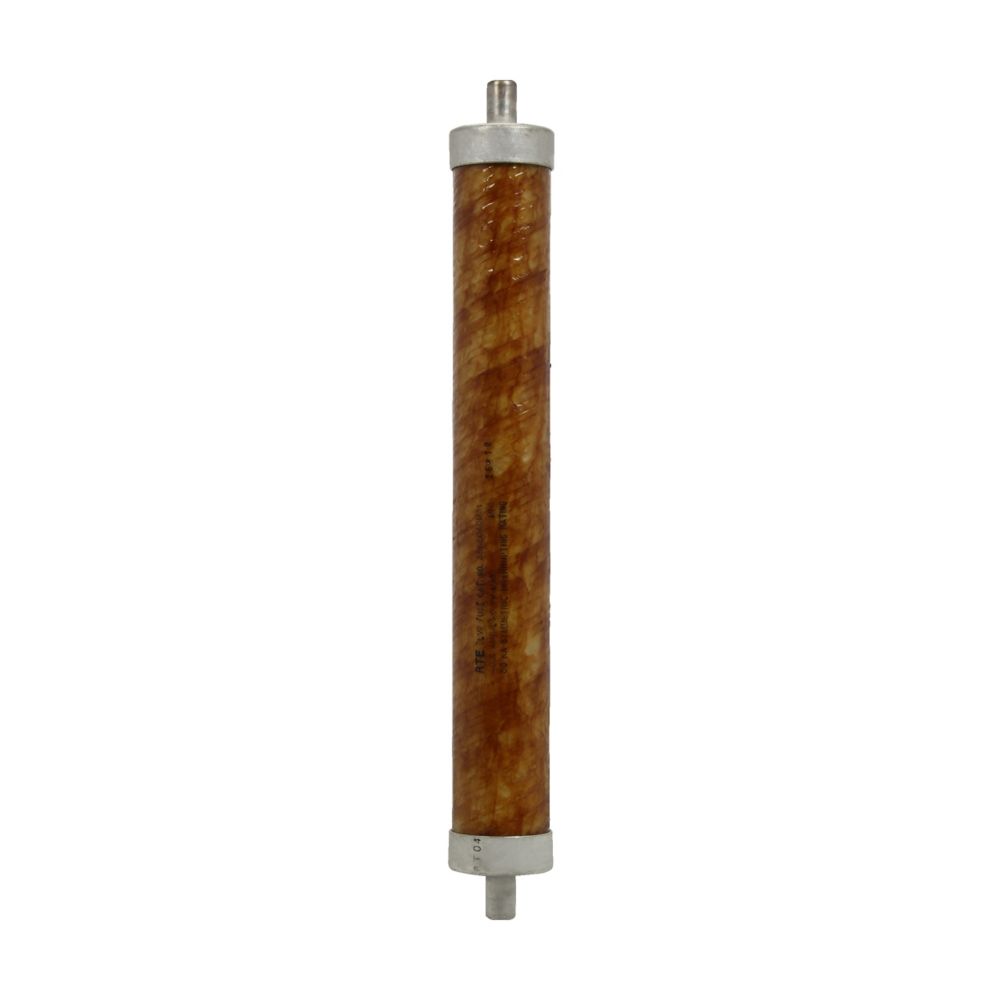

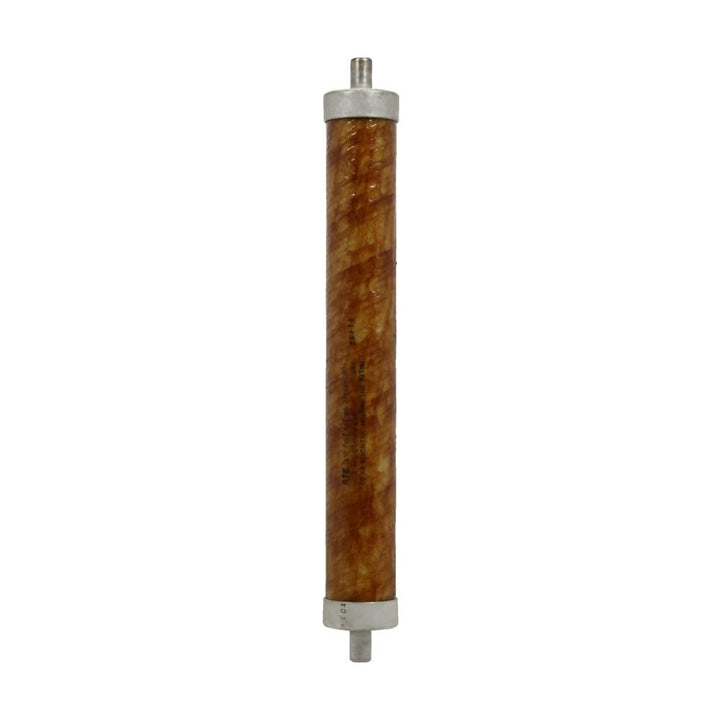

Eaton 3563020M11M is a medium-voltage current-limiting full-range fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides reliable overcurrent and short-circuit protection with a voltage rating of 8300V and a continuous current rating of 20A. The fuse features a robust single-barrel construction with an NX-style connection and a 2-inch diameter, contributing to its durable build for demanding environments. It complies with industry standards for Class C fuses, ensuring performance in applications such as motor protection, transformer protection, and feeder circuits within medium-voltage switchgear and control equipment.

Key Features & Specifications
  • Type: Current-limiting, full-range fuse, single barrel construction
  • Voltage Rating: 8300V
  • Current Rating: 20A
  • Dimensions: 2-inch diameter
  • Standards: Class C rating
  • Applications: Medium-voltage motor protection, transformer protection, feeder circuits
  • Connection: NX
  • Barrels: 1
  • Item Subcategory: Medium Voltage
  • Weight: 2.1 lb


Product Identification
  • UPC: 194006029179
