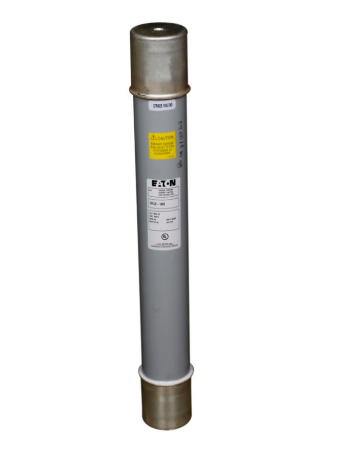

Eaton 3544025M61M - Medium Voltage Fuse 15.5kV 25A (50kA AIC Rating)

Eaton 3544025M61M is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 25A current rating with a 50kA interrupting capacity at 15.5kV for reliable fault protection. The fuse has a compact 2-inch diameter cylindrical design with Class C construction, weighing 4 lb, and features special connection terminals with 9.1-inch clip centers. It meets industry standards for medium voltage applications and is commonly used in transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with Class C rating
• Voltage Rating: 15,500V AC
• Current Rating: 25A
• Dimensions: 2" diameter
• Standards: IEEE/ANSI for medium voltage protection
• Applications: Transformer protection, motor circuits, feeder protection
• AIC rating: [email protected]
• Connection: Special terminals
• Barrels: 1
• Clip Center: 9.1 inches
• Weight: 4 lb
