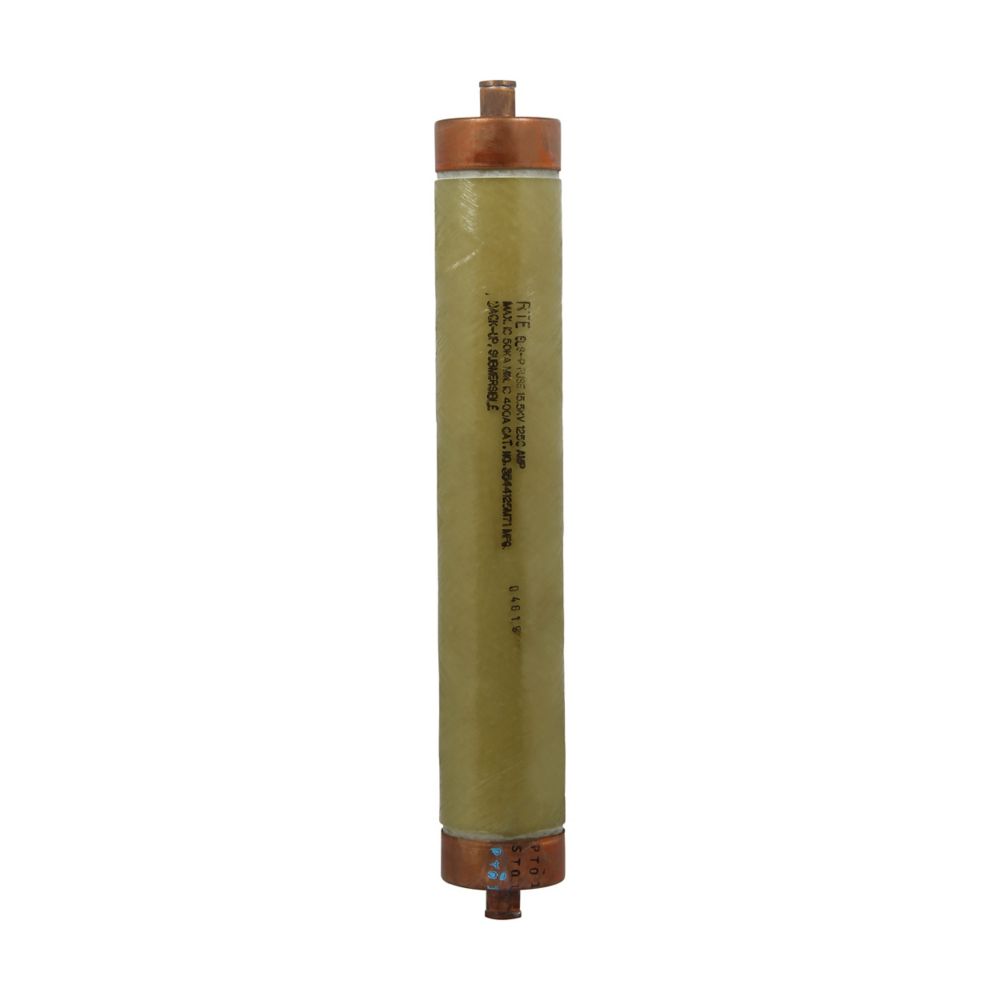

Eaton 3543100M51M - Medium Voltage Fuse 100A (8300V, 50kA AIC)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 3543100M51M is a medium voltage current limiting backup fuse designed to provide high-interrupting capacity protection for electrical equipment in industrial power distribution systems. It features a 100A current rating and an 8300V voltage rating, with a 50kA interrupting capacity at its rated voltage to safely clear high-level faults. The fuse is constructed as a single-barrel unit with a special connection type, a 2-inch diameter, and a Class C rating, meeting industry standards for medium voltage applications. This fuse is engineered for compliance with relevant electrical protection standards and is typically applied in demanding industrial environments such as motor protection, transformer protection, and feeder circuit backup within medium voltage switchgear and control equipment.

Key Features & Specifications
  • Type: Medium voltage, current limiting backup fuse, single-barrel construction with special connection
  • Voltage Rating: 8300V
  • Current Rating: 100A
  • Dimensions: 2-inch diameter
  • Standards: Class C rated
  • Applications: Industrial power distribution, motor protection, transformer protection, feeder circuit backup
  • AIC rating: 50kA @ 8.3kV
  • Section: Current limiting backup fuse
  • Item Subcategory: Medium Voltage
  • Barrels: 1
  • Connection: Special
  • Class Rating: C
  • Weight: 2 lb


Product Identification
  • UPC: 194006026321
