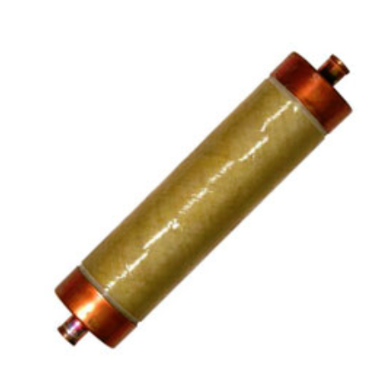

Eaton 3535020M11M - Medium Voltage Fuse 23kV/20A (Class C Single-Barrel)

Eaton 3535020M11M is a medium voltage fuse designed for high-voltage circuit protection in industrial power systems. This Class C fuse features a 23kV voltage rating and 20A current capacity, housed in a durable single-barrel construction with a 2-inch diameter. Its special connection design meets stringent industry standards for medium voltage applications, including UL/ANSI compliance. The 5 lb unit provides reliable overcurrent protection for transformers, motors, and switchgear in utility and heavy industrial environments.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class C rating
• Voltage Rating: 23,000V AC
• Current Rating: 20A
• Dimensions: 2" diameter single-barrel construction
• Standards: UL/ANSI compliant for medium voltage applications
• Applications: Transformer protection, motor circuits, industrial switchgear
• Connection: Special termination design
• Weight: 5 lb
