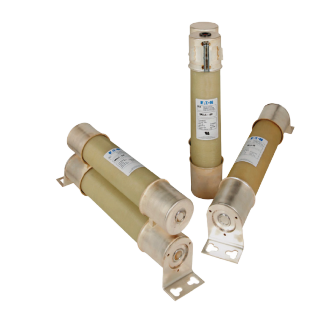

Eaton 309C660G18 - Medium Voltage Fuse 3A 5080V (Class R)
Eaton 309C660G18 - Medium Voltage Fuse 3A 5080V (Class R)

Eaton 309C660G18 - Medium Voltage Fuse 3A 5080V (Class R)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Eaton 309C660G18 is a medium-voltage current-limiting fuse designed for robust circuit protection in industrial power distribution systems. It features a 5080V voltage rating and 3A current rating, providing reliable overcurrent protection for medium-voltage applications. Constructed with a single-barrel ferrule connection and 3-inch diameter, this Class R fuse offers a 14-inch clip center spacing for secure mounting in compatible fuse holders. Engineered to meet industry standards for medium-voltage protection, this fuse is typically employed in motor control centers, transformer protection, and industrial power distribution equipment where high-interrupting capacity and current-limiting characteristics are required.

Key Features & Specifications
  • Type: Medium-voltage current-limiting fuse with ferrule connection
  • Voltage Rating: 5080V AC
  • Current Rating: 3A
  • Dimensions: 3-inch diameter
  • Standards: Class R rated
  • Applications: Industrial power distribution, motor control centers, transformer protection
  • Connection: Ferrule
  • Barrels: 1
  • Clip Center: 14 inches
  • Class Rating: R
  • Weight: 10 lb
