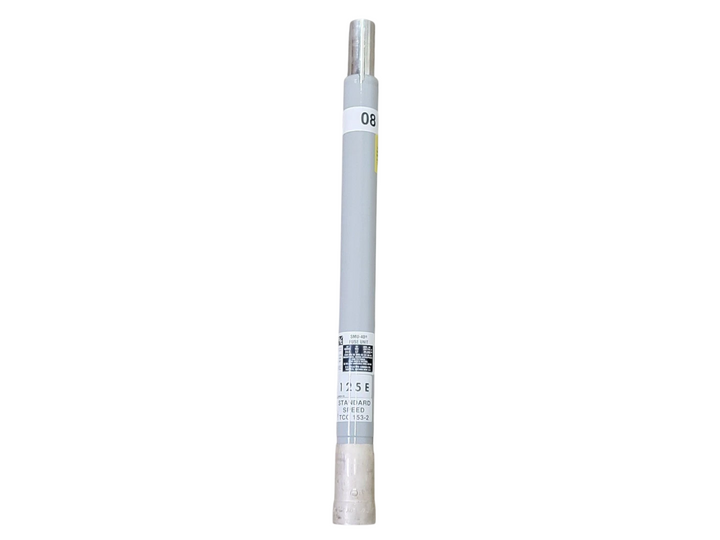

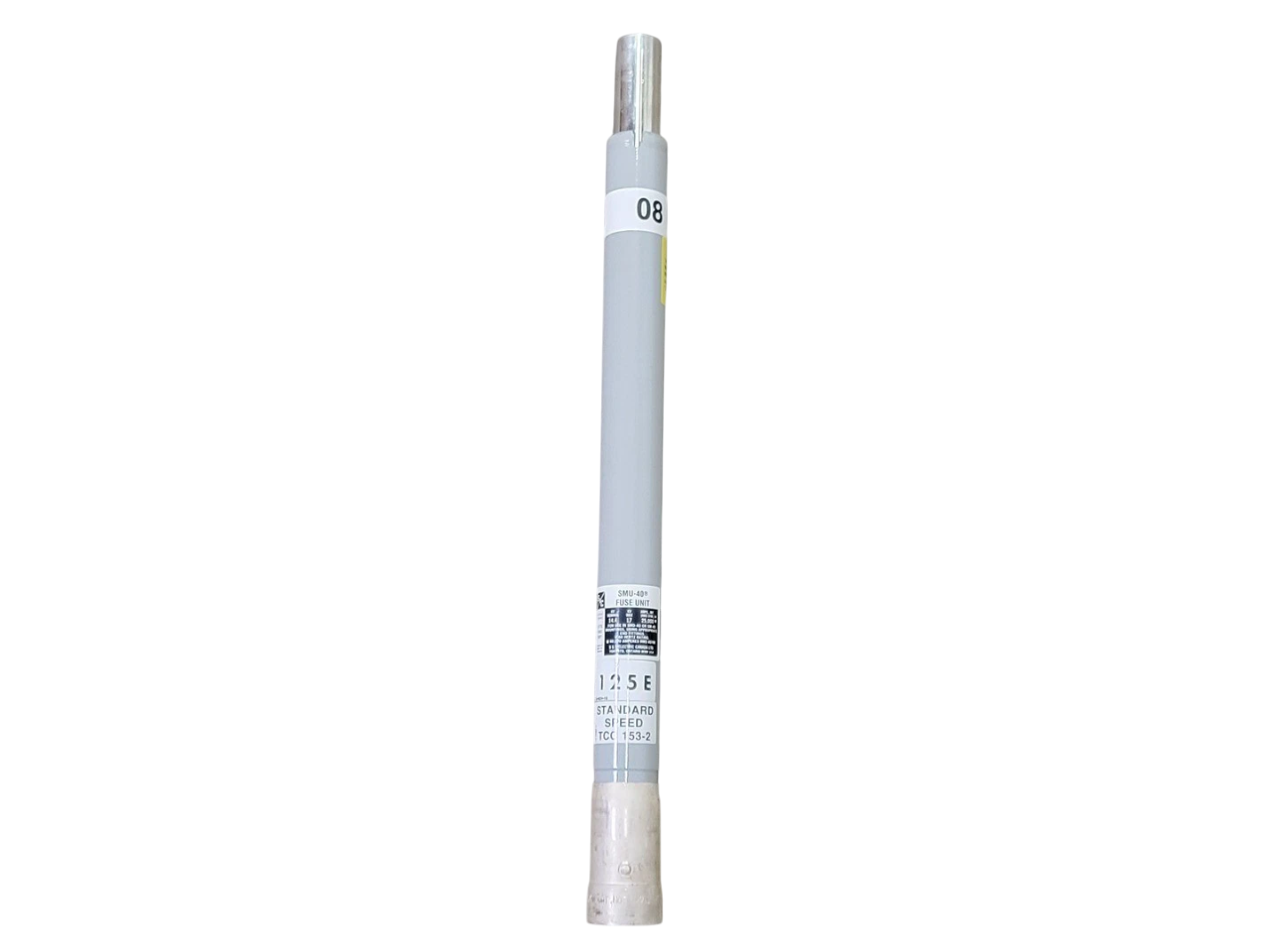

S&C Electric 3097 - SMU-20 High-Voltage Fuse 15.5kV/200A (IEC 60282-1 Compliant)

S&C Electric 3097 is a high-voltage current-limiting fuse designed for protecting electrical distribution systems from short-circuit faults. The fuse features a 15.5 kV voltage rating and 200A continuous current capacity in a compact, durable SMU-20 design with copper end fittings. Its sand-filled construction provides reliable arc quenching while meeting IEC 60282-1 standards for high-voltage fuses. The unit weighs 10 lb and is commonly deployed in industrial switchgear, transformers, and capacitor bank protection applications.

Key Features & Specifications

• Type: SMU-20 current-limiting fuse with sand-filled quartz and copper end fittings
• Voltage Rating: 15.5 kV
• Current Rating: 200A continuous
• Dimensions: 292mm length x 76mm diameter
• Standards: IEC 60282-1 compliant
• Applications: Industrial switchgear, transformer protection, capacitor banks
• Weight: 10 lb
• Construction: Sand-filled quartz with copper terminals
• Country of Origin: Denmark
• Section: End Fittings
