Bussmann 3.6CAV2 - Medium Voltage Fuse 2A 3600V (50kA AIC)
3.6CAV2 Bussmannn CAV Medium Voltage Fuse 3600V 2A Fuse - Essential Electric Supply
Bussmann 3.6CAV2 - Medium Voltage Fuse 2A 3600V (50kA AIC)

Bussmann 3.6CAV2 - Medium Voltage Fuse 2A 3600V (50kA AIC)

Bussmann
Price
Save $-1,054.03
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

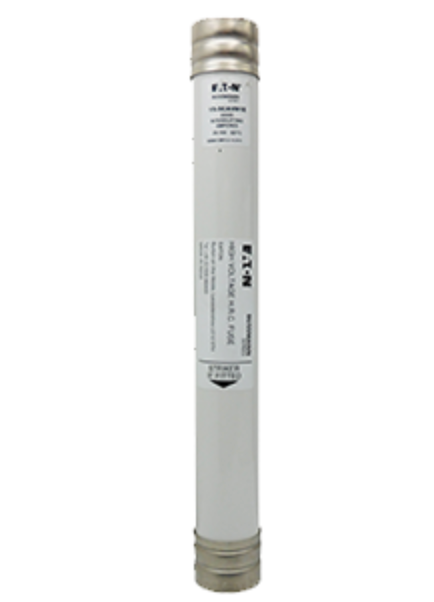

Bussmann 3.6CAV2 is a medium voltage current-limiting fuse designed for protecting transformers, motors, and feeders in industrial power systems. It features a 3600V AC voltage rating and a 2A current rating, housed within a robust single-barrel construction measuring 221 mm in length with a 41 mm x 41 mm cross-section and a 1.63-inch diameter. This Class E fuse complies with industry standards for medium voltage protection and is engineered for applications requiring a high 50kA interrupting rating at 3.6kV, such as in switchgear and motor control centers.

Key Features & Specifications
  • Type: CAV series, medium voltage, current-limiting, single-barrel fuse
  • Voltage Rating: 3600V AC
  • Current Rating: 2A
  • Dimensions: 221 mm x 41 mm x 41 mm (L x H x W)
  • Weight: 1.61 lb
  • Diameter: 1.63 in
  • Class Rating: E
  • AIC Rating: 50kA at 3.6kV
  • Clip Center: 7.46 in
  • Barrels: 1
  • Standards: Designed to meet industry standards for medium voltage fuses
  • Applications: Protection for transformers, motors, feeders, and switchgear


Product Identification
  • UPC: 05171283468
  • GTIN: 00051712834681
