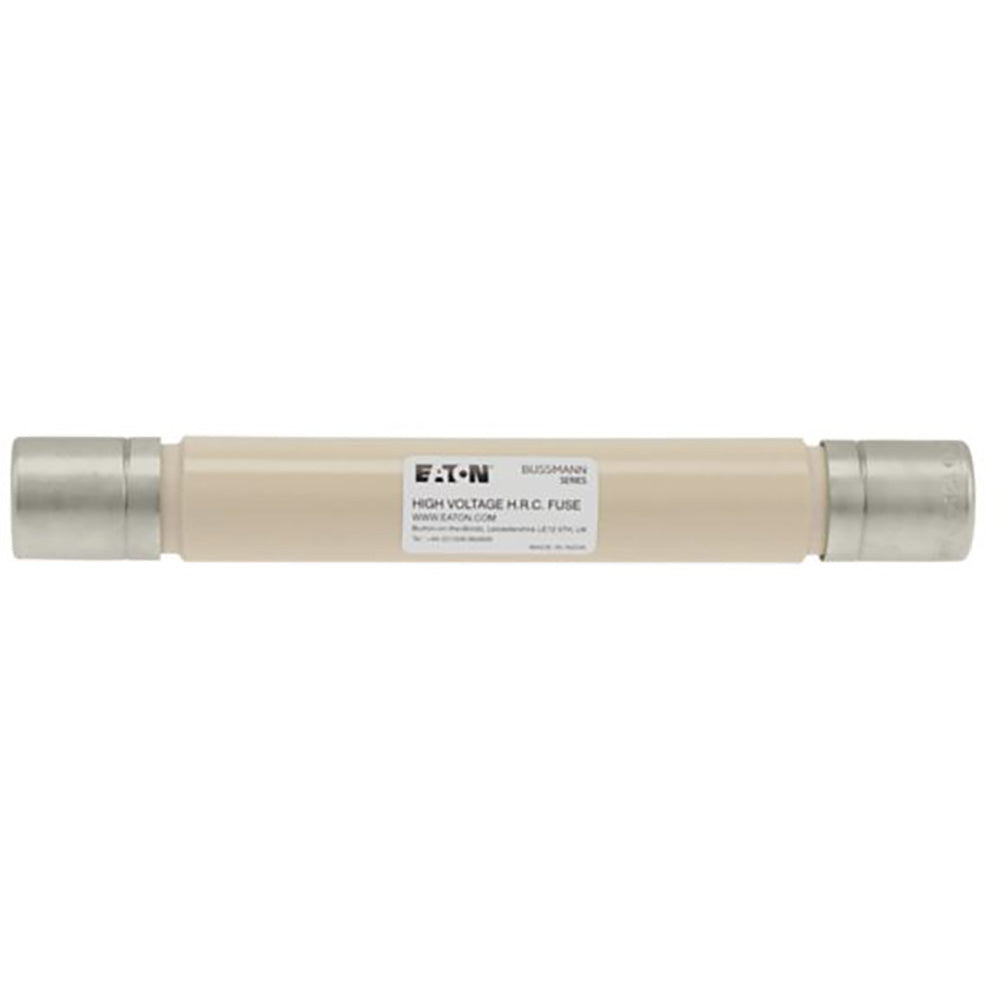

Bussmann 3.6ABCNA6.3 - Medium Voltage Fuse 6.3A (Class E, 3600V)

Bussmann 3.6ABCNA6.3 is a medium voltage current-limiting fuse designed for protecting electrical equipment and conductors from short-circuit and overload conditions in industrial power systems. It features a 3600V AC voltage rating and a 6.3A current rating, providing precise overcurrent protection for medium voltage circuits. The fuse is constructed as a single-barrel unit with a 1-inch diameter and utilizes a specific design to achieve its current-limiting characteristics and a 50kA interrupting rating at 3.6kV. This Class E fuse complies with industry standards for medium voltage protection, ensuring reliable performance in demanding environments. Typical applications include the protection of transformers, motors, and feeders in industrial facilities and utility power distributions systems.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, Class E, Single Barrel
• Voltage Rating: 3600V AC
• Current Rating: 6.3A
• Dimensions: 1" Diameter, 6.51" Clip Center
• Standards: Class E
• Applications: Transformer, Motor, and Feeder Protection
• AIC rating: 50kA @ 3.6kV
• Barrels: 1
• Class Rating: E
• Diameter: 1 inch
• Clip Center: 6.51 inches
• Weight: 5 lb

Product Identification

• UPC: 05171283461
• GTIN: 00051712834612
