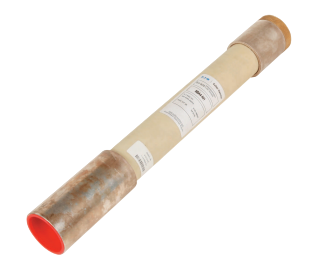

Eaton 25RBA4-250E - Medium Voltage Fuse Refill 250A @ 23kV
Eaton 25RBA4-250E - Medium Voltage Fuse Refill 250A @ 23kV

Eaton 25RBA4-250E - Medium Voltage Fuse Refill 250A @ 23kV

Eaton
Price
Save $-152.92
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 25RBA4-250E is a medium voltage current-limiting fuse refill designed for the protection of transformers, motors, and feeders in industrial power systems. It features a 250A current rating and a 23kV voltage rating, with a single-barrel, standard-velocity design housed within a compact 10" x 2" x 2" form factor. Constructed as a Class E fuse, it is engineered to interrupt high fault currents up to 21kA at 23kV and is certified to IEEE Std. C37.41 for reliable performance in demanding electrical environments.

Key Features & Specifications
  • Type: RBA4 medium voltage current-limiting fuse refill, single barrel, standard velocity
  • Voltage Rating: 23000V AC
  • Current Rating: 250A
  • Dimensions: 10 in (Length) x 2 in (Height) x 2 in (Width)
  • Weight: 2.7 lb
  • Standards: Certified to IEEE Std. C37.41
  • AIC Rating: 21kA @ 23kV
  • Class Rating: E
  • Barrels: 1
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667023427
  • GTIN: 00786670234272
