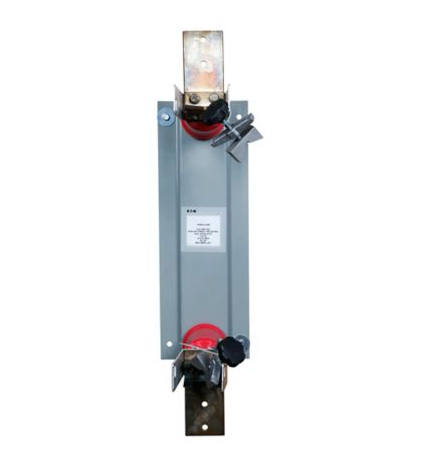

Eaton 25RBA4-200E is a medium voltage current-limiting fuse refill designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 200A current rating and a 23kV voltage rating, with a high interrupting capacity of 21kA to safely clear fault currents. The unit is constructed as a single-barrel, Class E fuse with a standard velocity characteristic and measures 15.2 in length by 2.5 in by 2.5 in, weighing 2.7 lb. It is engineered and tested to comply with the IEEE Std. C37.41 standard, ensuring reliable performance in demanding medium-voltage applications such as utility substations and large industrial facilities.

Key Features & Specifications
  • Type: RBA4 medium voltage, current-limiting fuse refill
  • Voltage Rating: 23000V
  • Current Rating: 200A
  • Dimensions: 15.2 in x 2.5 in x 2.5 in (L x H x W)
  • Weight: 2.7 lb
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, motor, and feeder protection
  • Class Rating: E
  • Barrels: 1
  • Velocity: Standard
  • AIC rating: 21kA @ 23kV


Product Identification
  • UPC: 78667023420
  • GTIN: 00786670234203
