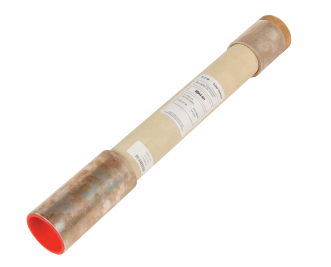

Eaton 25RBA4-125E is a medium voltage fuse refill designed for overcurrent protection in high-voltage power distribution systems. It provides a 125A current rating and a 23kV voltage rating for robust circuit protection, housed in a single-barrel, standard-velocity construction measuring 15.3 in x 2.5 in x 2.5 in and weighing 2.7 lb. The fuse is certified to IEEE Std. C37.41 and features an E class rating with an interrupting capacity of 21kA at 23kV, ensuring reliable performance. It is typically applied in industrial and utility medium-voltage equipment for feeder and transformer protection.

Key Features & Specifications
  • Type: RBA4 medium voltage fuse refill, single-barrel, standard-velocity
  • Voltage Rating: 23000V
  • Current Rating: 125A
  • Dimensions: 15.3 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
  • Weight: 2.7 lb
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Overcurrent protection for medium-voltage power distribution, feeders, and transformers
  • Class Rating: E
  • AIC rating: 21kA@23kV
  • Barrels: 1
  • Velocity: Standard
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667023405
  • GTIN: 00786670234050
