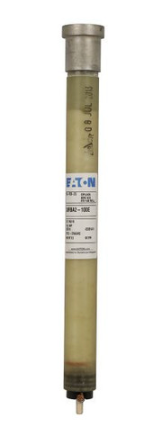

Cutler Hammer 25RBA2-30E - Medium Voltage Fuse 30A 23kV (Class E)
Cutler Hammer 25RBA2-30E - Medium Voltage Fuse 30A 23kV (Class E)

Cutler Hammer 25RBA2-30E - Medium Voltage Fuse 30A 23kV (Class E)

Cutler Hammer
Price
Save $495
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer 25RBA2-30E is a medium voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 30A current rating and a 23kV voltage rating, providing a 10.5kA interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel, Class E device with a standard velocity characteristic and measures 15.3 in x 2.5 in x 2.4 in (L x H x W) with a weight of 2.7 lb. It is engineered and tested to comply with IEEE Standard C37.41, ensuring reliable performance in demanding medium-voltage applications such as switchgear, motor starters, and transformer protection.

Key Features & Specifications
  • Type: RBA2 Medium Voltage Current-Limiting Power Fuse, Single Barrel
  • Voltage Rating: 23000V
  • Current Rating: 30A
  • Dimensions: 15.3 in x 2.5 in x 2.4 in (Length x Height x Width)
  • Weight: 2.7 lb
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, Motor, and Feeder Protection
  • Class Rating: E
  • AIC rating: 10.5kA@23kV
  • Velocity: Standard
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667023049
  • GTIN: 00786670230496
