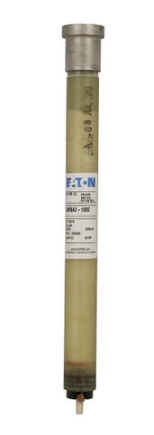

Cutler Hammer 25RBA2-25E - Medium Voltage Fuse Refill 25A 23kV
Cutler Hammer 25RBA2-25E - Medium Voltage Fuse Refill 25A 23kV

Cutler Hammer 25RBA2-25E - Medium Voltage Fuse Refill 25A 23kV

Cutler Hammer
Price
Save $2,529.99
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer 25RBA2-25E is a medium voltage current-limiting fuse refill designed for protecting electrical equipment in industrial power distribution systems up to 23kV. It provides a 25A current rating and a 10.5kA interrupting capacity at its rated voltage of 23,000V. The fuse features a single-barrel, standard-velocity RBA2 design with compact dimensions of 11.1 x 1.5 x 1.5 inches and a weight of 2.4 lb, constructed for reliable performance. This Class E fuse is engineered for compliance with industry standards for medium voltage protection, making it suitable for applications in motor control centers, transformers, and feeder circuits.

Key Features & Specifications
  • Type: RBA2, single-barrel, standard-velocity, current-limiting fuse refill
  • Voltage Rating: 23,000V AC
  • Current Rating: 25A
  • Dimensions: 11.1 in (L) x 1.5 in (H) x 1.5 in (W)
  • Standards: Class E rating
  • Applications: Industrial power distribution, motor protection, transformer protection
  • AIC Rating: 10.5kA at 23kV
  • Weight: 2.4 lb
  • Barrels: 1
  • Velocity: Standard


Product Identification
  • UPC: 78667023458
  • GTIN: 00786670234586
