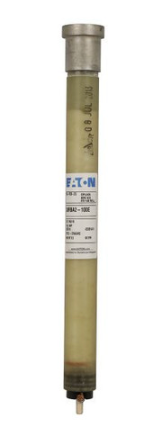

Cutler Hammer 25RBA2-200E - Medium Voltage Fuse Refill 200A 23kV
Cutler Hammer 25RBA2-200E - Medium Voltage Fuse Refill 200A 23kV
Cutler Hammer 25RBA2-200E - Medium Voltage Fuse Refill 200A 23kV
Cutler Hammer 25RBA2-200E - Medium Voltage Fuse Refill 200A 23kV

Cutler Hammer 25RBA2-200E - Medium Voltage Fuse Refill 200A 23kV

Cutler Hammer
Price
Save $-41.27
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer 25RBA2-200E is a medium voltage current-limiting fuse refill designed for protecting electrical equipment in industrial power distribution systems. It provides a 200A current rating and a 23kV voltage rating for reliable overcurrent protection, with a 10.5kA interrupting rating at 23kV. The single-barrel, Class E fuse is constructed to IEEE Std. C37.41 standards, featuring a standard velocity design with dimensions of 15.3 in x 2.2 in x 2.2 in and a weight of 1.3 lb. This fuse is engineered for use in medium-voltage switchgear, motor starters, and transformer protection applications where high-performance current limitation is required.

Key Features & Specifications
  • Type: RBA2, Medium Voltage Fuse Refill, Current-Limiting, Single Barrel
  • Voltage Rating: 23000V
  • Current Rating: 200A
  • Dimensions: 15.3 in (Length/Depth) x 2.2 in (Height) x 2.2 in (Width)
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Medium-voltage switchgear, transformer protection, motor circuit protection
  • Class Rating: E
  • AIC rating: 10.5kA@23kV
  • Velocity: Standard
  • Weight: 1.3 lb
  • Country of Origin: Dominican Republic
  • Section: Fuse Refills


Product Identification
  • UPC: 78667023099
  • GTIN: 00786670230991
