Cutler Hammer 25RBA2-150E - Medium Voltage Fuse 150A 23kV
Cutler Hammer 25RBA2-150E - Medium Voltage Fuse 150A 23kV
Cutler Hammer 25RBA2-150E - Medium Voltage Fuse 150A 23kV
Cutler Hammer 25RBA2-150E - Medium Voltage Fuse 150A 23kV

Cutler Hammer 25RBA2-150E - Medium Voltage Fuse 150A 23kV

Cutler Hammer
Price
Save $495
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

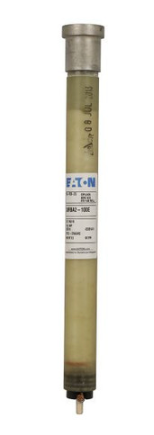

Cutler Hammer 25RBA2-150E is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 150A current rating and a 23kV voltage rating, with a single-barrel construction housed in a 15.3-inch long, 2.5-inch high, and 2.4-inch wide fiberglass-reinforced epoxy tube. This fuse is engineered to IEEE Std. C37.41 standards, providing a 10.5kA interrupting capacity at 23kV for reliable protection against high fault currents. Its Class E rating and standard velocity characteristics make it suitable for demanding applications in utility and industrial switchgear.

Key Features & Specifications
  • Type: RBA2, Medium Voltage Current-Limiting Fuse, Single Barrel
  • Voltage Rating: 23000V AC
  • Current Rating: 150A
  • Dimensions: 15.3 in L x 2.5 in H x 2.4 in W (388.6 mm x 63.5 mm x 61 mm)
  • Weight: 2.7 lb (1.22 kg)
  • Standards: Certified to IEEE Std. C37.41
  • AIC Rating: 10.5kA @ 23kV
  • Class Rating: E
  • Velocity: Standard
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 78667023092
  • GTIN: 00786670230922
