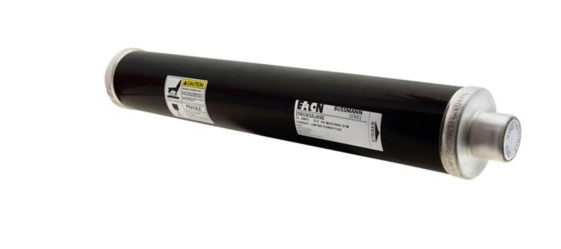

Bussmann 258GXQSJ65ES - Class E Medium Voltage Fuse 65A (25.8kV, 25kA AIC)

Bussmann 258GXQSJ65ES is a Class E medium-voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It features a 25,800V AC voltage rating and 65A current rating with an interrupting capacity of 25kA at 25.8kV for reliable circuit protection. The fuse construction includes a single-barrel design with DIN connection system, measuring 89mm in diameter and weighing 17 lb for robust industrial applications. This fuse complies with industry standards for medium-voltage protection and is typically used in motor control centers, transformers, and switchgear installations where high-voltage circuit interruption is required.

Key Features & Specifications

• Type: Class E current-limiting fuse, single-barrel construction
• Voltage Rating: 25,800V AC
• Current Rating: 65A
• Dimensions: 89mm diameter
• Standards: Medium voltage industrial protection standards
• Applications: Industrial power distribution, motor control centers, transformers, switchgear
• AIC rating: [email protected]
• Connection: DIN
• Barrels: 1
• Class Rating: E
• Weight: 17 lb
