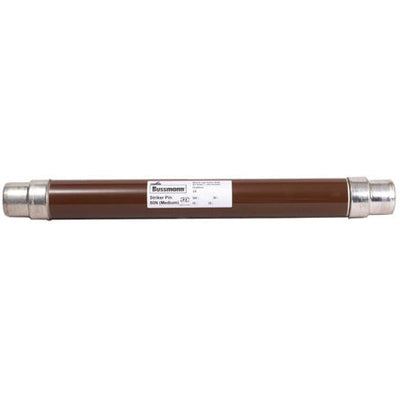

Bussmann 24TDMEJ40 - DIN Medium Voltage Fuse 40A (24kV, 50kA AIC)

Bussmann 24TDMEJ40 is a medium voltage DIN-type fuse designed for high-voltage circuit protection in industrial applications. It features a 24kV voltage rating and 40A current rating with a 50kA interrupting capacity at 24kV, housed in a compact 2-inch diameter barrel construction weighing 5 lb. The R-class fuse meets DIN standards for reliable overcurrent protection in demanding environments. Typical applications include transformer protection, motor circuits, and power distribution systems in utility and industrial settings.

Key Features & Specifications

• Type: DIN-style medium voltage fuse with single-barrel design
• Voltage Rating: 24000V AC
• Current Rating: 40A
• Dimensions: 2" diameter
• Standards: DIN compliance
• Applications: Industrial power distribution, transformer protection
• AIC rating: 50kA@24kV
• Class Rating: R
• Weight: 5 lb
• Barrels: 1

Product Identification

• UPC: 05171218634
• GTIN: 00051712186346
