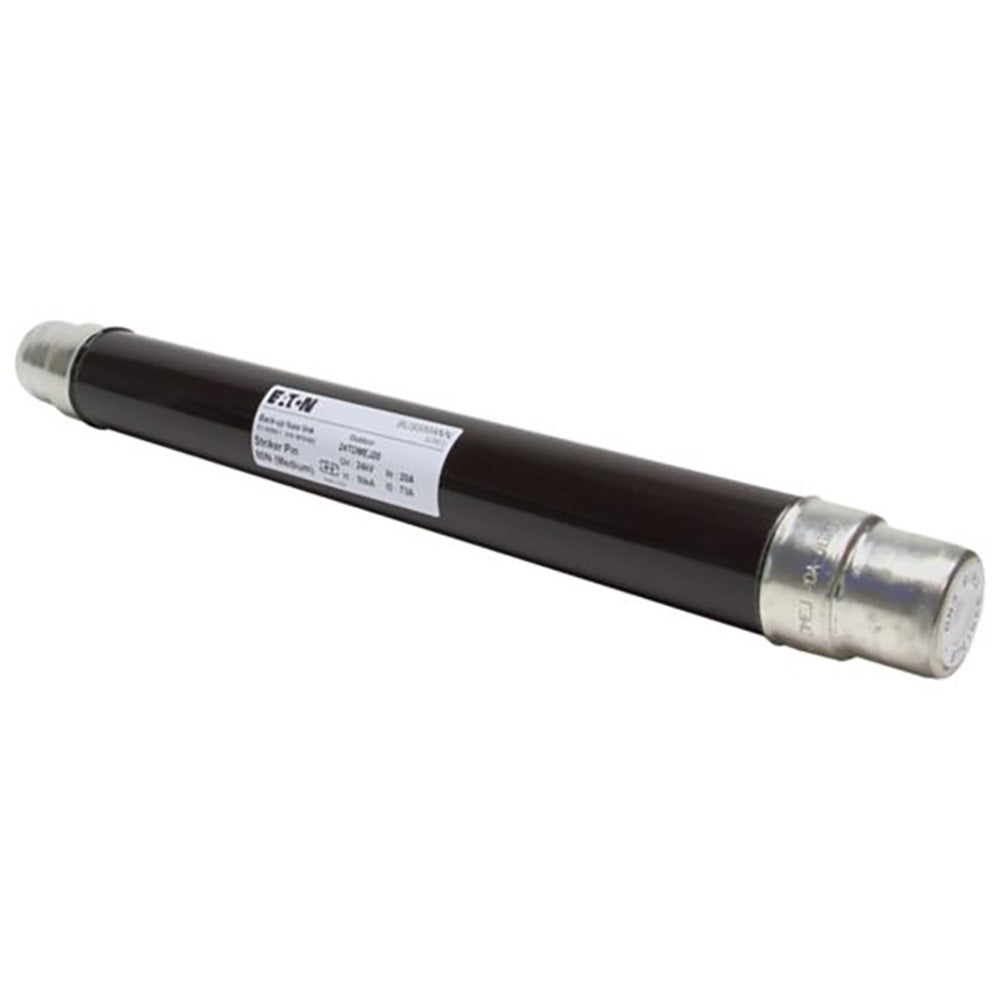

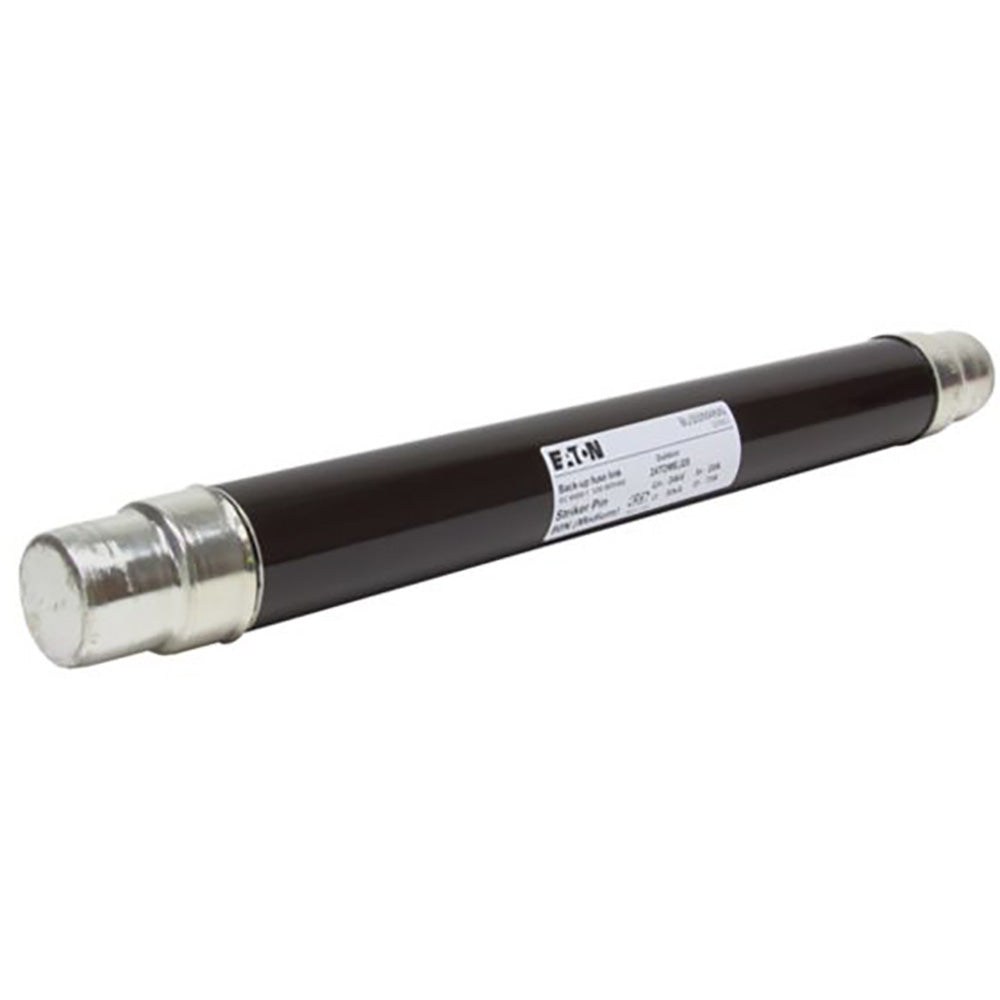

Bussmann 24TDMEJ20 - Medium Voltage Fuse 20A 24kV (Class R)

Bussmann
Price
Save $-1,304.18
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 24TDMEJ20 is a medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides a 20A current rating and a 24kV voltage rating, with an interrupting capacity of 50kA to safely clear high-level faults. The fuse features a single-barrel, DIN-style construction with dimensions of 442 mm x 54 mm x 51 mm and a Class R rating for current-limiting performance and rejection of lower-class fuses. It is engineered to meet stringent industry standards for medium voltage applications, ensuring reliable protection for transformers, motors, and feeder circuits in utility and industrial settings.

Key Features & Specifications
  • Type: DIN-style, single-barrel, medium voltage current-limiting fuse
  • Voltage Rating: 24000V AC
  • Current Rating: 20A
  • Dimensions: 442 mm x 54 mm x 51 mm (L x H x W)
  • Standards: DIN
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • Class Rating: R
  • AIC rating: 50kA @ 24kV
  • Barrels: 1


Product Identification
  • UPC: 005171218631
  • GTIN: 00051712186315
