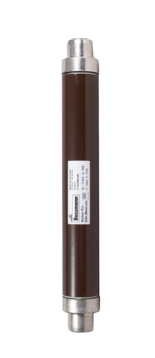

Brush 24SFMSJ40 - Medium Voltage Fuse 40A (24kV Class E)

The Brush 24SFMSJ40 is a Class E medium voltage fuse designed for circuit protection in industrial power distribution systems. It features a 24,000V AC voltage rating and 40A current rating for reliable overcurrent protection in demanding applications. Constructed with a single-barrel DIN connection design, this fuse measures 2 inches in diameter with 17.4-inch clip center spacing and weighs 13 lb for robust performance. The fuse meets industry standards for medium voltage applications requiring Class E protection. Typical applications include industrial switchgear, motor control centers, and power distribution equipment where high-voltage circuit interruption is critical.

Key Features & Specifications

• Type: Medium voltage fuse, Class E rating, single-barrel construction
• Voltage Rating: 24,000V AC
• Current Rating: 40A
• Dimensions: 2" diameter, 17.4" clip center spacing
• Standards: Class E fuse classification
• Applications: Industrial switchgear, motor control centers, power distribution systems
• Connection: DIN style
• Barrels: 1
• Class Rating: E
• Weight: 13 lb
