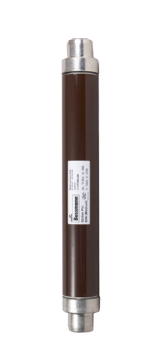

Brush 24SDMSJ16 - Medium Voltage Fuse 16A (Class E, 24000V)
Brush 24SDMSJ16 - Medium Voltage Fuse 16A (Class E, 24000V)

Brush 24SDMSJ16 - Medium Voltage Fuse 16A (Class E, 24000V)

Brush
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Brush 24SDMSJ16 is a medium voltage fuse designed for industrial circuit protection applications requiring reliable overcurrent protection. This DIN-connected fuse operates at 24000V with a 16A current rating, providing robust electrical protection in demanding environments. The single-barrel construction features a 2-inch diameter cylindrical design with 17.4-inch clip center spacing and weighs 6 lb for stable mounting. Engineered to meet Class E rating standards, this fuse ensures compliance with industrial safety requirements for medium voltage systems. Typical applications include industrial power distribution, motor control centers, and medium voltage switchgear where dependable circuit protection is critical.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, single barrel construction
  • Voltage Rating: 24000V
  • Current Rating: 16A
  • Dimensions: 2-inch diameter
  • Standards: Class E rated
  • Applications: Industrial power distribution, motor control centers, medium voltage switchgear
  • Connection: DIN
  • Barrels: 1
  • Clip Center: 17.4 inches
  • Weight: 6 lb
