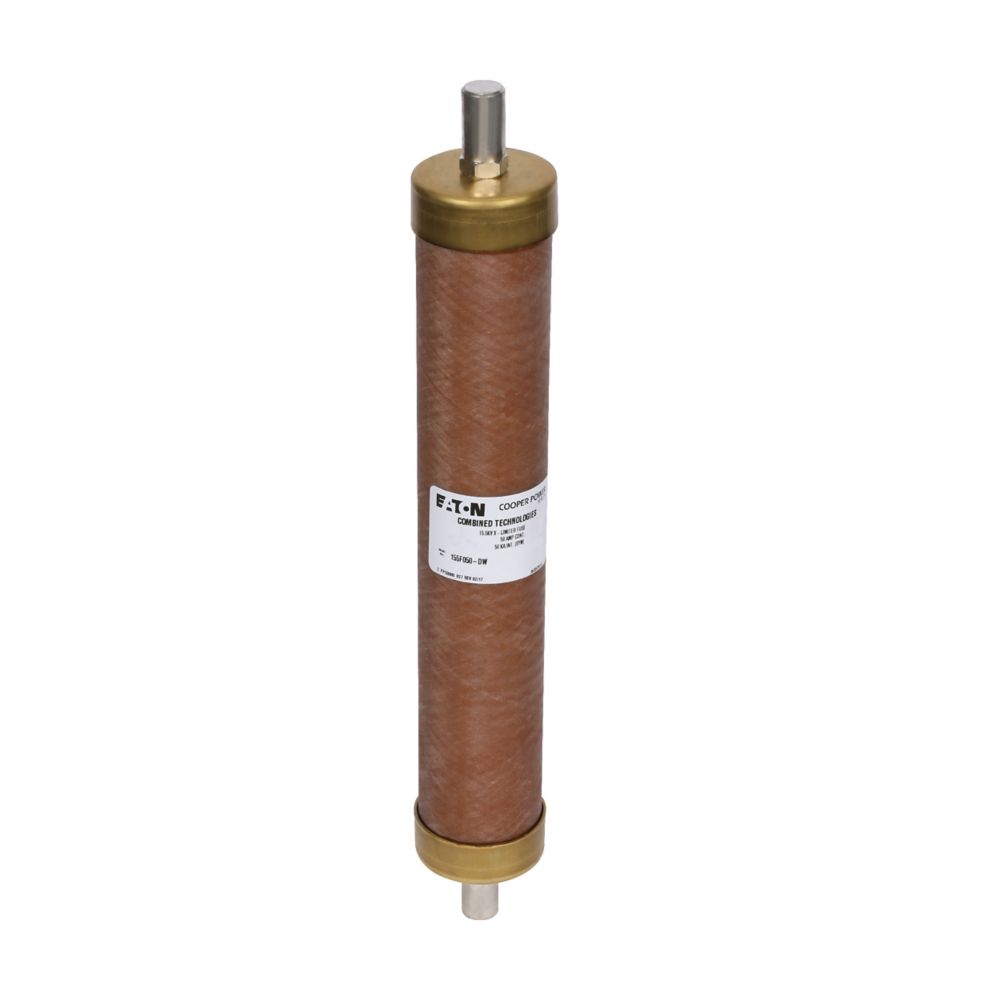

Eaton 23F050HD2A - Medium Voltage Fuse 23kV/50A (Single-Barrel Current-Limiting)

Eaton 23F050HD2A is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 23kV voltage rating and 50A current rating, providing reliable overcurrent protection for medium-voltage applications. The fuse has a robust single-barrel construction with a 2-inch diameter and weighs 15 lb, engineered for durability in harsh environments. It meets industry standards for medium-voltage protection, including ANSI/IEEE compliance. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with special connection
• Voltage Rating: 23000V AC
• Current Rating: 50A
• Dimensions: 2-inch diameter
• Weight: 15 lb
• Construction: Single-barrel design
• Standards: ANSI/IEEE compliant
• Applications: Transformer protection, motor circuits, feeder protection
