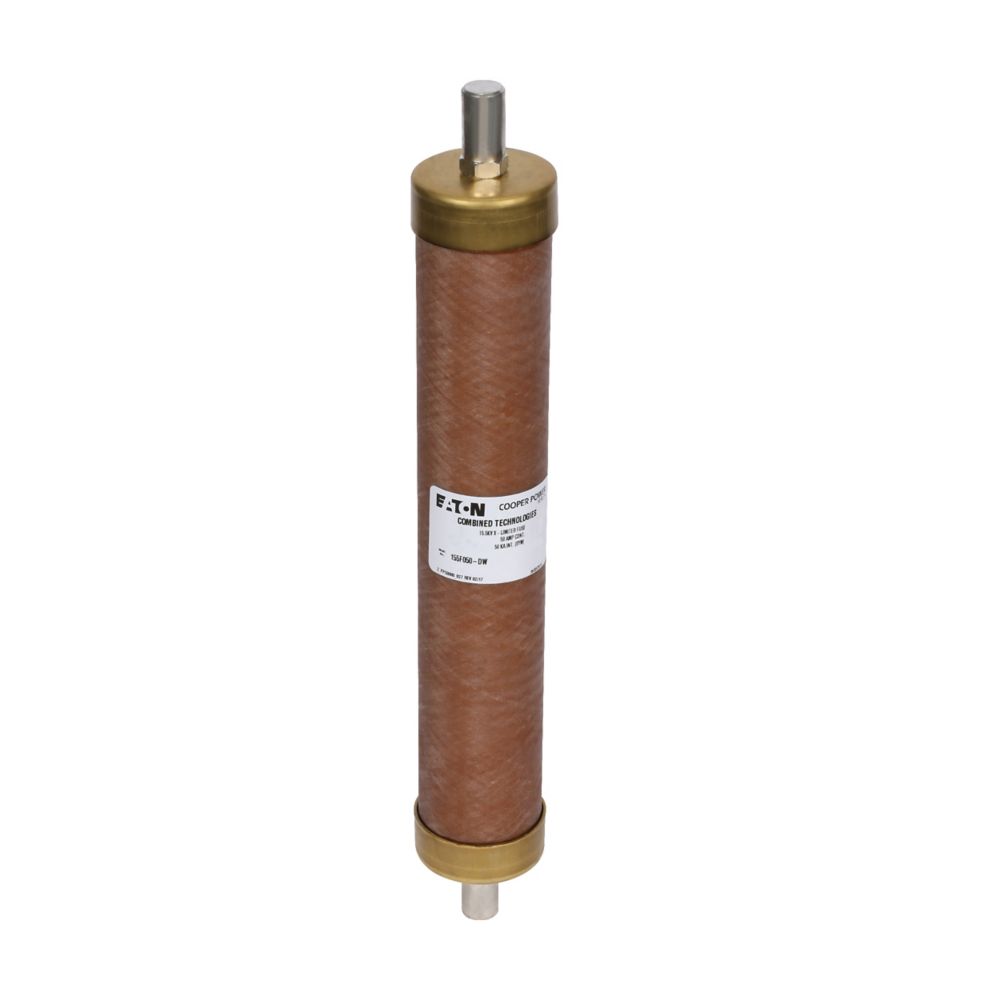

Eaton 23F020HD2A - Medium Voltage Fuse 20A 23kV (Single Barrel Construction)

Eaton 23F020HD2A is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This single-barrel fuse features a 23 kV voltage rating and 20A current rating, providing reliable overcurrent protection for medium voltage applications. The unit features a 2-inch diameter construction with specialized connection terminals and weighs 5 lb for robust industrial installation. Manufactured to meet industry standards for medium voltage protection devices, this fuse is suitable for use in motor control centers, transformer protection, and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single barrel construction
• Voltage Rating: 23,000V AC
• Current Rating: 20A
• Dimensions: 2-inch diameter
• Weight: 5 lb
• Connection: Special terminal configuration
• Barrels: 1
• Item Subcategory: Medium Voltage
• Applications: Industrial power systems, motor control centers, transformer protection

Product Identification

• Manufacturer: Eaton
• Model: 23F020HD2A
