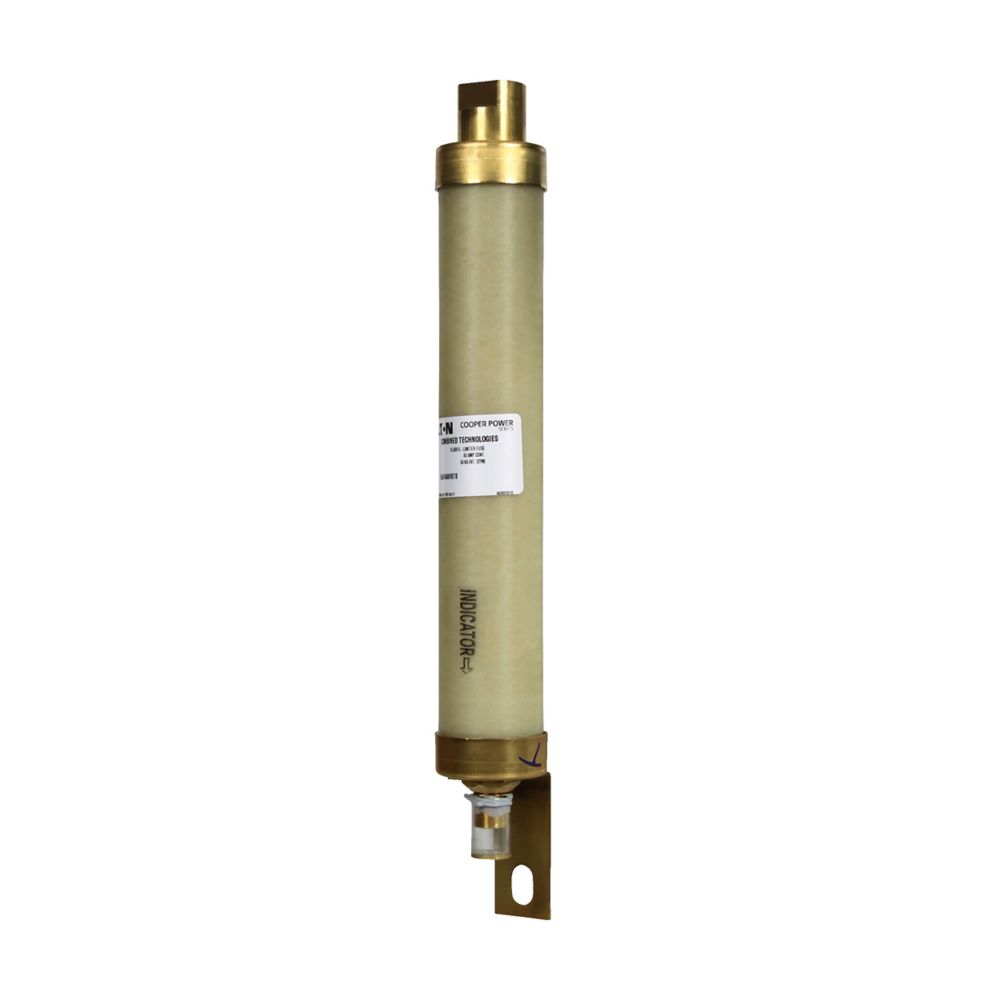

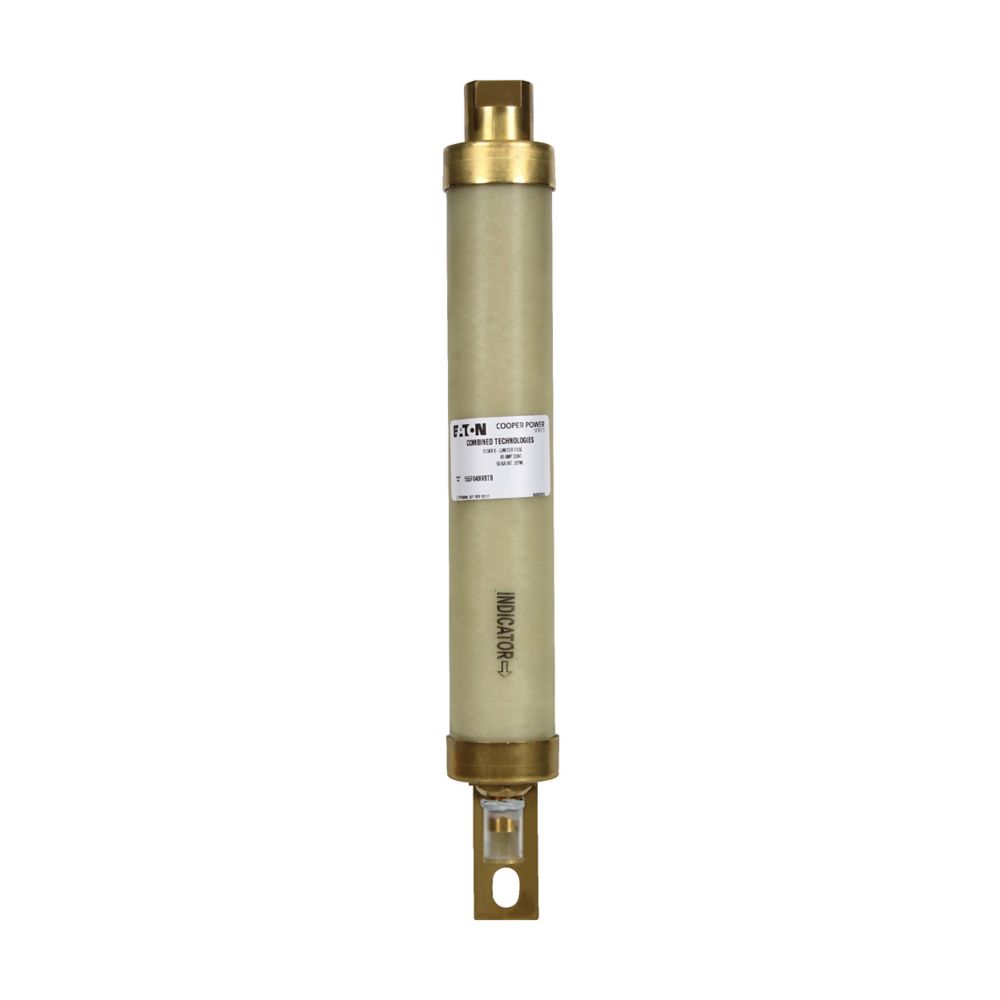

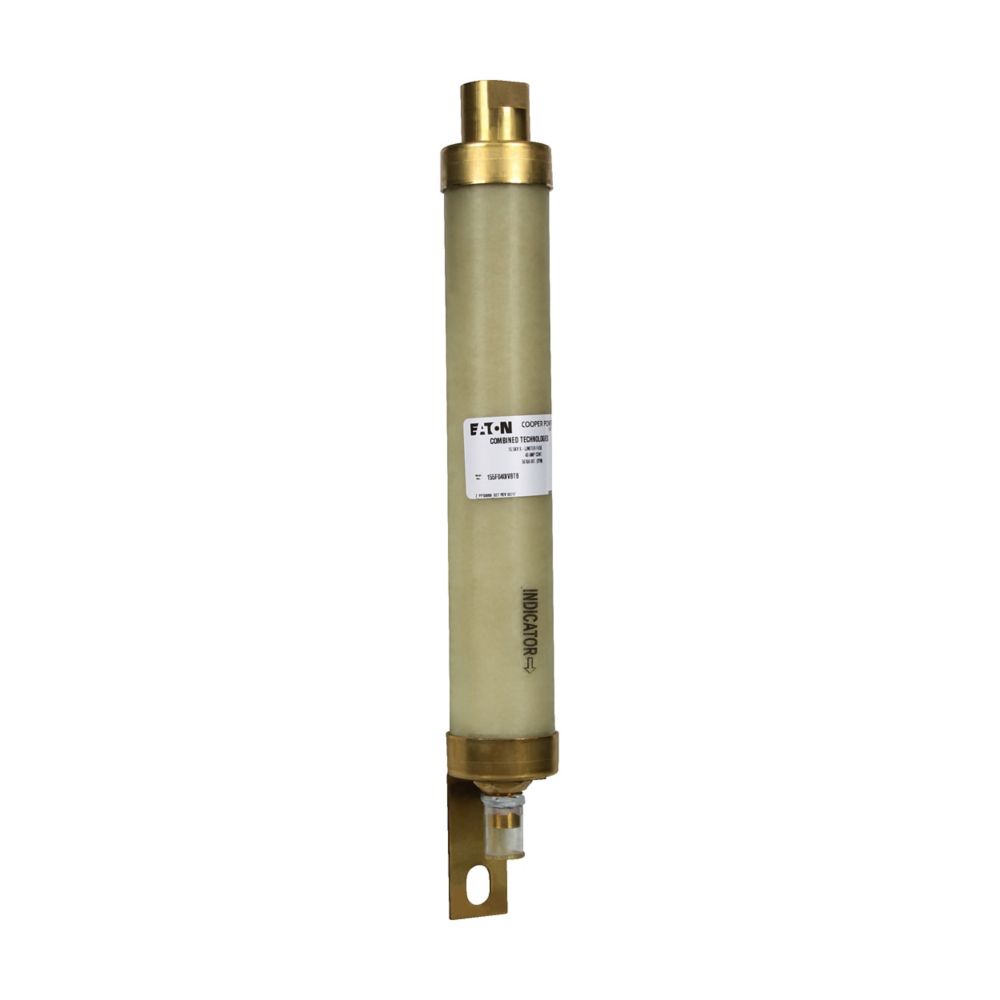

Eaton 23F020-IVBTB - Medium Voltage Fuse 23kV 20A (Special Connection)

Eaton 23F020-IVBTB is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. Rated for 23,000V AC with a 20A current capacity, this single-barrel fuse features a special connection design and robust 2-inch diameter construction. The fuse meets stringent industry standards for medium-voltage applications, including ANSI/IEEE compliance. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with quartz sand filler
• Voltage Rating: 23,000V AC
• Current Rating: 20A
• Dimensions: 2" diameter
• Weight: 5 lb
• Connection: Special termination
• Barrels: Single-barrel construction
• Standards: ANSI/IEEE compliant
• Applications: Industrial power systems, transformer protection, motor circuits
