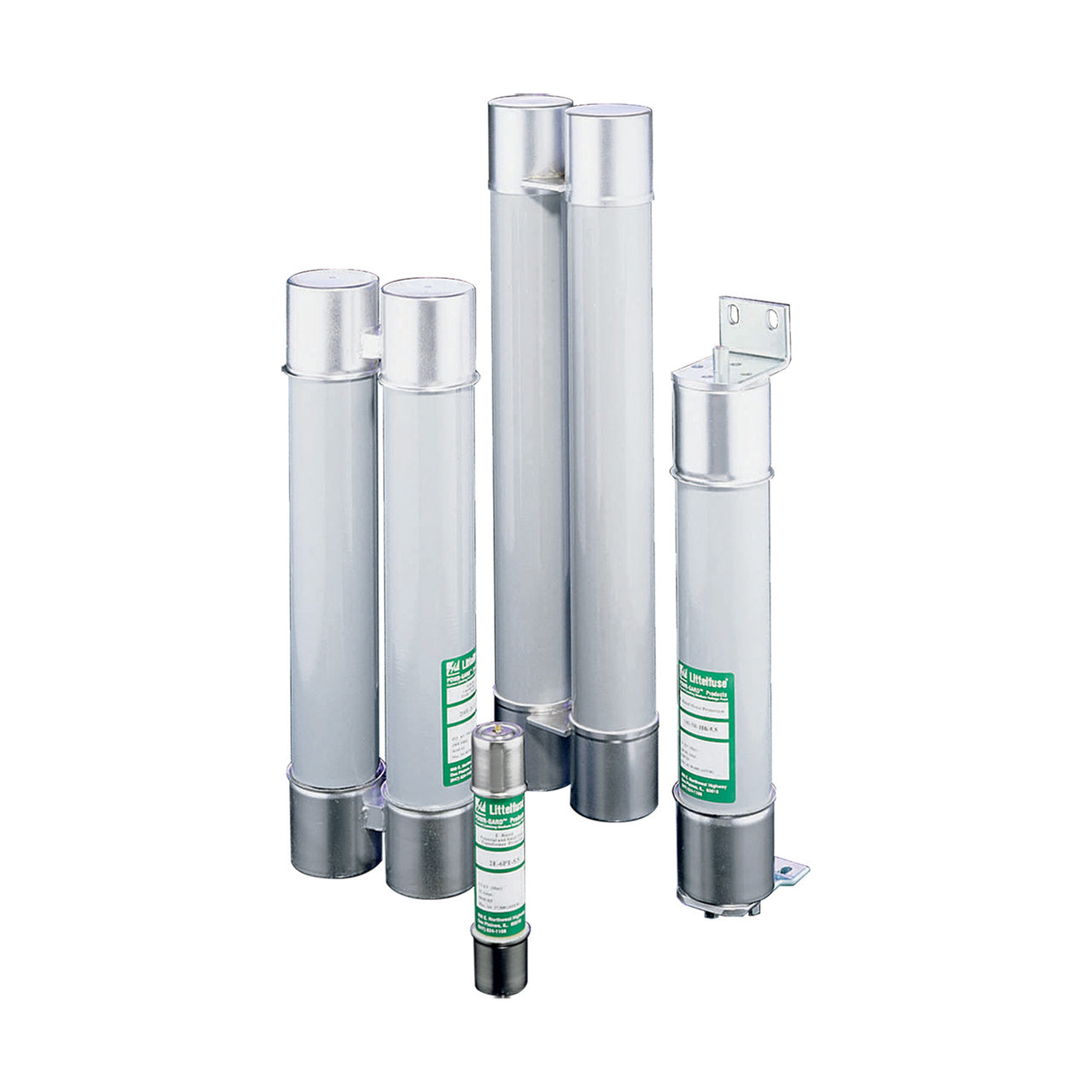

Littelfuse 23012R1C8.25 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This R-rated fuse features a 230A current rating and 8250V voltage rating with an 80kA interrupting capacity at 8.25kV for reliable fault protection. The single-barrel construction measures 3 inches in diameter with 12-inch clip center spacing and weighs 9 pounds for robust performance. As part of the Powr-Gard family, it meets industry standards for medium voltage applications including motor protection and transformer circuits in utility and industrial settings.
Key Features & Specifications
Type: R-rated medium voltage current-limiting fuse, single barrel construction
Voltage Rating: 8250V AC
Current Rating: 230A
Dimensions: 3" diameter, 12" clip center spacing
Standards: Meets industry standards for medium voltage protection
Applications: Industrial power systems, motor protection, transformer circuits
