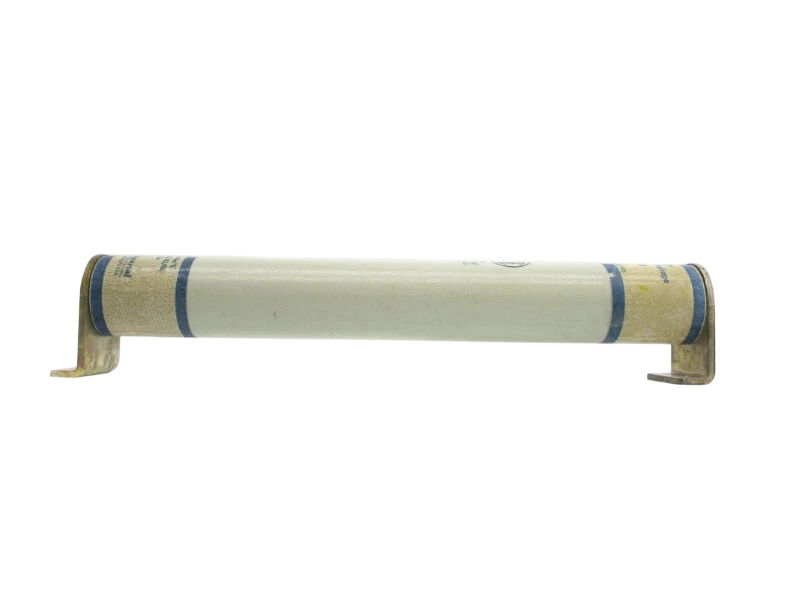

Cutler Hammer 225-007-976 - Class E Medium Voltage Fuse 100A 15.5kV (50kA AIC)

Cutler Hammer 225-007-976 is a medium voltage current-limiting fuse from the Amp-Trap family, engineered to provide reliable overcurrent and short-circuit protection in demanding electrical systems. It features a 100A current rating and a 15.5kV voltage rating, ensuring robust performance in high-voltage applications. The fuse is constructed as a single-barrel unit with a 3-inch diameter and utilizes a clip-lock connection system with a 21.25-inch clip center for secure mounting. This Class E fuse complies with industry standards for medium-voltage protection and carries a 50kA interrupting rating at 15.5kV. It is typically applied in industrial power distribution, motor circuits, and transformer protection where high fault current interruption is critical.

Key Features & Specifications

• Type: Medium Voltage, Current-Limiting, Amp-Trap Family, Single Barrel
• Voltage Rating: 15500V AC
• Current Rating: 100A
• Dimensions: 3" Diameter, 21.25" Clip Center
• Standards: Class E
• Applications: Industrial Power Distribution, Motor Protection, Transformer Protection
• AIC rating: [email protected]
• Connection: Clip-Lock
• Barrels: 1
• Weight: 16 lb
