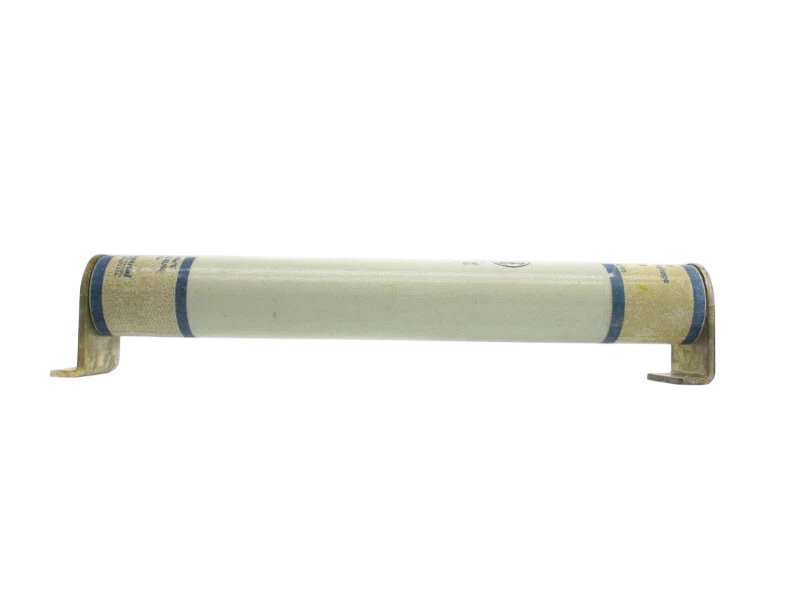

Cutler Hammer 225-007-971 - Class E Medium Voltage Fuse 30A (50kA AIC @ 15.5kV)
Cutler Hammer 225-007-971 - Class E Medium Voltage Fuse 30A (50kA AIC @ 15.5kV)

Cutler Hammer 225-007-971 - Class E Medium Voltage Fuse 30A (50kA AIC @ 15.5kV)

Cutler Hammer
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler Hammer 225-007-971 is a medium voltage Amp-Trap fuse designed to provide reliable overcurrent protection in industrial power distribution systems. It features a 30A current rating and a 15.5kV voltage rating, engineered to interrupt fault currents up to 50kA at its rated voltage. The fuse is constructed as a single-barrel Class E unit with a 3-inch diameter and utilizes a Clip-Lock connection system with an 18.25-inch clip center spacing for secure mounting. This 15 lb fuse complies with industry standards for medium voltage protection applications, making it suitable for use in motor control centers, transformers, and feeder circuits where high-interrupting capacity is required.

Key Features & Specifications
  • Type: Medium Voltage Amp-Trap Class E Current Limiting Fuse, Single Barrel
  • Voltage Rating: 15,500V AC
  • Current Rating: 30A
  • Dimensions: 3" Diameter
  • Standards: Class E Rating
  • Applications: Industrial Power Distribution, Motor Control Centers, Transformer Protection
  • AIC Rating: 50kA @ 15.5kV
  • Connection: Clip-Lock
  • Barrels: 1
  • Clip Center: 18.25"
  • Weight: 15 lb
  • Fuse Class: E
