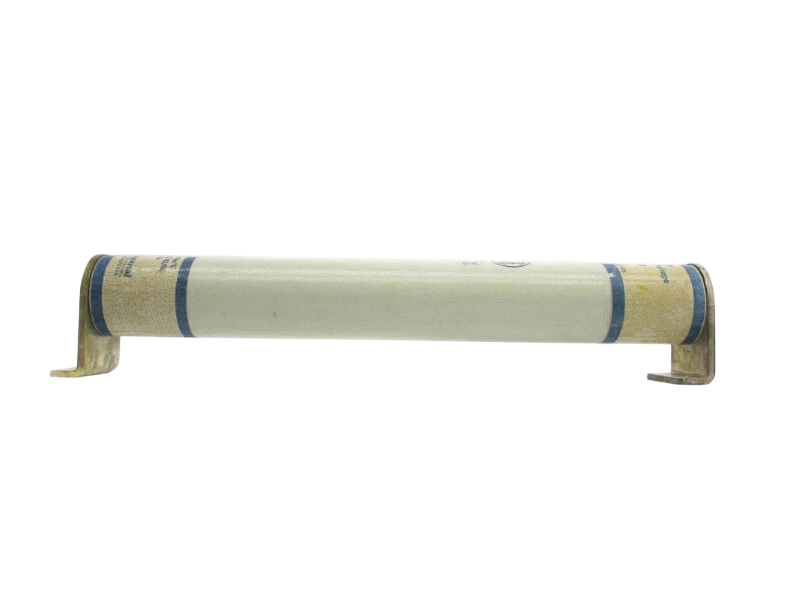

Cutler Hammer 225-007-970 - Class E Medium Voltage Fuse 25A (15.5kV, 50kA AIC)
Cutler Hammer 225-007-970 - Class E Medium Voltage Fuse 25A (15.5kV, 50kA AIC)

Cutler Hammer 225-007-970 - Class E Medium Voltage Fuse 25A (15.5kV, 50kA AIC)

Cutler Hammer
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer 225-007-970 is a medium voltage current-limiting fuse from the Amp-Trap family designed to provide reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 25A current rating and a 15.5kV voltage rating, engineered to interrupt fault currents up to 50kA. The fuse is constructed as a single-barrel unit with a 3-inch diameter and utilizes a robust Clip-Lock connection system with an 18.25-inch clip center spacing for secure mounting. This Class E fuse complies with industry standards for medium voltage protection applications, making it suitable for use in motor control centers, transformers, and feeder circuits where high-interrupting capacity and current limitation are required.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Amp-Trap Family, Single Barrel
  • Voltage Rating: 15500V AC
  • Current Rating: 25A
  • Dimensions: 3-inch diameter
  • Standards: Class E
  • Applications: Industrial power distribution, motor protection, transformer protection
  • AIC rating: [email protected]
  • Connection: Clip-Lock
  • Barrels: 1
  • Clip Center: 18.25 inches
  • Weight: 15 lb
