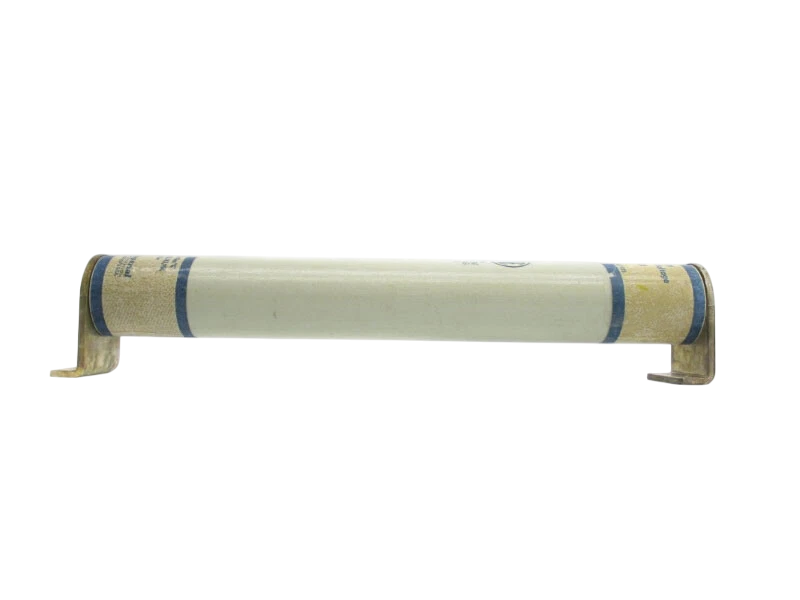

Cutler Hammer 225-007-955 - Class E Medium Voltage Fuse 600A 5500V (50kA AIC)

Cutler Hammer 225-007-955 is a medium voltage Amp-Trap fuse designed for high-interrupting capacity circuit protection in industrial power systems. It features a 600A current rating and a 5500V voltage rating, providing robust overcurrent protection. The fuse is constructed with a 3-inch diameter, two-barrel design and utilizes a clip-lock connection system with a 21.25-inch clip center spacing for secure mounting. This Class E rated fuse complies with industry standards for medium voltage applications and offers a 50kA interrupting rating at 15.5kV. It is typically deployed in industrial facilities, utility substations, and commercial power distribution systems where reliable high-voltage protection is critical.

Key Features & Specifications

• Type: Medium Voltage Amp-Trap Fuse, Class E, 2-barrel construction
• Voltage Rating: 5500V
• Current Rating: 600A
• Dimensions: 3" diameter, 21.25" clip center spacing
• Standards: Class E fuse rating
• Applications: Industrial power systems, utility substations, commercial distribution
• AIC rating: [email protected]
• Connection: Clip-Lock
• Barrels: 2
• Weight: 45 lb
• Family: Amp-Trap
• Item Subcategory: Medium Voltage
