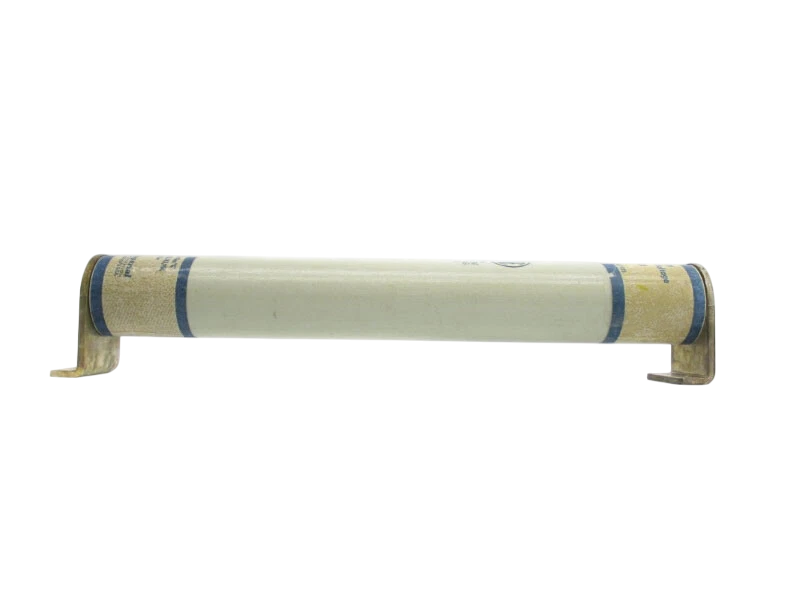

The Cutler Hammer 225-007-949 is a medium voltage Amp-Trap fuse designed to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 5500V voltage rating and a 200A current rating, ensuring robust performance in demanding applications. The fuse is constructed as a single-barrel unit with a 3-inch diameter and utilizes a clip-lock connection system with a 21.25-inch clip center for secure mounting. This Class E fuse complies with industry standards for medium-voltage protection and offers an interrupting rating of 50kA at 15.5kV. It is typically applied in industrial power distribution, motor circuits, and feeder protection where high interrupting capacity is required.

Key Features & Specifications
  • Type: Medium Voltage Amp-Trap Fuse, Class E, Single Barrel
  • Voltage Rating: 5500V AC
  • Current Rating: 200A
  • Dimensions: 3" Diameter
  • Standards: Industry Standards for Medium-Voltage Protection
  • Applications: Industrial Power Distribution, Motor Circuits, Feeder Protection
  • AIC rating: 50kA @ 15.5kV
  • Connection: Clip-Lock
  • Barrels: 1
  • Clip Center: 21.25 inches
  • Class Rating: E
  • Weight: 16 lb
