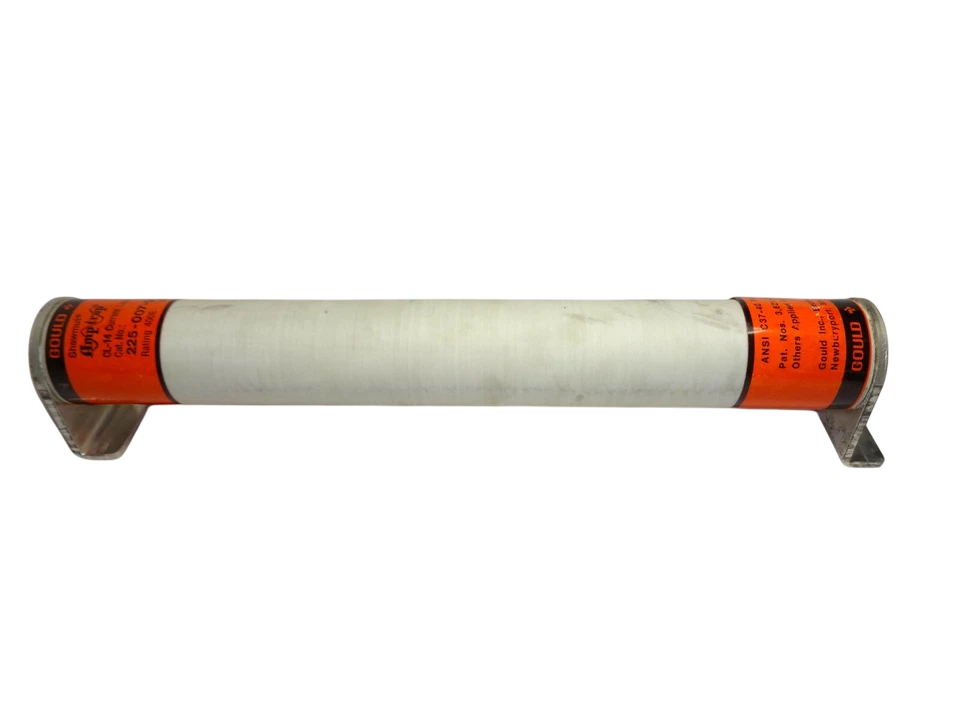

Mersen 225-007-600S - Medium Voltage Fuse 5500V/600A (Class E Bolt-In)

Mersen 225-007-600S is a medium voltage fuse designed for high-current circuit protection in industrial power distribution systems. It features a 5500V AC voltage rating and 600A current rating, providing robust overcurrent protection for demanding applications. The fuse has a bolt-in connection type with three barrels, a 3-inch diameter, and a 21.25-inch clip center spacing, constructed to Class E standards for reliable performance. It complies with industry safety requirements for medium voltage applications. Typical uses include motor control centers, transformers, and switchgear in utility and heavy industrial environments.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse with bolt-in connection
• Voltage Rating: 5500V AC
• Current Rating: 600A
• Dimensions: 3" diameter, 21.25" clip center
• Standards: Class E rated
• Applications: Industrial power distribution, motor protection, transformer circuits
• Connection: Bolt-in
• Barrels: 3
• Weight: 32 lb
• Class Rating: E
