2090-XXNFMF-S30 Allen-Bradley Kinetix 2090 Motor Feedback Cable, 30m, Threaded DIN to Flying Leads

2090-XXNFMF-S30 Allen-Bradley Kinetix 2090 Motor Feedback Cable, 30m, Threaded DIN to Flying Leads

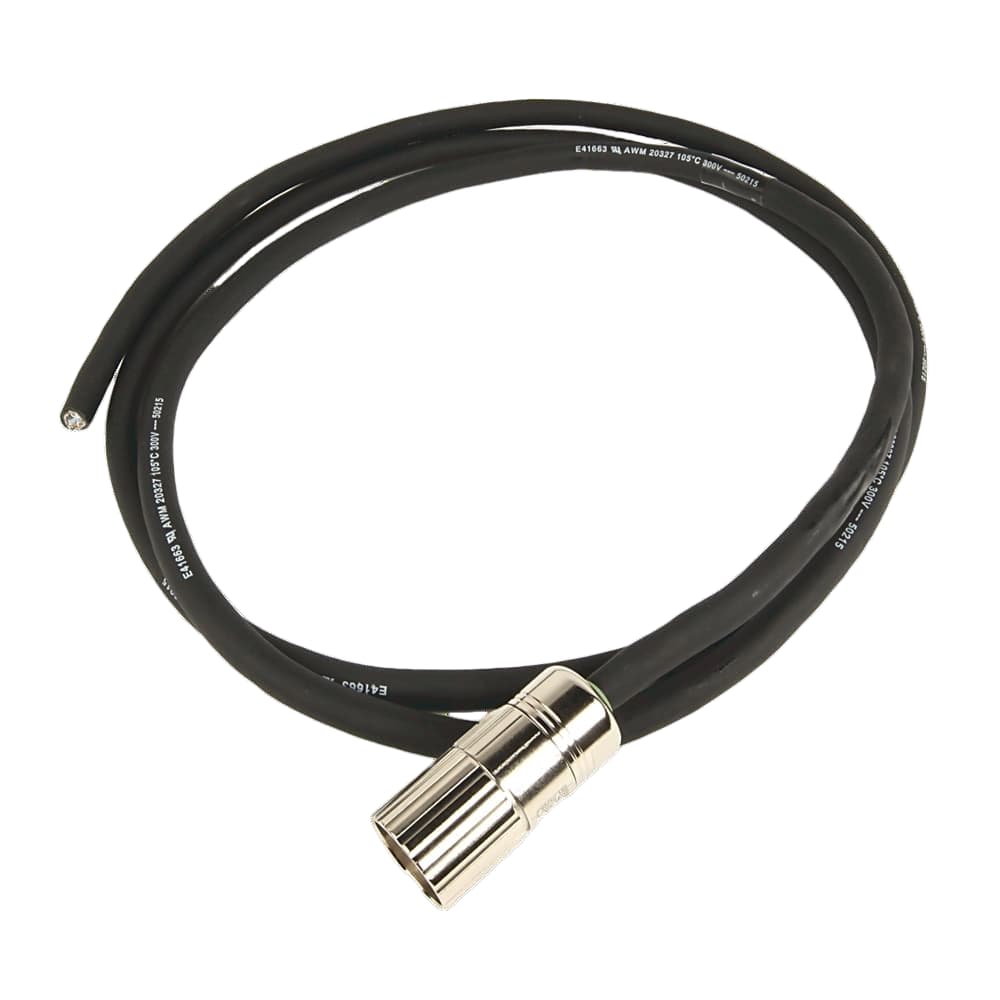

Trying to match a feedback cable to your Kinetix servo drive system? The 2090-XXNFMF-S30 is the part you are looking for if your setup calls for a 30 meter (98.4 ft) cable with a threaded DIN connector on the motor side and bare flying leads on the drive side.

In plain terms, this cable carries the position and speed signals from the encoder inside your Allen-Bradley servo motor or actuator back to the Kinetix drive that controls it. It is a standard, non-flex cable, meaning it is meant to be installed and left in place rather than flexed repeatedly as part of a moving cable track. The motor-end connector is a threaded DIN, or "M4," fitting that screws on and also works with SpeedTec-ready motor connectors when an O-ring is used. The drive end has flying leads, so it needs a breakout connector kit to terminate at the drive.

Common Applications

• Connecting an Allen-Bradley servo motor or actuator to a Kinetix servo drive
• Feedback wiring for high-resolution digital encoders
• Feedback wiring for incremental encoders
• Replacing a worn, damaged, or too-short feedback cable

Key Features

• Standard, non-flex design: Built for fixed installation, not for moving with the machine.
• Threaded DIN (M4) motor connector: Screws on with 5 to 6 turns and mates only M4-style plugs.
• Broad motor compatibility: Also mates to SpeedTec-ready DIN (M7) motor connectors with an O-ring.
• Flying leads on the drive end: Needs a breakout connector kit for termination at the drive.
• Full 30 m length: One continuous run, no splice needed for standard machine distances.

Specifications

• Catalog Number: 2090-XXNFMF-S30
• Manufacturer: Allen-Bradley (Rockwell Automation)
• Product Family: Kinetix 2090
• Cable Type: Standard, non-flex motor feedback cable
• Motor-end Connector: Threaded DIN, Type 4 (M4)
• Drive-end Termination: Flying leads
• Cable Length: 30 m (98.4 ft)
• Feedback Type: High-resolution or incremental encoder

Product Identification

• UPC: 820919134074

FAQ

What does the 2090-XXNFMF-S30 do?
It carries encoder feedback signals from a servo motor or actuator to a Kinetix servo drive.

Not sure if this fits my motor. How do I check?
Confirm your motor has either a threaded DIN or a SpeedTec-ready DIN connector. This cable's M4 plug mates to both, with an O-ring needed for the SpeedTec-ready connection.

What is on the other end of the cable, at the drive?
Flying leads, meaning bare wire ends that terminate through a breakout connector kit at the drive.

Is this the flexible or standard version?
Standard, non-flex. It is meant to stay in place after installation, not flex repeatedly.

What length is this specific part number?
2090-XXNFMF-S30 is the 30 meter (98.4 ft) length.

Is this a genuine Allen-Bradley part?
Yes, it is manufactured by Allen-Bradley (Rockwell Automation) under the Kinetix 2090 cable family.
